Introducing our new 24V 60W LED Driver (HL-CB6024), designed to power and control your LED strip lights with ease and efficiency. This versatile LED driver features a plastic enclosure with an IP40 rating, providing protection against solid objects but not against liquids.
Thanks to its compact, thin design, this LED driver is an ideal choice for kitchen under cabinet lighting applications, other spaces where size constraints are a concern, and any other lighting application that requires a reliable on/off LED driver.
Key Features:
- Input: 100-240V AC 50/60Hz (universal voltage)
- Output: 24V DC, max of 2500mA (60W maximum)

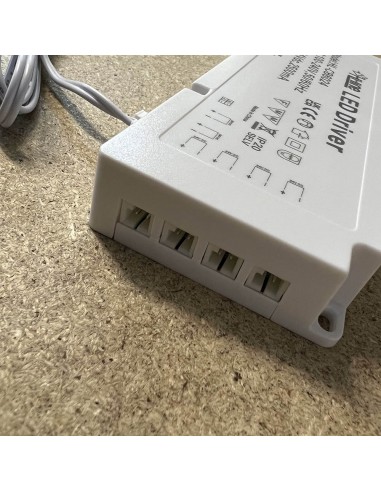

- 6 x 24V outputs, compatible with multiple strip lights (total wattage not exceeding 60W)

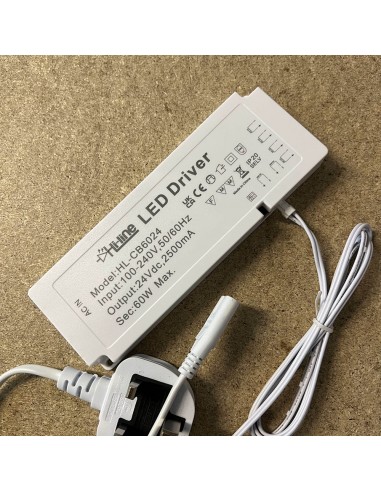

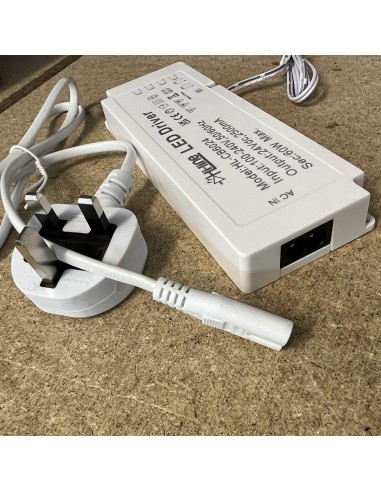

- Supplied with 1 meter UK POWER CORD 2 PIN for mains input
- 1 x DC output connector with 1 meter pre-assembled AWG20 2-core wire and 2-pin plug for easy connection to any of the 6 ports of the LED driver's 24V output (additional output connector sets available for purchase separately)
- Dimmable via optional touch sensor ports for master on/off/dimming control or individual output control; without sensors, this driver functions as a standard on/off LED driver
- Optional single and double door sensor switches for automatic activation in kitchen cabinets, wardrobes, and cupboards
- Compact, thin design perfect for a wide range of applications, including kitchen under cabinet lighting
- SKU: HL-CB6024
- Dimensions: 168mm (W) x 60mm (D) x 20mm (H)
Touch Sensor Options:
- Master Touch Sensor: Control all DC outputs with one sensor for on/off and dimming functionality
- Individual Touch Sensors: Install separate sensors for each DC output, allowing individual control without affecting other outputs
- Single Door Sensor Switch: Automatically activates lights when a single door is opened or closed
- Double Door Sensor Switch: Automatically activates lights when either of two doors is opened or closed
Product Package Includes:
- 1 x Hi-Line Lighting 24V 60W LED Driver (HL-CB6024)
- 1 x 1 meter UK POWER CORD 2 PIN for mains input
- 1 x DC output connector with 1 meter pre-assembled AWG20 2-core wire and 2-pin plug
Please note that touch sensors, door sensor switches, and additional DC output connectors are sold separately.
Warranty:
This product comes with a 3-year warranty, provided it is installed correctly. For example, installing the product inside a water-rated enclosed box may cause it to fail due to inadequate ventilation. Natural ventilation is necessary for the proper functioning of the LED driver.
Life Expectancy:
Although the warranty covers 3 years, the expected life expectancy of this product is more than 7 years, depending on the installation conditions.
