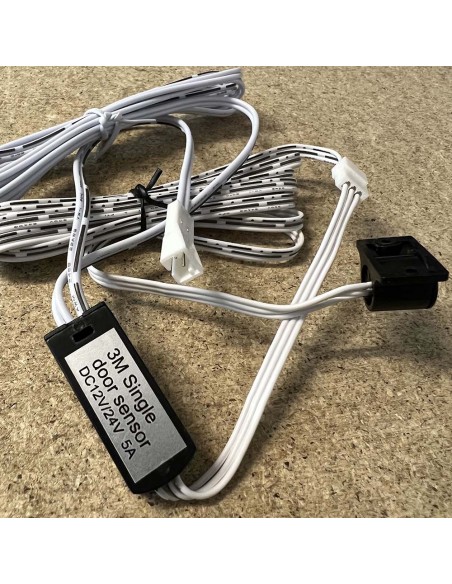

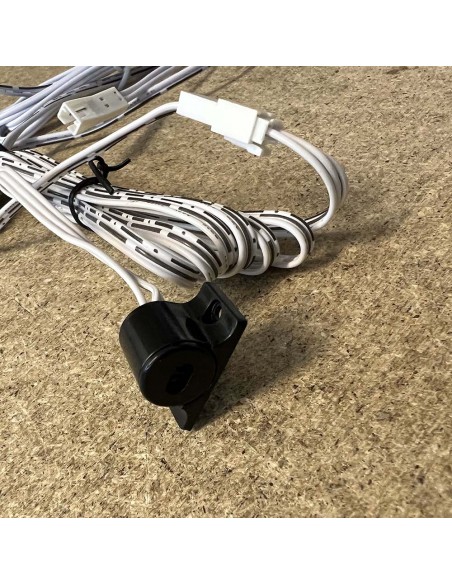

Single Door IR Sensor for LED Drivers – Automatic LED Control
This single door IR sensor provides automatic lighting activation when a cabinet door opens and turns off the LED strip when the door is closed. Designed for wardrobes, kitchen cabinets, and storage units, it delivers a convenient, energy-saving solution with a discreet, modern design.
The sensor operates on 12V or 24V, supporting up to 60W at 12V and 100W at 24V. It is fully compatible with any 24V non-dimmable LED driver. While it offers plug-and-play integration with cabinet LED drivers, it can also be used with standard non-dimmable LED drivers by modifying the wiring. Ensure the connected LED load does not exceed the sensor’s maximum rating.
How to Connect the Sensor
1. Using a Cabinet LED Driver:

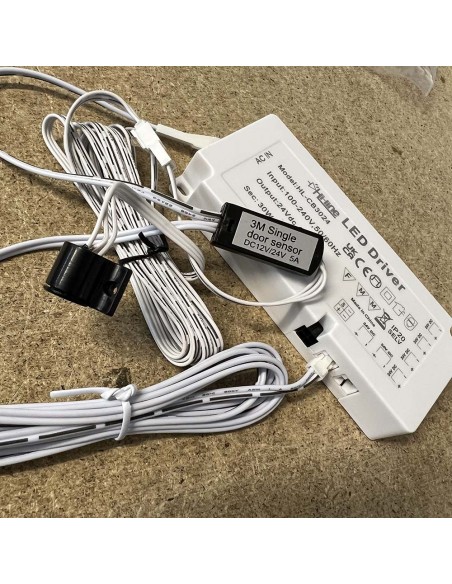

The sensor input plug connects directly to one of the cabinet LED driver's output ports.
2. Using a Standard Non-Dimmable LED Driver:
The sensor input plug must be removed, and the wires manually connected to the output terminals of the LED driver. For a simpler setup, a plug adapter such as the HL-CB1M 1m Plug & Wire Set can be used instead of cutting the plug.
Connecting the Sensor to the LED Strip
The sensor’s output comes with a pre-installed plug, which does not connect directly to LED strips. To complete the setup:
- Use a plug adapter such as the HL-CB1M 1m Plug & Wire Set for a simple, plug-and-play connection.
- Alternatively, cut the output plug and manually wire it to the LED strip.
Installation Details

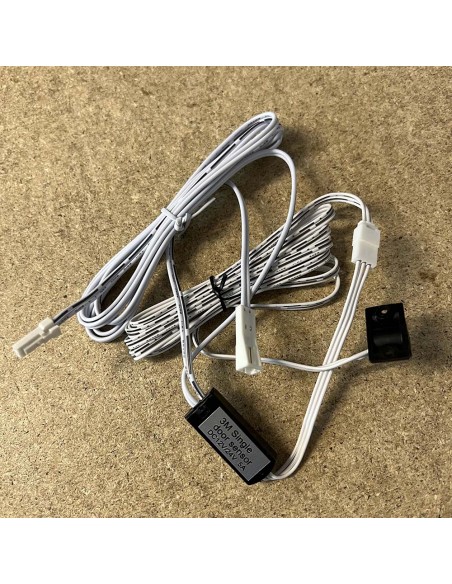

This sensor enables a quick installation with cabinet LED drivers while allowing a manual wiring option for standard LED drivers. It includes a 2m cable for flexible positioning. The built-in infrared detection automatically switches the LED strip on and off depending on door movement, ensuring efficient energy use.
To find all compatible cabinet LED drivers and accessories, visit the Related Products tab on this product page. If using a standard non-dimmable LED driver, you can either cut the plug or use the HL-CB1M plug adapter for an easy installation. Always ensure the total LED load stays within the sensor’s power limits.
