3-Pin IP68 Connector & Protection Box (5-8mm)

Hi-Line Lighting 3-Pin All-in-One Electrical Connector and Protective Case (5-8mm)

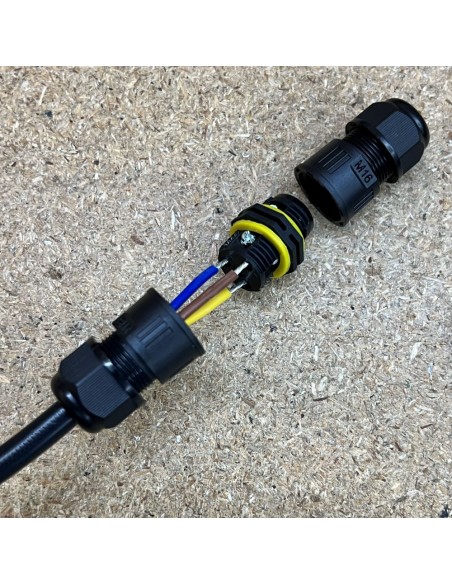

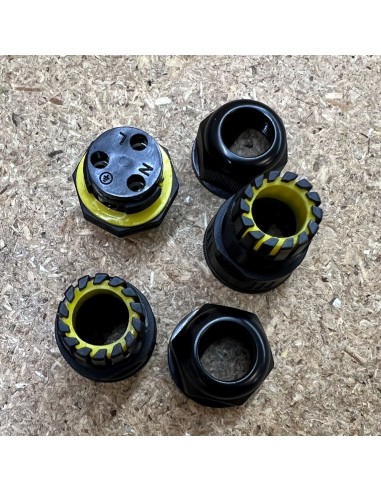

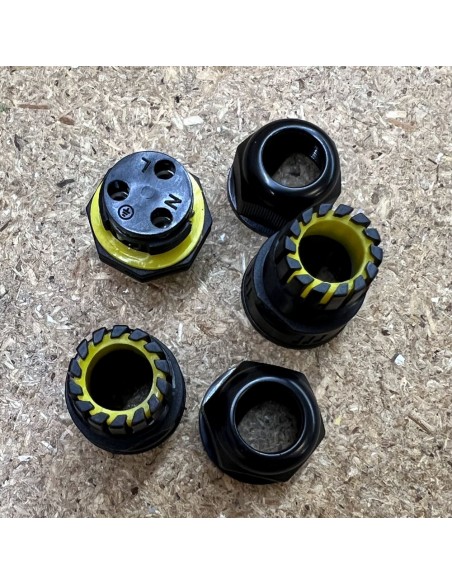

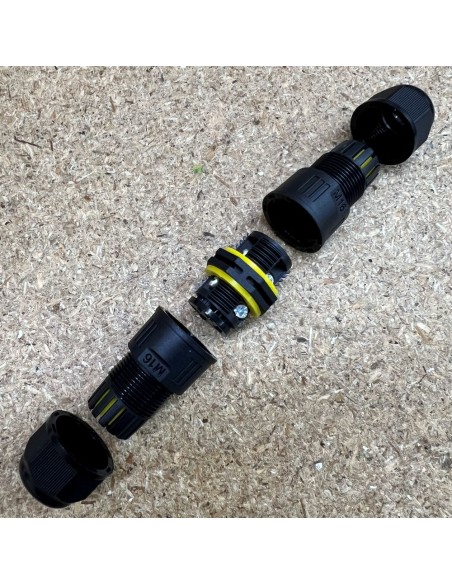

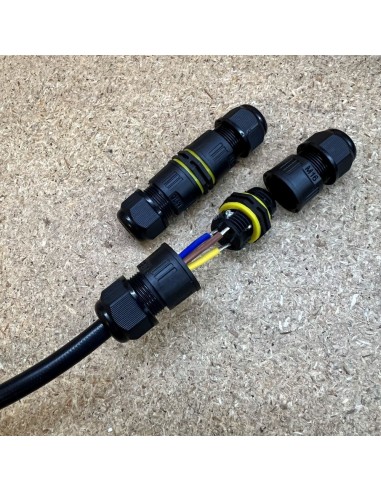

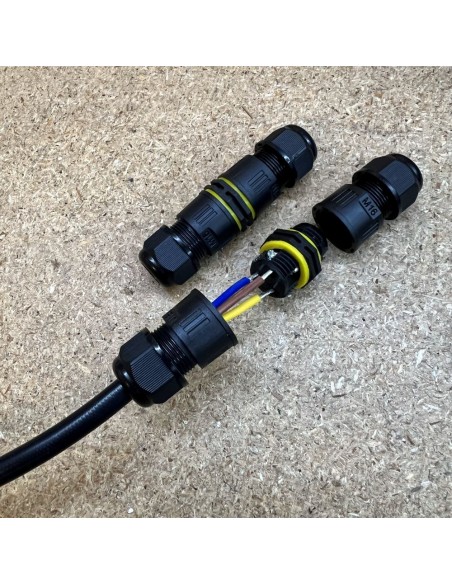

The Hi-Line Lighting 3-Pin All-in-One Electrical Connector and Protective Case is a compact, innovative solution designed to integrate seamlessly with Hi-Line Lighting IP67 LED drivers. This versatile connector ensures secure electrical connections while providing robust protection against environmental factors, eliminating the need for bulky junction boxes and simplifying the installation process.

Engineered to IP68 standards, the connector delivers exceptional protection against dust and water. Achieving full IP68 protection depends on proper installation by experienced professionals to ensure full waterproof sealing.

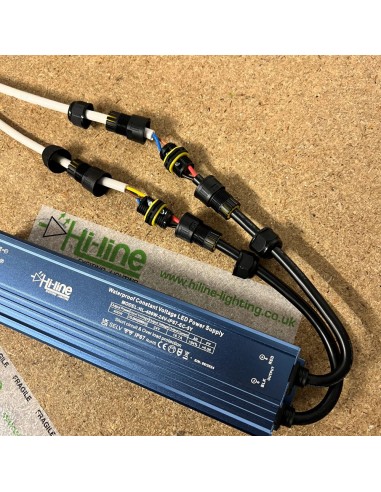

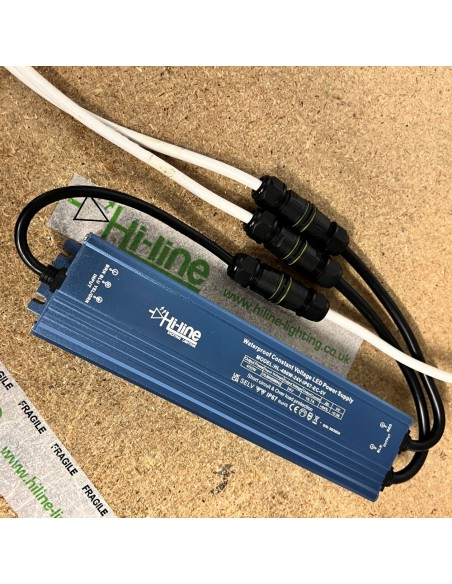

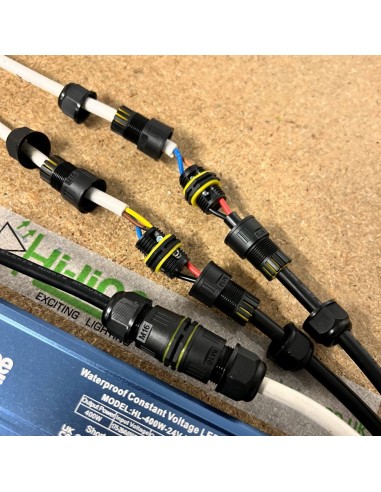

The space-saving design replaces traditional junction boxes, allowing for cleaner, more efficient installations. Supporting cable diameters of 5–8mm and wire sizes from 0.5–1.5 mm², this connector is suitable for both mains input and low-voltage DC output applications. It is particularly well-suited for Hi-Line Lighting IP67 LED drivers and ensures safe, reliable performance for a variety of residential and commercial setups.

Temperature Range and Durability
This connector is built to withstand extreme temperatures, with an operational range of -40°C to 95°C, making it suitable for both high and low-temperature environments. Its flame-retardant construction, using high-quality Nylon PA66 and a silica-gel rubber sealing ring, ensures enhanced safety and durability even in challenging conditions.

Specifications:

• Waterproof Rating: IP68 (dependent on installation)

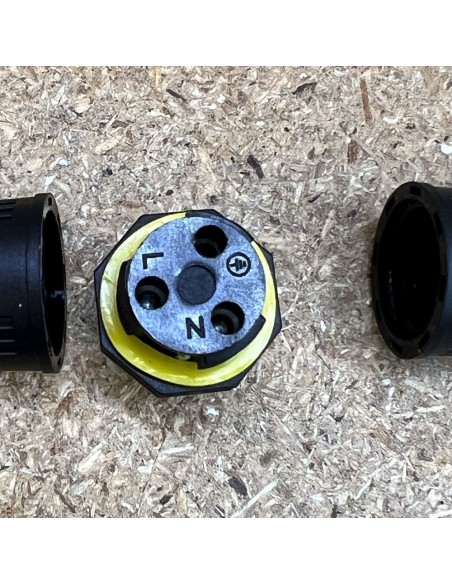

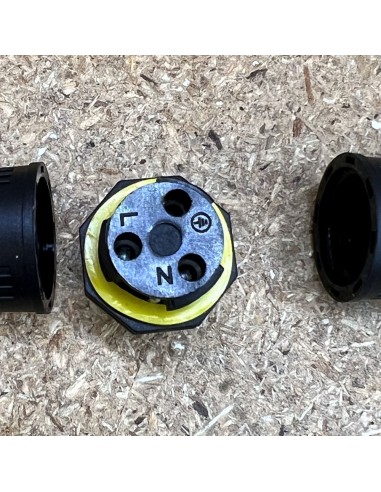

• Pin Configuration: 3P (3 pins)

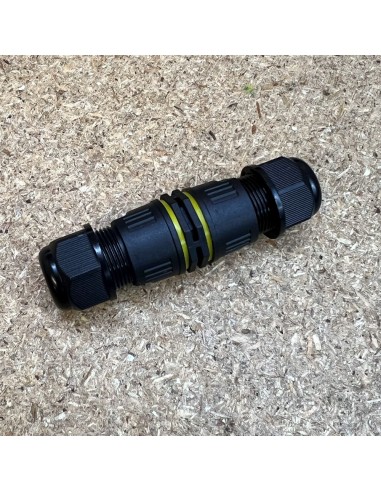

• Overall Length: 64mm
• Connector Body Diameter: 17mm
• Cable Locking Diameter: 5–8mm (Maximum Cable Entry Diameter: 8mm)

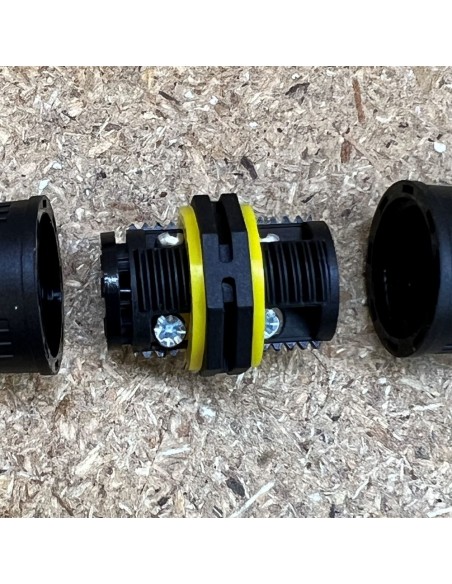

• Wire Range: 0.5–1.5 mm² (screw crimp connections)
• Rated Voltage: ≤400V
• Rated Current: ≤25A (maximum)

This connector is rated for a maximum of 25A, regardless of the voltage (e.g., 12V, 24V, or 230V). Installers must assess the load based on environmental and operating conditions, such as ambient temperature. For example, in high-temperature installations (e.g., 50°C), the load should be derated to avoid exceeding the connector's capabilities and ensure long-term reliability.

Compatibility Note:

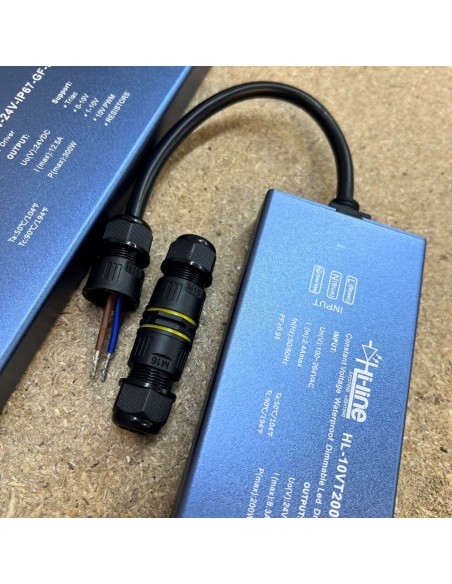

This connector is designed for use with all Hi-Line Lighting IP67 LED drivers, but we recommend testing compatibility with your specific driver model to ensure it meets your installation needs. It is not recommended for underwater use but can be buried in garden applications if correctly installed and sealed.

This innovative 3-pin connector and protective case is the perfect choice for professionals seeking a compact, reliable, and waterproof solution that simplifies installations while ensuring robust electrical connections and environmental protection without the need for bulky junction boxes.
