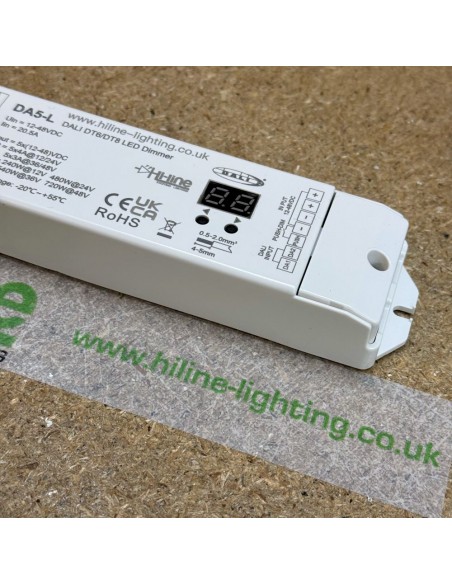

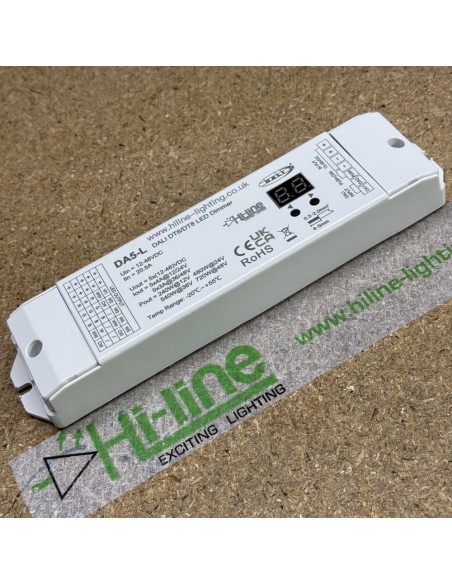

The Hi-Line DA5-L DALI-2 Certified 5-Channel Constant Voltage LED Controller is the ultimate solution for advanced and flexible LED lighting control. Supporting both DT6 and DT8 protocols, this controller seamlessly integrates into DALI systems, offering precise management of single-colour, tunable white (CCT), RGB, RGBW, and RGB+CCT LED strips.
Its innovative design includes compatibility with push switch controls, enabling simple local on/off switching, brightness adjustment, and colour temperature or RGB tuning—perfect for spaces requiring both automated and manual control options.
Equipped with constant voltage output and advanced PWM dimming technology, this controller ensures smooth, flicker-free lighting across all applications. With its intuitive digital display, users can manually or automatically assign DALI addresses for quick and precise configuration.
Key Features:
- DALI-2 Certified: Fully compliant with IEC 62386-102, 207, and 209 standards for seamless system integration.
- UKCA and CE Certified: Meets UK and EU safety and quality standards.
- 5-Channel Output: Powers up to 240W@12V, 480W@24V, 540W@36V, and 720W@48V, ensuring stable and robust operation.

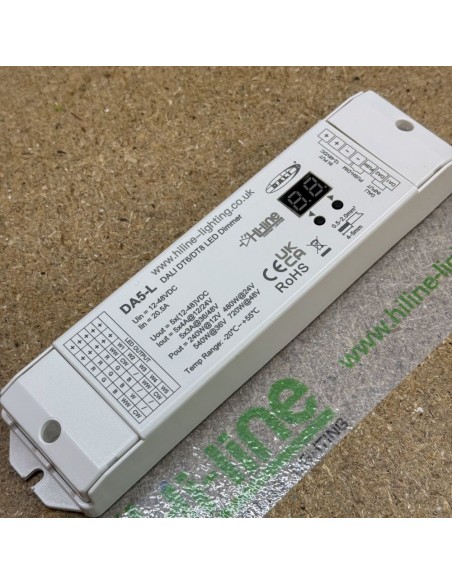

- Multiple Light Types: Configurable for single colour, CCT, RGB, RGBW, and RGB+CCT LED strips.
- DT6/DT8 Compatibility: Functions as DT6 for single-address control of individual channels or DT8 for advanced multi-channel operation, including precise RGBW colour mixing (XY mode) and tunable white adjustments (TC mode) for seamless lighting effects.

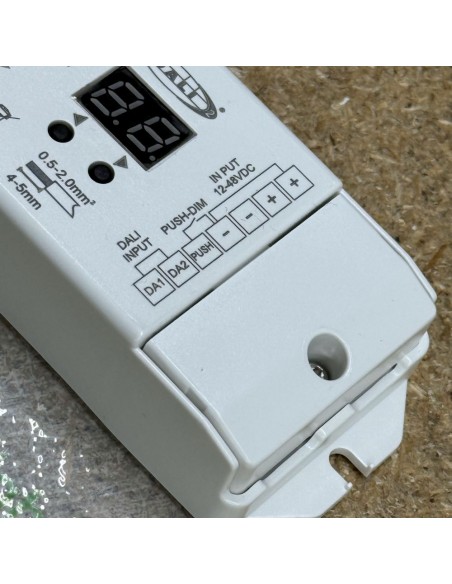

- Push Switch Functionality: Supports on/off switching, dimming, and RGB or CCT adjustments via an external push switch for local control.

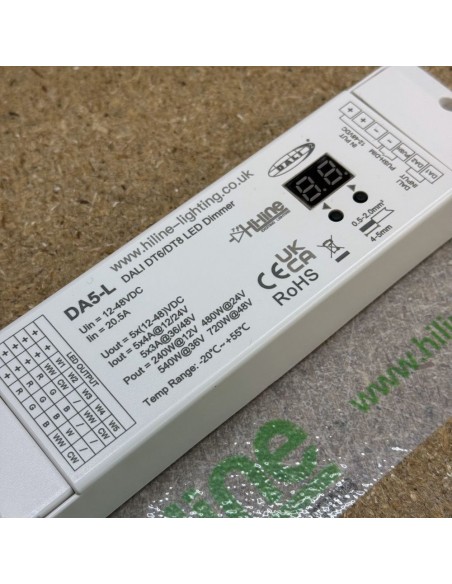

- Adjustable PWM Frequency: Selectable frequencies (1000Hz, 2000Hz, 4000Hz, 8000Hz, 16000Hz) for smooth, flicker-free dimming.
- Digital Display: Simplifies DALI address setup with manual or automatic assignment and user-friendly operation.
- Built-in Safety Protections: Overload, short circuit, and reverse polarity protections with automatic recovery.
- Compact Design: Slim dimensions (L190mm x W50mm x H27mm) allow for easy installation.

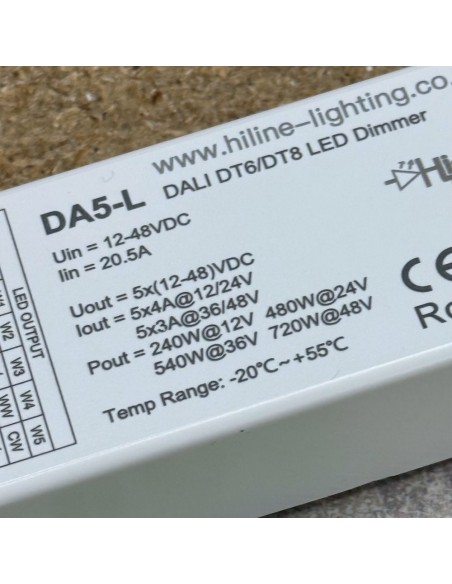

Technical Specifications:
- Input Voltage: 12-48VDC
- Output Voltage: 5x (12-48)VDC
- Output Current: 5x4A@12/24V, 5x3A@36/48V
- Dimming Range: 1-100%
- Dimming Curve: Logarithmic
- IP Rating: IP20 (indoor use)
Advanced Push Switch Control:
The DA5-L provides convenient manual control with an external push switch:
- Single Colour Mode: Adjust brightness or switch between preset levels.
- CCT Mode: Adjust brightness and switch colour temperature (warm white, neutral white, cool white).
- RGB, RGBW, and RGB+CCT Modes: Tune brightness, colour, and saturation for dynamic effects.

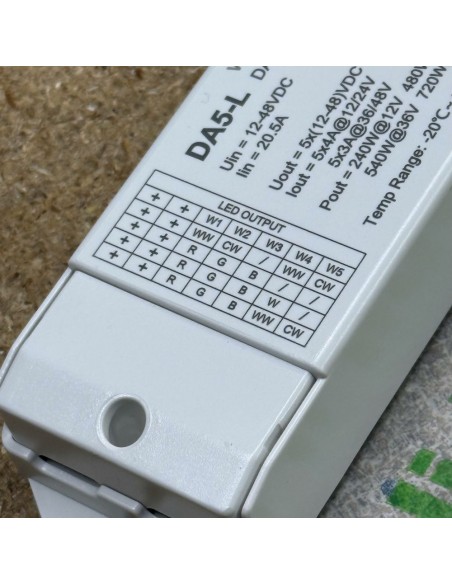

The HL-DA5-L supports multiple DALI-2 DT modes, making it a versatile choice for various LED strip types:
- Single Colour (1 Channel) – Operates in DT6 mode for simple dimming control.
- Tunable White (CCT, 2 Channels) – Uses DT8 TC mode to adjust colour temperature seamlessly between warm and cool white.
- RGB (3 Channels) – Controlled via DT8 XY mode, ensuring precise colour selection using CIE 1931 XY coordinates.
- RGBW (4 Channels) – Also operates in DT8 XY mode, blending RGB and white for accurate colour reproduction.
- RGB+CCT (5 Channels) – Utilises both DT8 XY mode for RGBW control and DT8 TC mode for tunable white adjustments, allowing independent colour and white temperature control.
This ensures flexible and advanced lighting control, making the HL-DA5-L ideal for a wide range of applications.
Warranty and Certifications:
Warranty: 3 years standard, extendable to 5 years with our extended warranty option.
Certified with DALI-2, UKCA, CE, and RoHS standards for safety and reliability.
Looking for Related Products or Accessories?
Discover compatible products and accessories by clicking the ‘Related Products’ tab at the top of this product description on desktop, or just after this section on mobile devices. For detailed specifications, the ‘Product Specification’ tab is also available at the top of this description, offering immediate access to key product details.
If you need technical data or installation guides, the ‘Attachments’ tab is located in the same area. To refine your search within any product category, the ‘REFINE BY’ filter system is positioned on the left side of the screen on desktops and at the top of the page on mobiles, ensuring a seamless browsing experience.
Innovative Lighting with DA5-L – Precision Control at Your Fingertips.
