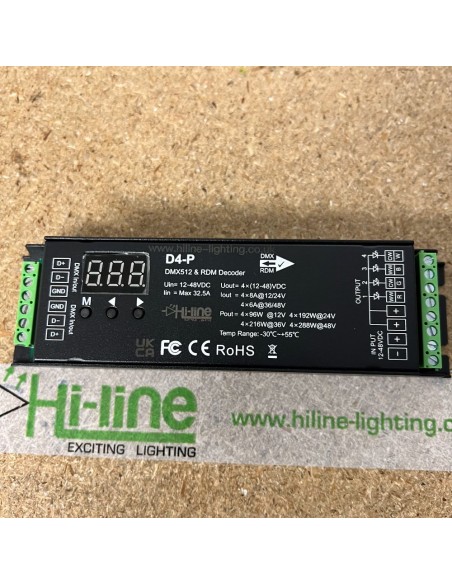

This DMX512 & RDM LED decoder offers robust 4-channel constant voltage control, with each channel delivering up to 8A and supporting input voltages from 12V to 36V DC. Designed for professional lighting environments, the D4-P supports the latest DMX512 and RDM protocols, ensuring seamless integration into dynamic lighting systems. It features a digital display for intuitive configuration.
Supporting PWM frequencies from 250Hz to 16,000Hz, the D4-P ensures smooth, flicker-free dimming, ideal for video and film production. It also includes a self-test mode, allowing users to test each channel individually without the need for a DMX connection, ensuring each channel is functioning properly during installation or troubleshooting. The RDM bi-directional communication further simplifies system configuration, enabling DMX address setup directly from the DMX master console.
It’s important to note that while the controller supports 8A per channel, the maximum total current is 32.5A. To avoid overheating, it is recommended to leave around 20% headroom and ensure proper ventilation when running at high capacity.
With overheat, overload, and short-circuit protection that automatically recovers, the D4-P ensures reliable performance in demanding environments.
For customers preferring RJ45 port DMX connections, the D4-E version is available. You can search for D4-E using the search bar or find it in the Related Products tab.
Dimensions & Weight:
- 178mm (L) x 50mm (W) x 38mm (H)
- Weight: 0.295 kg
Key Features:
- 4 channels, 8A per channel

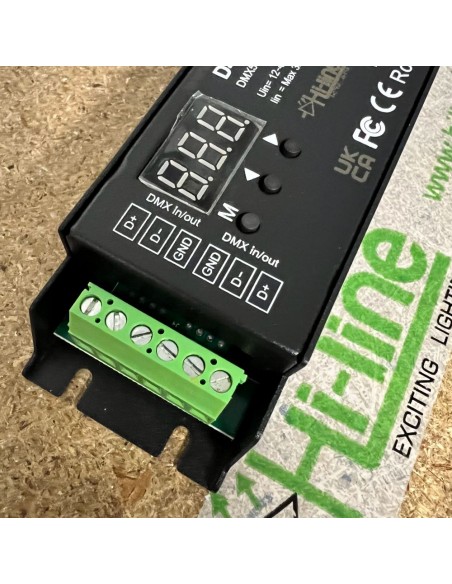

- DMX signal ports for input/output
- Adjustable PWM frequency (250Hz to 16,000Hz)
- RDM bi-directional communication for DMX setup

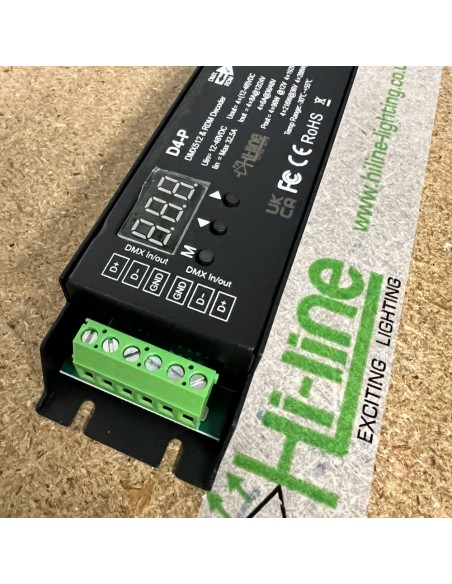

- Self-test mode for independent channel testing when DMX is not connected
- 8-bit and 16-bit grey level control for precise brightness adjustment
- Overheat, overload, and short-circuit protection
- Supports DMX512 and RDM protocols
- UKCA, CE, EMC, and LVD certified
- IP20 rated for indoor use
- Warranty: 3 years standard, extendable to 5 years with our extended warranty option
For full specifications, please refer to the datasheet located in the Attachments tab of this product listing.
