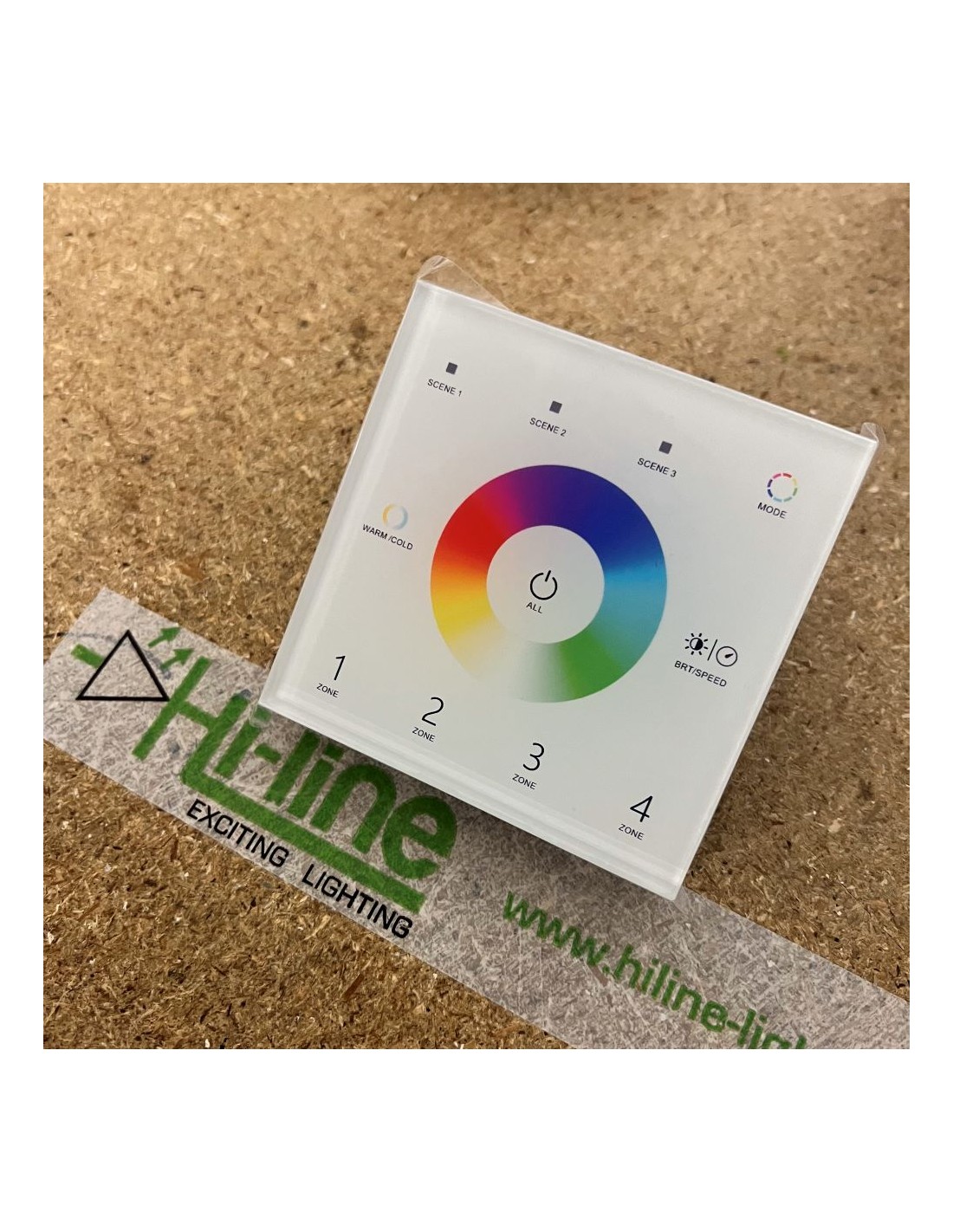

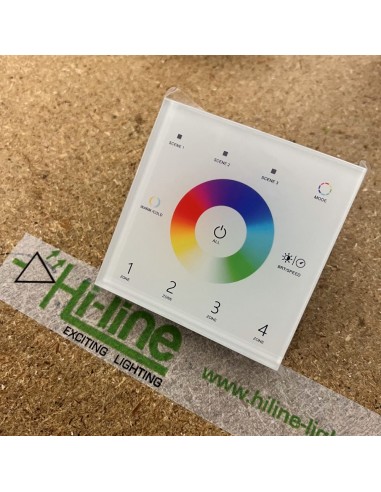

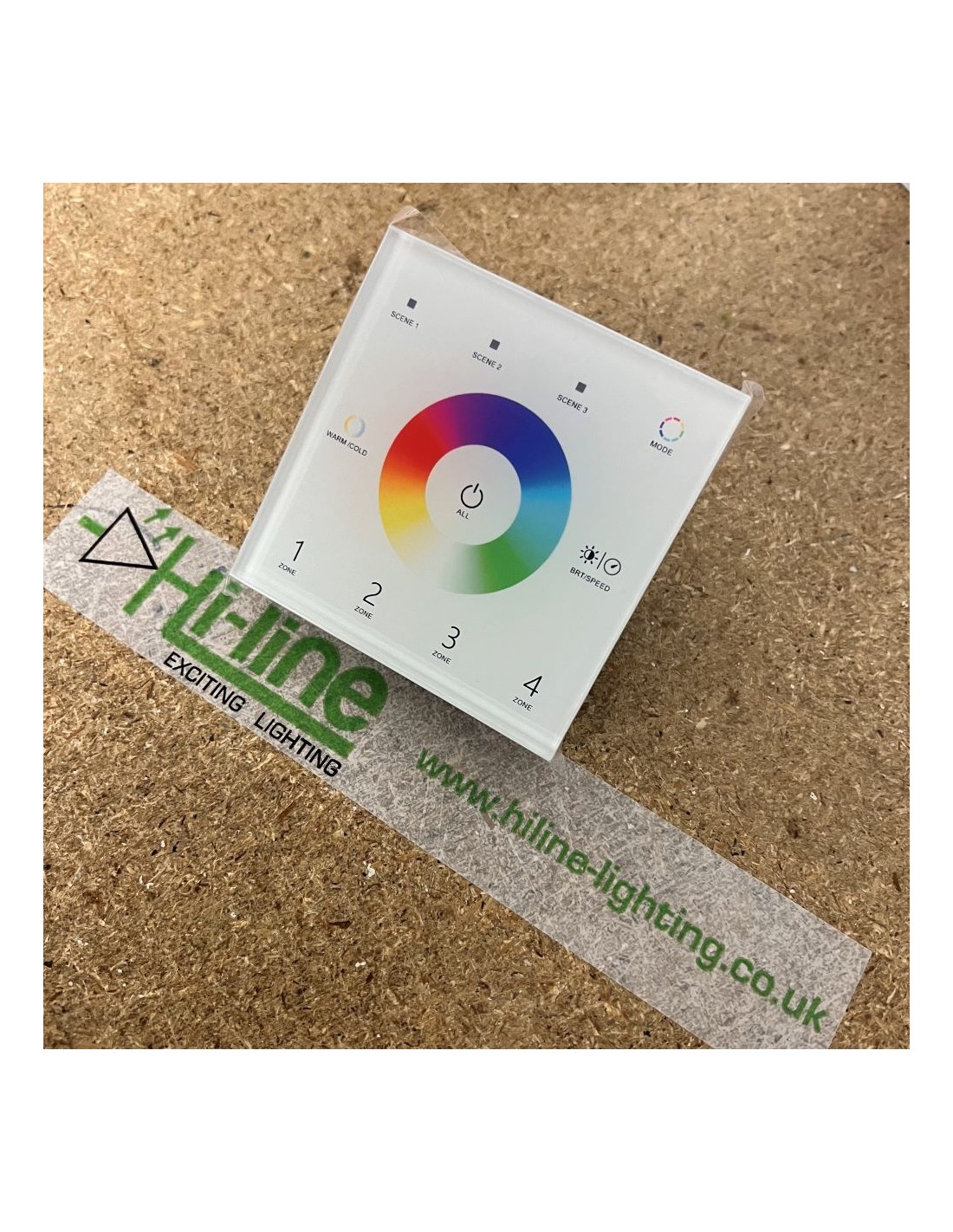

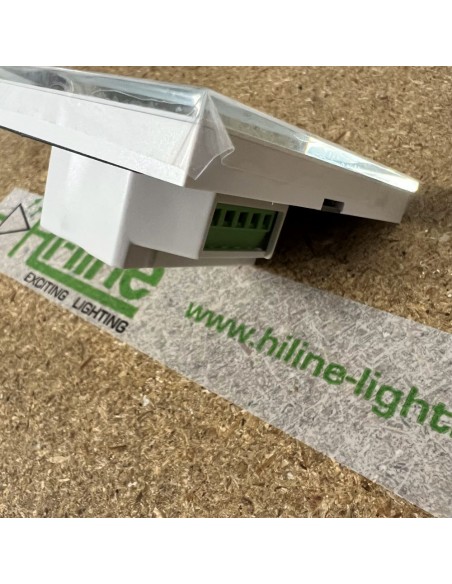

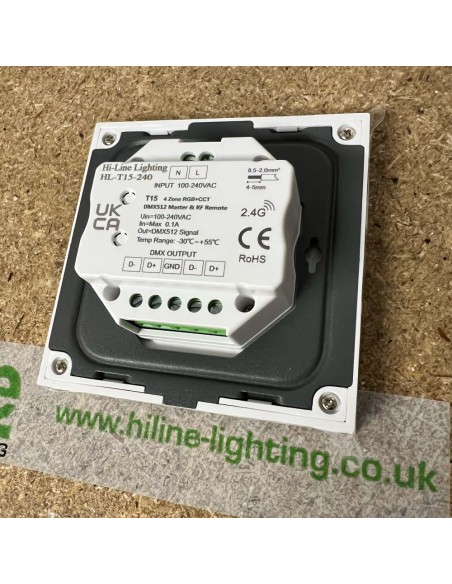

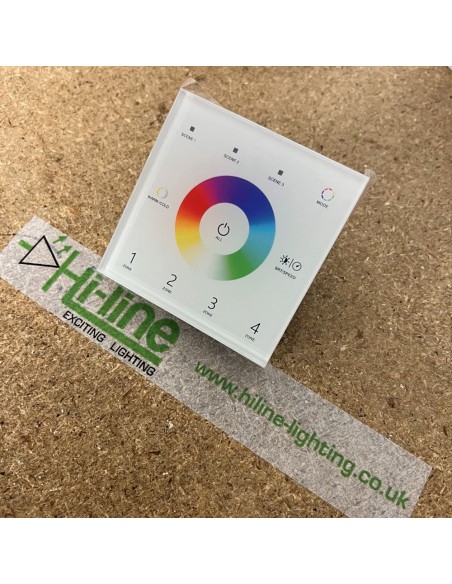

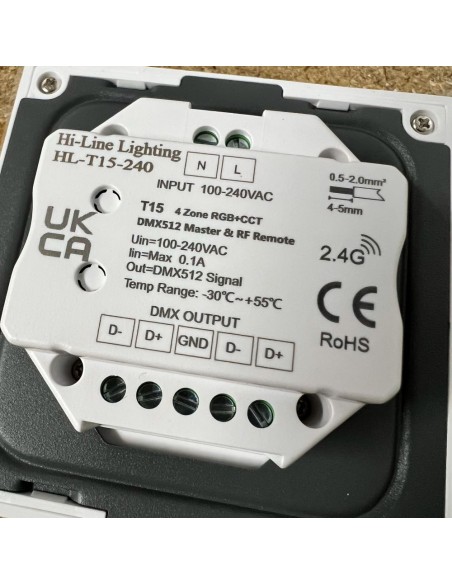

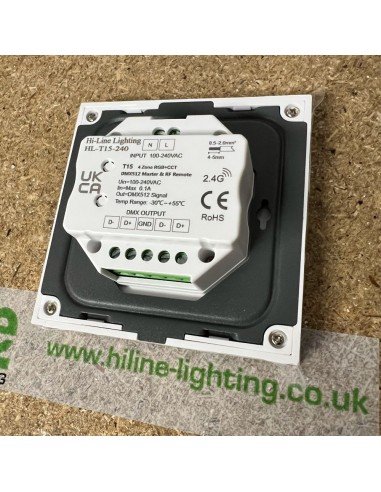

The Hi-Line Lighting T15 is an advanced glass touch panel specifically designed for controlling RGB+CCT tunable LED strips. With its sleek white glass finish, this touch panel not only provides efficient lighting control but also adds a touch of elegance to any setting. The T15 features dual functionality, offering both DMX512 output and RF wireless control, making it suitable for a wide range of installations.
Key Features:
• UKCA, CE, EMC, and RED Certified: The T15 meets high safety and quality standards, providing reliable operation for various lighting applications.
• Optimised for RGB+CCT Tunable LED Strips: The T15 is tailored for managing RGB+CCT LED strips, allowing for smooth transitions between colours and adjusting colour temperature to suit any ambiance.
• Dual Control Modes: The T15 can operate either as a DMX master or an RF remote. When used in RF mode, it pairs seamlessly with Hi-Line’s WT5 5-channel controller or the HL-V5-L(WT), which supports a higher amperage of 6A per channel. This flexibility ensures precise and effective control for various lighting setups.
• DMX Compatibility: Outputs a standard DMX512 signal, allowing compatibility with any DMX512 decoder from any supplier. This makes it an ideal choice for more complex lighting systems that rely on wired DMX connections.
• Wireless Control with Extended Range: The panel uses RF (2.4GHz) technology for wireless control, with an impressive range of up to 30 metres in an open, barrier-free environment. This offers flexibility for installations where wiring may not be feasible.
• Ultra-Sensitive Glass Touch Panel: The T15 features a high-strength glass touch panel with subdivided colour blocks for detailed and smooth colour adjustments. The central colour slide offers accurate control, while touch keys are equipped with LED indicators for an intuitive user experience.
• Versatile Zone Control: Designed to manage up to four independent zones, the T15 can control multiple receivers simultaneously, making it ideal for setups requiring synchronised or separate lighting zones.
• Multiple Built-In Modes and Scene Memory: Equipped with 10 dynamic modes, including RGB jump, fade, and smooth colour transitions. Users can adjust mode speeds and brightness levels, and store up to four different scenes, easily recalling them for various lighting needs.
Technical Specifications:
• Model: HL-T15-W
• Input Voltage: 100-240V AC
• Output: DMX512, RF 2.4GHz
• Compatibility: WT5, HL-V5-L(WT), any DMX512 decoder, and other DMX controllers
• Control Distance (RF): Up to 30 metres (barrier-free space)
• Dimming Levels: 256, with a full 0-100% dimming range
• Dimensions: 112 x 112 x 50mm
• Operating Temperature: -30°C to +55°C
• IP Rating: IP20 (suitable for indoor use)
• Certifications: UKCA, CE, EMC, RED
• Warranty: 3 years standard, extendable to 5 years with our extended warranty option
The T15 touch panel in white glass is the perfect solution for those looking to create dynamic lighting effects, whether through wired DMX control or wireless RF. Its versatility, ease of installation, and elegant design make it a top choice for both residential and commercial lighting applications.
Additional Information:
- To view full technical details, download the datasheet from the "Attachments" tab.
- For related products and accessories, visit the "Related Products" tab to explore options.
