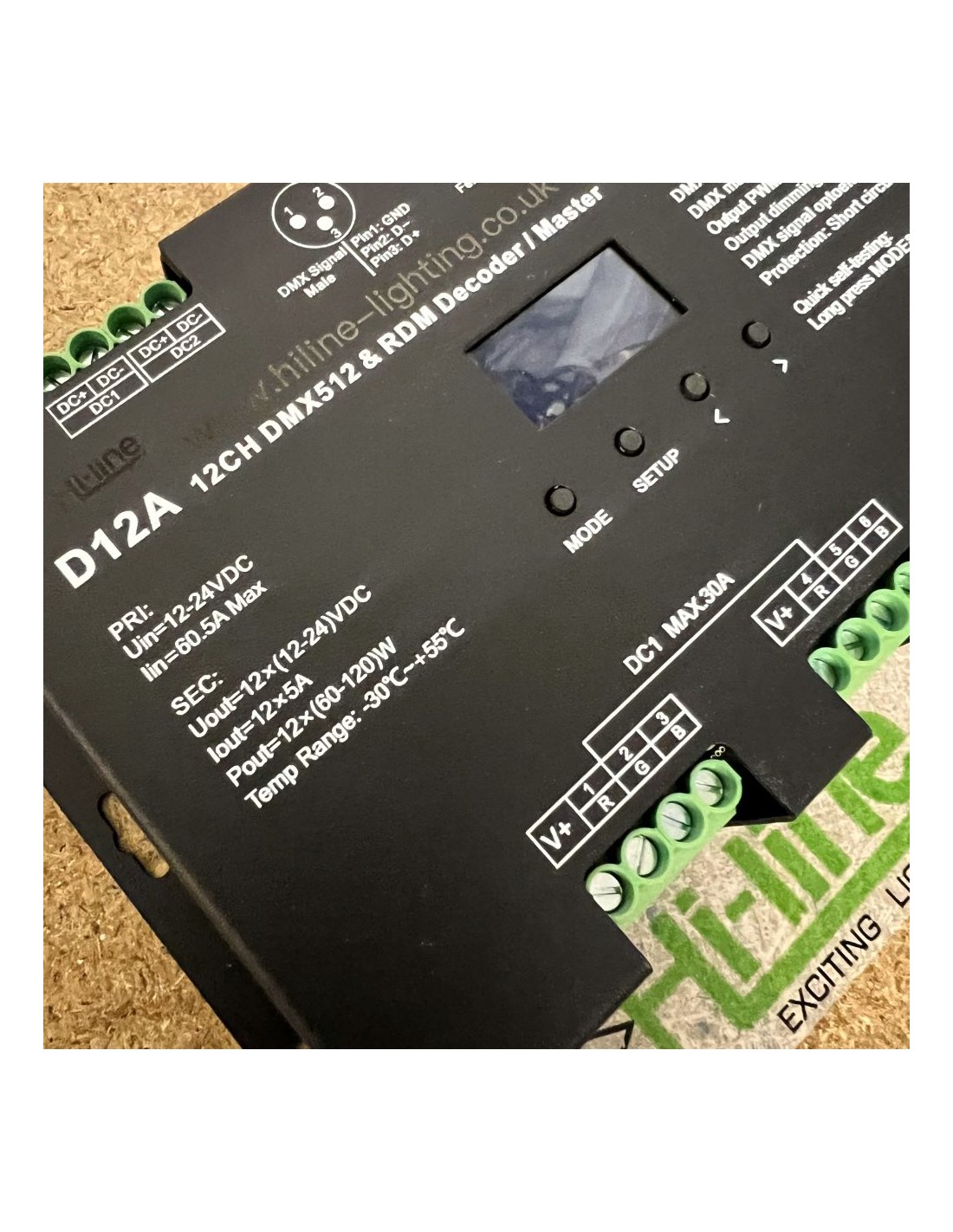

The 12CH DMX Controller D12A is a high-performance, constant voltage DMX512 decoder and RDM master, designed for advanced lighting control applications. With 12 independent channels, each supporting up to 5A, this controller offers control for multi-colour LED systems. While the D12A can handle a total current of up to 60A, caution must be exercised to avoid overloading the controller.
The D12A features RDM (Remote Device Management), allowing for remote configuration and monitoring. Its intuitive OLED display makes setup simple, allowing quick adjustments to DMX addresses, dimming curves, and more. Built-in overload, short circuit, and overheat protection ensures safe operation, but proper usage is key to maintaining long-term reliability.
Key Features:
- 12-channel constant voltage output: Max. 5A per channel (up to 60-120W per channel)
- Total power handling: Up to 1440W (12 x 120W)
- Input voltage range: 12V to 24V DC
- PWM frequency: Selectable between 500Hz, 2KHz, 8KHz, and 16KHz for flicker-free dimming
- Dimming resolution: Selectable 8-bit (256 levels) or 16-bit (65536 levels)
- Gamma correction: Adjustable gamma value (0.1 to 9.9)
- DMX modes: Supports DIM (single channel), CCT (dual channel), and RGB modes
- Standalone RGB and dimming mode: Acts as a DMX master for 12-channel dimming or RGB control
- Built-in RGB programs: 10 pre-defined dynamic modes, with adjustable speed and brightness

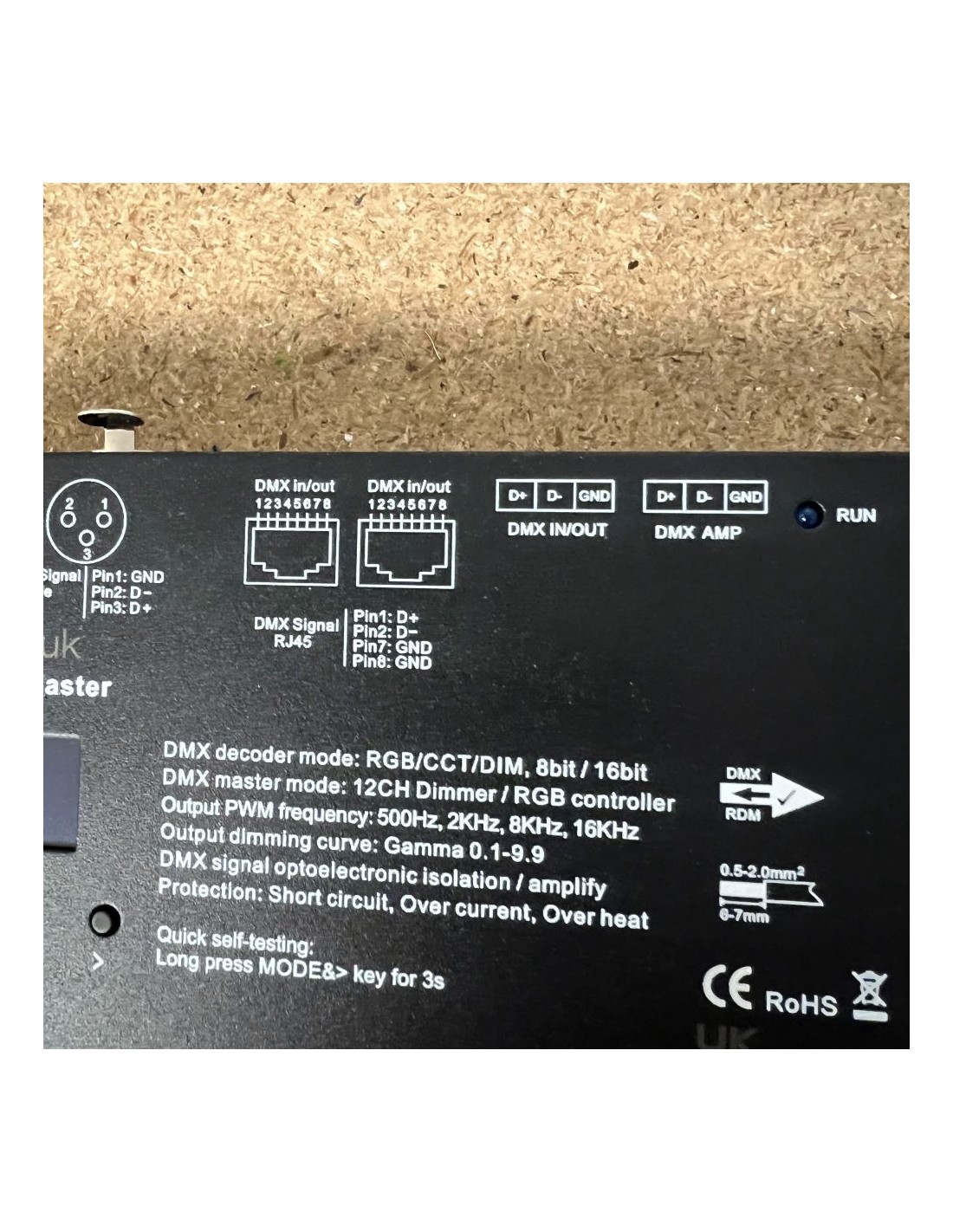

- Signal isolation: Optoelectronic isolation for robust signal transmission
- Protection: Overheat, overload, and short circuit protection with automatic recovery
- Self-testing function: System diagnostics via the OLED display
- Compact size: 256mm x 120mm x 46mm, IP20-rated for indoor use
- Certifications: UKCA, CE, EMC, LVD
Installation and Safety Notes:
- Avoid running at maximum load: While each channel supports up to 5A, it is recommended not to load the controller to its maximum capacity (60A) to ensure long-term reliability. Running the controller near its limit can lead to overheating and may reduce the lifespan of the components.
- Distribute load across multiple controllers: For installations that require higher power, we recommend using multiple controllers to share the load. This will help avoid overloading any single unit and maintain stable performance.
- Ventilation is critical: Ensure that the controller is installed in a well-ventilated area. High current operation can cause heat buildup, and proper airflow is essential to prevent overheating. Overheating could result in reduced performance or the controller's automatic shutdown to protect itself.
- Input voltage: 12-24V DC; ensure your power supply is correctly rated to handle the total load.
- Use of terminal resistors: For long signal lines or installations with more than 32 decoders, install a 0.25W 90-120Ω terminal resistor at the end of each DMX signal line to ensure signal integrity.
For detailed wiring diagrams and installation guidance, please refer to the D12A DMX Controller datasheet, available for download in the 'Attachments' tab. Ensure all installations comply with local electrical regulations and are carried out by qualified professionals.
Warranty: Hi-Line Lighting’s standard 3 years, extendable to 5 years with the extended warranty option.
