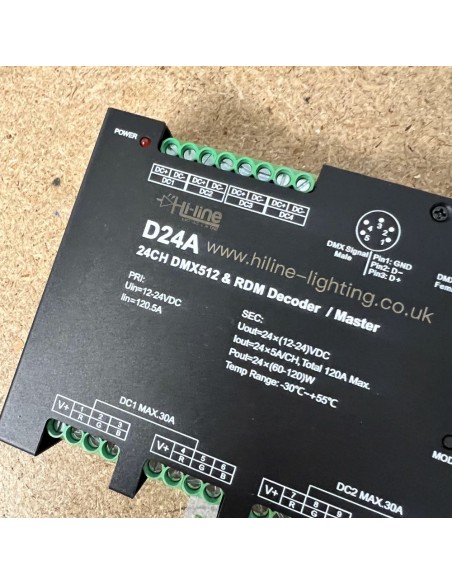

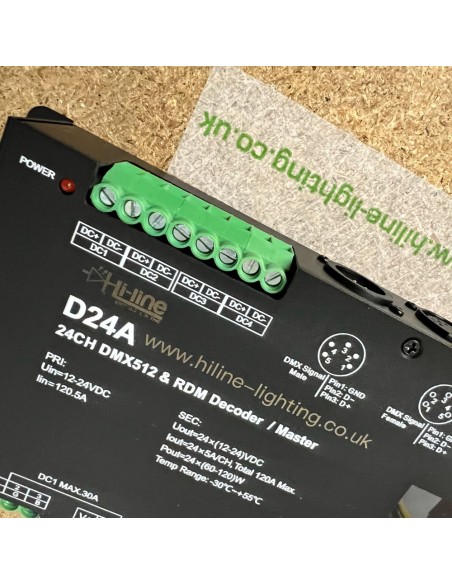

The D24A DMX512 24-Channel Constant Voltage LED Controller is a versatile and powerful solution for professional LED lighting control. Engineered for precision and reliability, this controller is suitable for demanding installations requiring advanced features and seamless operation.

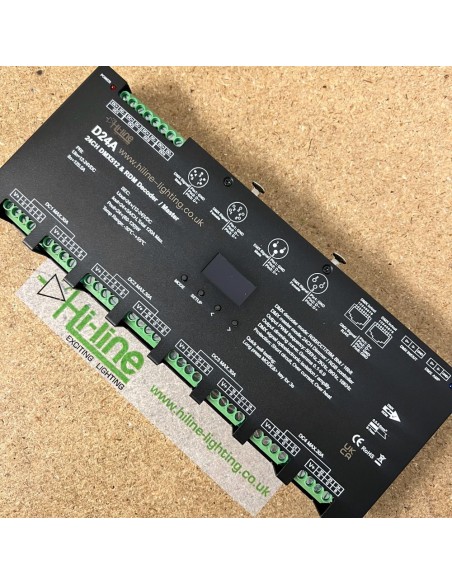

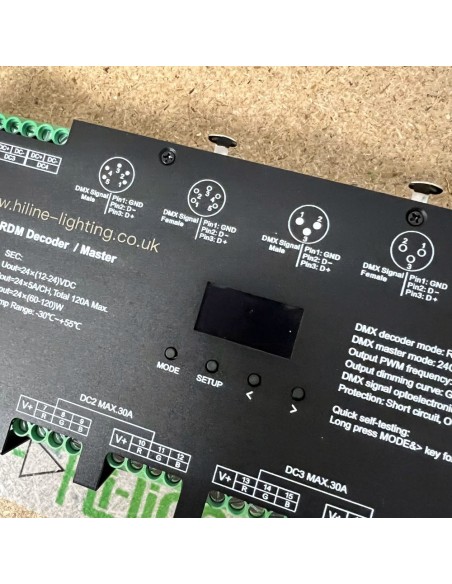

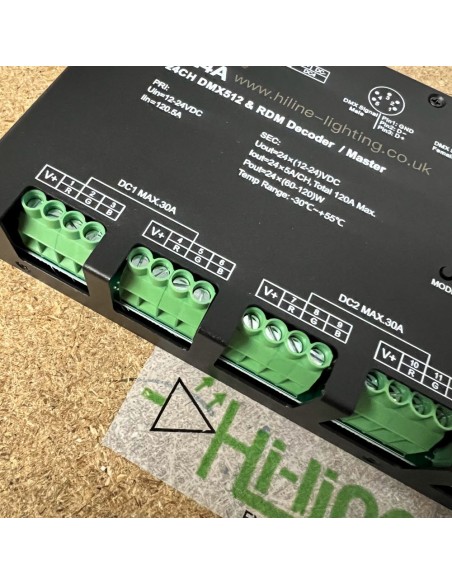

With 24 constant voltage outputs, each channel supports up to 5A, delivering a total power output of up to 2,880W. Compatible with 12-24VDC input, the D24A is ideal for high-performance LED systems. Its OLED display and four-button interface simplify configuration, whether for basic or complex lighting setups.

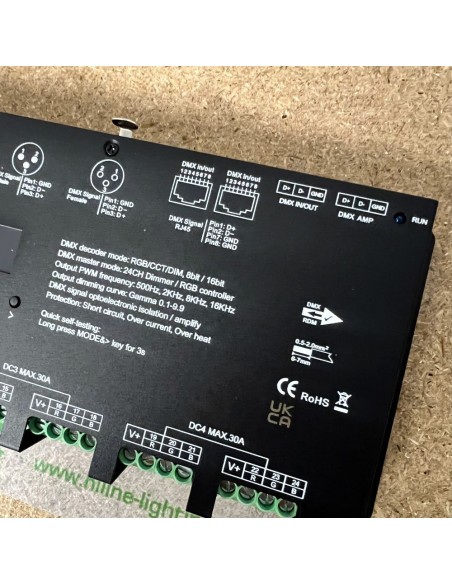

The D24A supports DIM, CCT, and RGB decoding modes, with adjustable PWM frequencies (500Hz, 2kHz, 8kHz, 16kHz) and selectable 8-bit (256 levels) or 16-bit (65,536 levels) grey levels. Adjustable gamma curves from 0.1 to 9.9 allow fine-tuning for precise dimming. In master mode, the controller functions as an RGB controller or a 24-channel dimmer, featuring 10 dynamic RGB programmes with adjustable speed and brightness.

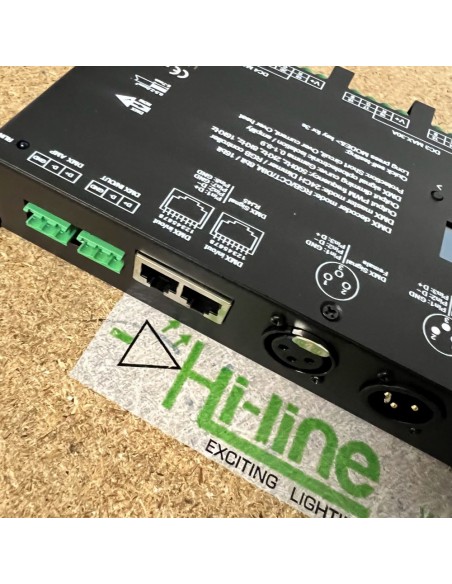

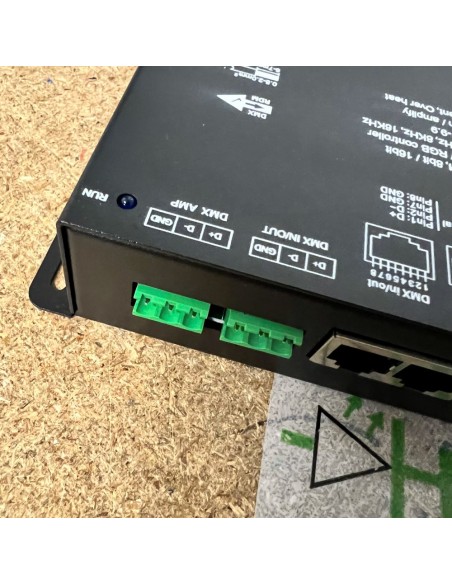

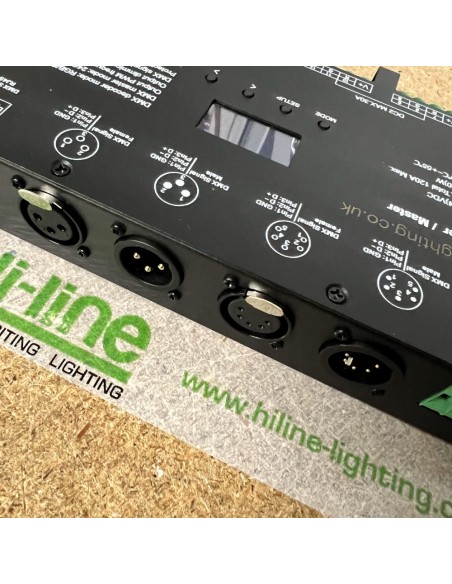

DMX optoelectronic isolation ensures signal reliability, making the D24A suitable for even the most complex installations. Built-in over-heat, over-load, and short circuit protection with automatic recovery further enhance its dependability.
Specifications:

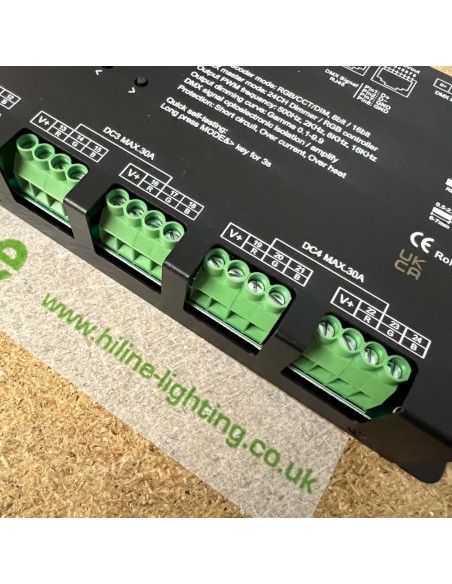

- Channels: 24 constant voltage outputs
- Voltage: 12-24VDC
- Maximum Current: 5A per channel
- Total Output Power: Up to 2,880W
- PWM Frequencies: 500Hz, 2kHz, 8kHz, 16kHz
- Grey Levels: 8-bit (256 levels) / 16-bit (65,536 levels)
- Gamma Curve: Adjustable from 0.1 to 9.9
- Operating Temperature: -30°C to +55°C
- Dimensions: 324mm (L) x 116mm (W) x 38.5mm (H)
- Certifications: UKCA, CE, EMC, LVD
Safety Features:
Integrated over-heat, over-load, and short circuit protection with automatic recovery ensures reliable and safe operation.
Warranty:
Includes a standard 3-year warranty, with the option to extend to 5 years for enhanced coverage.
For additional details, visit the Attachments tab to download the datasheet and review installation guidelines. The Related Products tab also offers compatible accessories to simplify your setup. Whether for architectural lighting, stage effects, or other dynamic lighting systems, the D24A delivers exceptional performance and flexibility.
