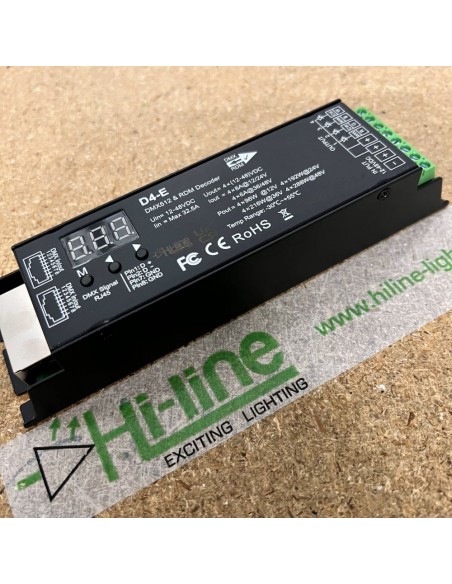

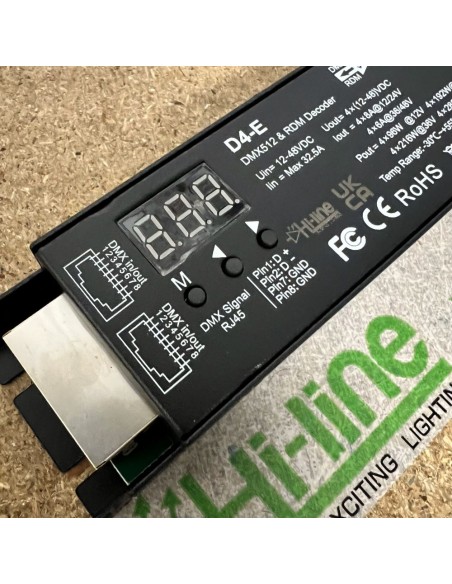

The D4-E DMX512 & RDM LED decoder is crafted for professional lighting control, offering 4 output channels with a capacity of 8A per channel. This model utilises RJ45 Ethernet ports for DMX input and output, ensuring high-speed and reliable data transmission in larger lighting systems. The input voltage ranges from 12V to 36V DC, providing flexibility for various lighting applications, including architectural and stage lighting.
The D4-E features an adjustable PWM frequency from 250Hz to 16,000Hz, delivering smooth, flicker-free lighting, making it ideal for environments requiring high precision, such as film production. Its self-test functionality allows you to check the operation of each channel without needing a DMX signal, helping with installation and diagnostics.
Using the RDM protocol, the D4-E enables easy, remote configuration and status monitoring of DMX addresses directly from the lighting console. Although each channel can handle up to 8A, the total current should not exceed 32.5A, and it’s recommended to leave a 20% buffer for safe operation at higher loads to avoid overheating.

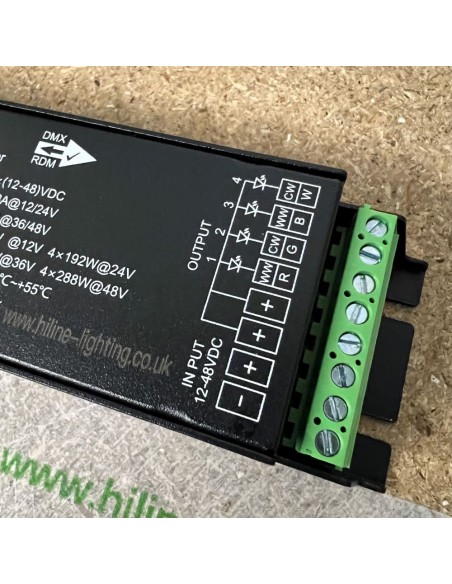

The decoder comes with built-in protection against overheating, overloading, and short circuits, ensuring the system remains safe and functional even in demanding conditions.
If you're interested in the version with terminal block DMX inputs, the D4-P is available and can be found in the Related Products tab or through the search bar.
Dimensions & Weight:
- 178mm (L) x 50mm (W) x 38mm (H)
- Weight: 0.295 kg
Key Features:

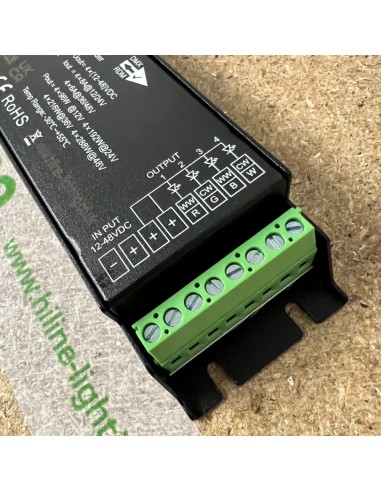

- 4 channels, 8A per channel

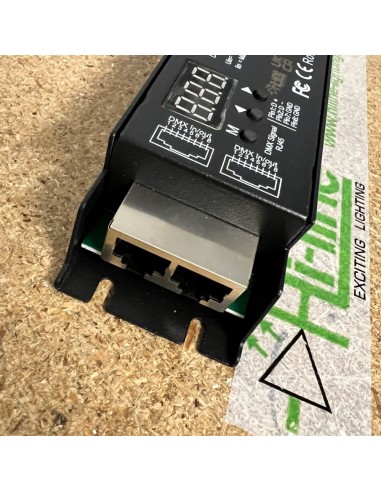

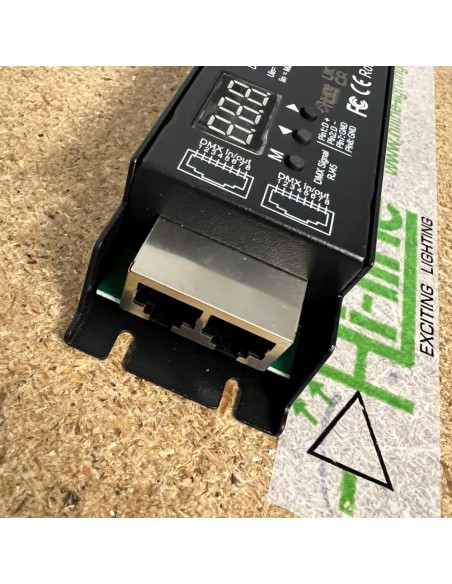

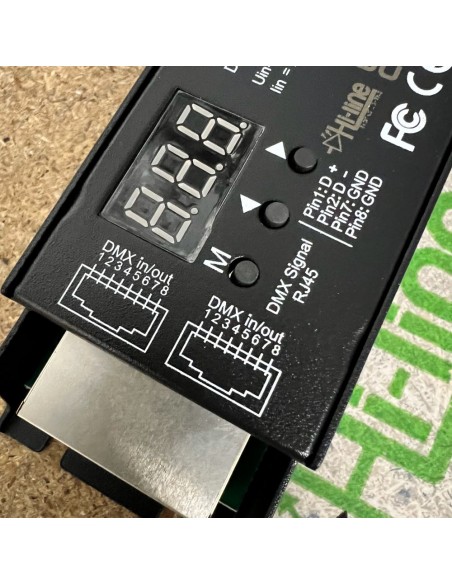

- RJ45 Ethernet DMX signal input/output for stable data transfer
- Adjustable PWM frequency from 250Hz to 16,000Hz
- RDM protocol for remote configuration and real-time feedback
- Self-test mode for testing each channel without a DMX connection
- 8-bit and 16-bit grey scale control for precise dimming
- Overload, overheat, and short-circuit protection
- Compatible with DMX512 and RDM standards
- UKCA, CE, EMC, and LVD certified
- IP20 rated for indoor use
- 3-year standard warranty, extendable to 5 years
For detailed specifications, visit the Attachments tab of this product listing.
