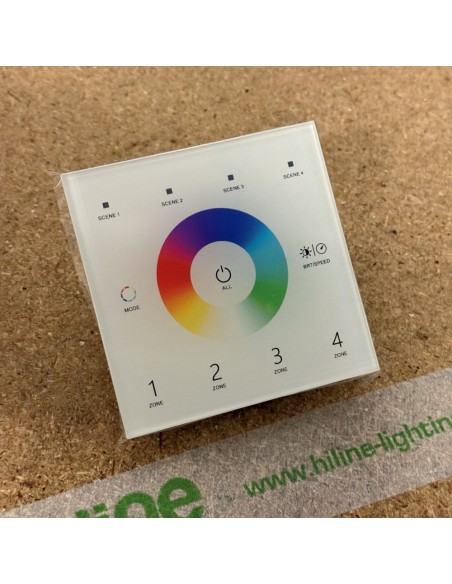

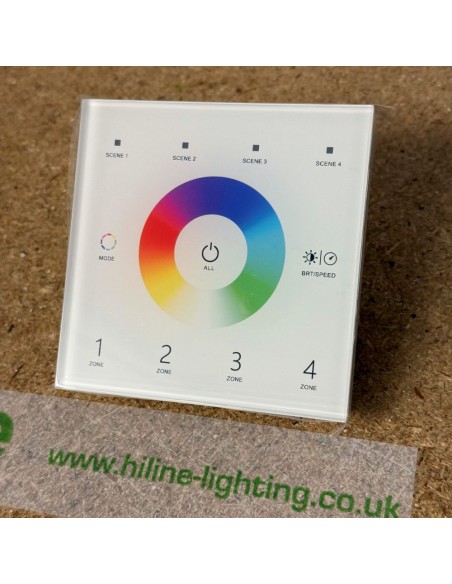

The T13 RGB Touch Panel Controller is a sleek and intuitive control solution for RGB LED strips, combining RF wireless control and DMX512 output in one device. Its premium white glass finish, ultra-sensitive touch controls, and 4-zone functionality make it ideal for both residential and commercial installations.
Key Features:
- Dual Control Options: Supports both RF 2.4GHz wireless control and DMX512 output, compatible exclusively with Hi-Line Lighting’s LED controllers and accessories.
- Specifically designed for RGB LED strips, offering smooth and precise colour adjustments with a responsive touch colour wheel.
- Controls up to 4 independent zones, with each zone capable of managing multiple receivers simultaneously.
- Available in both white and black finishes to suit various décor styles.
- Certified for UKCA compliance, ensuring product quality and safety.
- Warranty: 3 years standard, extendable to 5 years with our extended warranty option.
Technical Specifications:
- Input Voltage: 100-240VAC
- Output Signal: DMX512 and RF 2.4GHz
- Control Zones: 4 independent zones
- Dimming Levels: 256 levels, with a dimming range of 0-100%
- Control Distance (RF): 10m (barrier-free)
- Operating Temperature: -30°C to +55°C
- Max Case Temperature: +65°C
- IP Rating: IP20 (indoor use only)
- Dimensions: L112 x W112 x H50mm
- Certification Standards:
- EMC: ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4
- Radio Equipment (RED): ETSI EN 300 328 V2.2.2
- Safety: EN 62368-1:2020+A11:2020
Selecting the Right Panel for Your LED Strip:
Choosing the correct panel is crucial for optimal performance:
- RGB LED Strips: This T13 panel is the perfect match. You can also use the T14 RGBW panel (listed separately under the Related Products tab), though it includes additional functions for RGBW strips.
- RGBW LED Strips: Only the T14 RGBW panel supports all four channels (red, green, blue, and white). Using the T13 or T15 for RGBW strips will leave the white channel inactive.
- RGB+CCT Tunable LED Strips: The T15 RGB+CCT panel is designed for strips combining RGB with tunable white LEDs.
- Single Colour or CCT White Tunable Strips: The T11 (single colour) or T12 (CCT white tunable) panels are ideal for these applications.
Additional Information:
- Live Stock Count: Real-time availability is displayed online. If the stock shows "re-order" instead of a number, the delivery lead time is approximately one month.
- Related Products and Datasheet: Check the Related Products tab for compatible items and alternative panels. Download the datasheet for detailed technical specifications under the Attachments tab.
The T13 RGB Touch Panel Controller combines style, versatility, and high performance, providing a seamless and reliable control option for your RGB LED lighting needs. Backed by Hi-Line’s UKCA certification and extended warranty options, it is designed for excellence in any installation.
