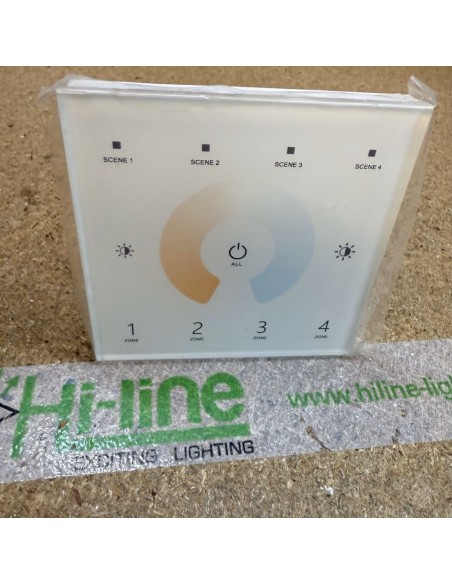

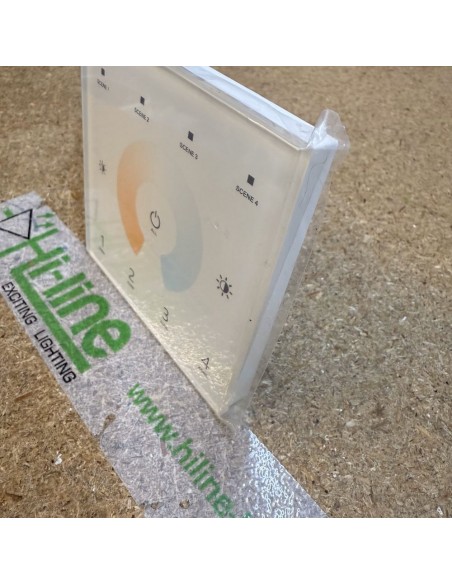

T12 White Glass Touch Panel 4-Zone Wall Controller for Tunable White LED Strips

T12 Wall-mounted white glass touch panel for tunable white LED strips. Supports 4-zone control via DMX512 or RF 2.4GHz. Requires professional setup.

HL-T12-W

Require more quantity?

We have 10 in stock ready to dispatch. If you require more, this product is also available to preorder with an estimated delivery timeframe of 30-45 days.
10 Items In stock
Next working day delivery
£39.00
46.80
with VAT)
VAT excluded



This high-end wall-mounted controller T12 features a sleek white glass touch panel and is purpose-built for controlling tunable white (CCT) LED strips. It supports both professional DMX512 wired control and reliable RF 2.4GHz wireless communication, offering full flexibility for installers across a wide range of residential, commercial, and stage lighting projects.

The panel allows smooth adjustment of colour temperature between warm and cool white using the central touch wheel, with precise brightness control across four independently controlled zones. It can output two DMX channels per zone and is compatible with all universal DMX decoders as well as Hi-Line’s 2.4GHz tunable white LED controllers.

This is a smart panel and requires setup. It is not plug-and-play and must be programmed by a qualified professional installer. Programming options and matching procedures for RF receivers or remotes are detailed in the downloadable user manual, which is available under the Attachments tab.

From the Related Products tab, you can find all compatible accessories including RF remotes, receivers, and DMX decoders. A remote control can be added optionally, allowing wireless adjustment if required.


Key Features
White glass touch panel with ultra-sensitive colour temperature wheel
4-zone control – manage each zone independently or synchronously
Dual output mode: RF 2.4GHz and DMX512
Compatible with all Hi-Line tunable white 2.4GHz LED controllers
Works with any universal DMX512 decoder
Scene save and recall function with up to 4 presets
Soft-touch LED indicators and optional key tones


Technical Specifications
Input Voltage: AC100-240V
Input Current: Max 0.1A
Output Signal: RF 2.4GHz and DMX512
DMX Output Channels: 8 channels (2 per zone: WW + CW)
Control Distance (RF): Up to 10m (open space)
Dimming Levels: 256-step smooth adjustment
IP Rating: IP20 (indoor use only)
Panel Size: L112 x W112 x H50mm (EU standard 86 size back box)
Operating Temperature: -30°C to +55°C
Weight: 0.234kg
Certifications: UKCA, CE, EMC, RED
Warranty: 3 years standard, extendable to 5 years


Installation Notes
Install into a standard 86mm European back box

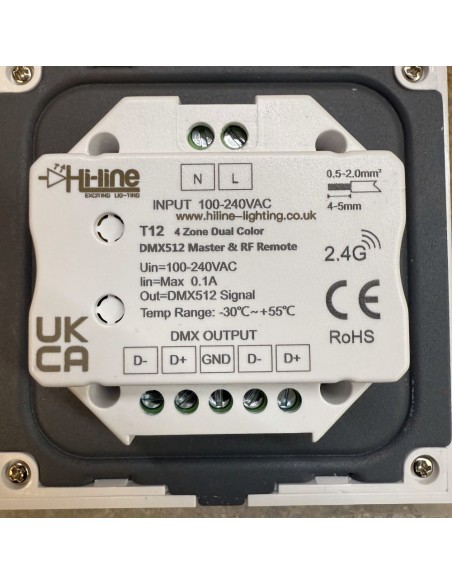

For DMX use, wire D+, D-, and GND from the panel to your decoder(s)
Each zone corresponds to two DMX channels (e.g., Zone 1 = Channels 1–2)
Ensure decoders are addressed correctly for multi-zone operation
For RF mode, match the panel to compatible RF controllers or remotes by following pairing instructions in the manual
Programming is required – intended for use by professional installers only


Looking for Related Products or Accessories?
Discover compatible products and accessories by clicking the 'Related Products' tab at the top of this product description on desktop, or just after this section on mobile devices. For detailed specifications, the 'Product Specification' tab is also available at the top of this description, offering immediate access to important product details. If you need technical data or installation guides, the 'Attachments' tab is located in the same area. To refine your search within any product category, the 'REFINE BY' filter system is positioned on the left side of the screen on desktops and at the top of the page on mobiles, ensuring a seamless browsing experience.

Type
Tunable white (CCT)
Voltage
240V AC
Type of control
DMX512
Radio Frequency (RF)
Operating Frequency (RF)
2.4GHz
