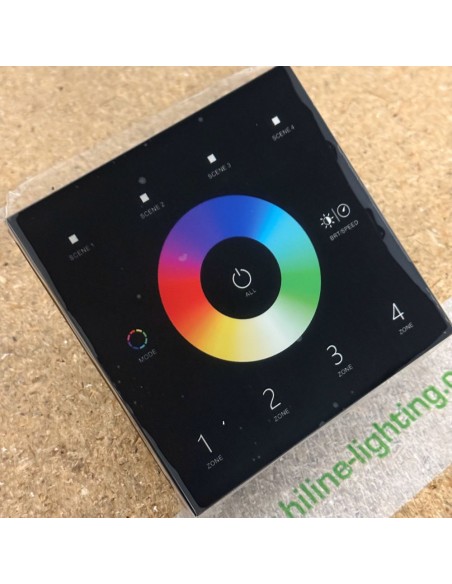

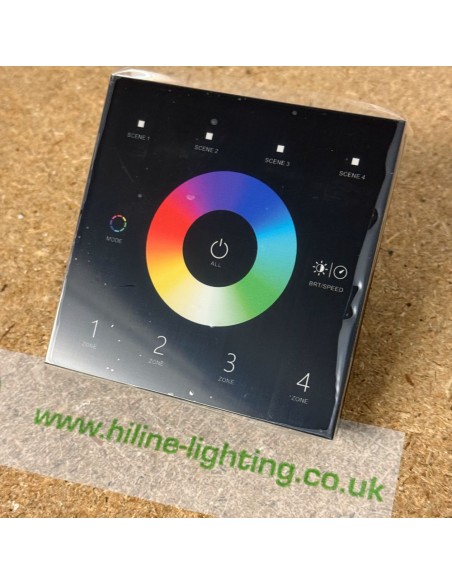

Black Glass RGB LED Controller | T13 RF & DMX512

The T13 Black Glass LED Controller combines RF wireless technology and DMX512 output to deliver versatile and effective control for RGB LED strips. Its sophisticated black glass design, precision touch controls, and 4-zone capabilities make it an excellent choice for modern and professional lighting projects.

HL-T13-B
1 Item In stock
Last items in stock
£39.25
47.10
with VAT)
VAT excluded



The T13 Black Glass LED Controller is a premium and versatile solution for managing RGB LED strips, offering both RF wireless control and DMX512 output in one compact unit. Its sophisticated black glass finish and precision touch interface provide an elegant yet practical option for controlling lighting in residential and commercial settings.

Key Features:

  • Dual Control Modes: Supports RF 2.4GHz wireless control and DMX512 output, exclusively compatible with Hi-Line Lighting’s range of LED controllers and accessories.
  • Optimised for RGB LED strips, delivering smooth and precise colour control with an intuitive touch-sensitive colour wheel.
  • Controls up to 4 separate zones, with the ability to manage multiple receivers per zone.
  • Finished in black glass, making it an ideal addition to contemporary and professional spaces.

Technical Specifications:

  • Input Voltage: 100-240VAC
  • Output Signal: DMX512 and RF 2.4GHz
  • Zones: 4 independent control zones
  • Dimming Range: 0-100% with 256 dimming levels
  • RF Control Range: 10m (barrier-free)
  • Operating Temperature: -30°C to +55°C
  • Maximum Case Temperature: +65°C
  • IP Rating: IP20 (indoor use only)
  • Dimensions: L112 x W112 x H50mm
  • Certification Standards:
    • EMC: ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4
    • Radio Equipment (RED): ETSI EN 300 328 V2.2.2
    • Safety: EN 62368-1:2020+A11:2020

Selecting the Right Controller for Your LED Strips:

Choosing the correct controller is essential for optimal performance:

  • RGB LED Strips: This T13 model is the perfect match for RGB lighting. For added features, consider the T14 RGBW controller, listed separately.
  • RGBW LED Strips: Only the T14 RGBW controller supports all four channels (red, green, blue, and white). Using the T13 or T15 will leave the white channel inactive.
  • RGB+CCT Tunable Strips: For strips combining RGB and tunable white, opt for the T15 RGB+CCT controller.
  • Single Colour or CCT White Tunable Strips: The T11 (single colour) or T12 (CCT white tunable) are specifically designed for these strip types.

Additional Information:

The T13 Black Glass RGB LED Controller combines sleek design, advanced functionality, and reliable performance, making it an excellent choice for modern lighting projects. Backed by Hi-Line Lighting’s quality standards, this controller ensures smooth and effortless management of your LED strips.

Type
RGB Only
Voltage
240V AC
Type of control
DMX512
Radio Frequency (RF)
Operating Frequency (RF)
2.4GHz
