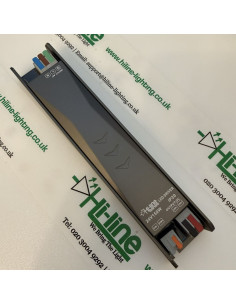

Dimmable LED Driver | 24V | 300W | IP67 | Premium Hybrid Series
This driver offers versatile 5-in-1 dimming options, including 0-10V dimming, 1-10V dimming, 10V PWM dimming, and resistance dimming. The soft-on and fade-in function ensures smooth transitions, reduces eye strain, and provides a more comfortable visual experience. With a wide dimming range of 0-100% and the capability to start the LED at just 1%, this driver allows precise control over light intensity.
The flicker-free operation complies with IEEE1789 standards, ensuring flicker-free lighting across the entire dimming range with a high-frequency (3500Hz) exemption level. Operating at 90% efficiency, with a power factor (PF) greater than 0.95 and total harmonic distortion (THD) less than 10%, this driver ensures minimal power loss and maximum performance.
Equipped with comprehensive protection features, including overload, over-temperature, short circuit, and over-voltage protection, as well as automatic recovery, this driver safeguards your lighting system. Designed for durability, this driver has an operational lifespan of up to 50,000 hours.
Technical Specifications:
The driver operates with an input voltage of 100-264Vac and delivers an output voltage of 24VDC ± 0.5VDC. The maximum output power is 300W, with a maximum output current of 12.5A. It offers high efficiency at 90% and functions within a temperature range of -30°C to 50°C. The driver is IP67 certified, meaning it is dust and water-resistant. Additionally, it meets the requirements of UKCA, CE, IEC/EN61347-1, IEC/EN61347-2-13, EN55015, EN61000-3-2 Class C, IEC61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, IEEE 1789, and RoHS.
Physical Specifications:
The dimensions of the driver are 300mm x 75mm x 25mm (L x W x H), and the weight is 1082g ± 10g per unit.
Installation Guidance:
This driver is compatible with both leading and trailing edge dimmers, offering excellent compatibility with various lighting systems, even those not specifically designed for mains dimming. However, it is crucial to ensure that wall dimmers are specified correctly to avoid compatibility issues. For example, if you intend to dim a load of 300W, but your wall dimmer specifies a minimum load of 60W, the wall dimmer may not function correctly below this threshold, even though our driver can handle the load. This driver is one of our best concerning compatibility with other brands, providing reliable performance across diverse setups.
Suitable Applications:
Ideal for internal lighting applications, compatible with Class I, II, and III installations.
Professional Installation:
For optimal performance and safety, ensure that installation is carried out by a qualified professional, complying with all relevant regulations.
