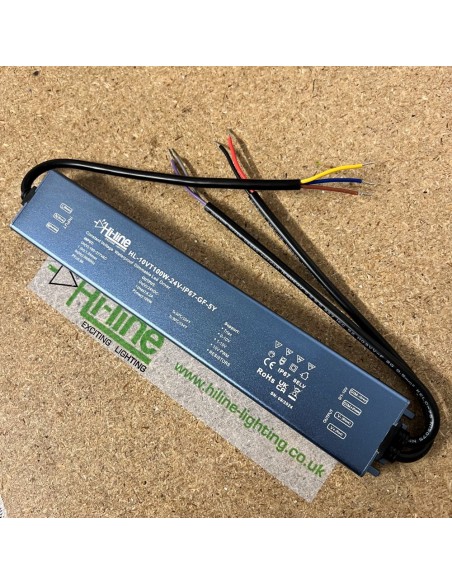

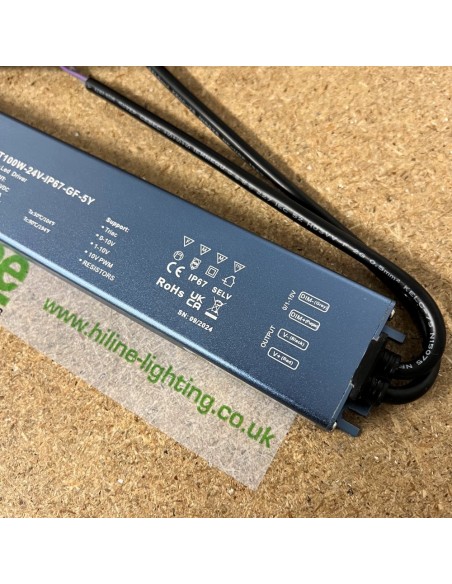

Introducing our latest design, the Premium Hybrid Series 24V, 100W dimmable LED driver. This state-of-the-art driver is engineered for high compatibility and efficiency, making it the best choice for almost all lighting brands.
Key Features:

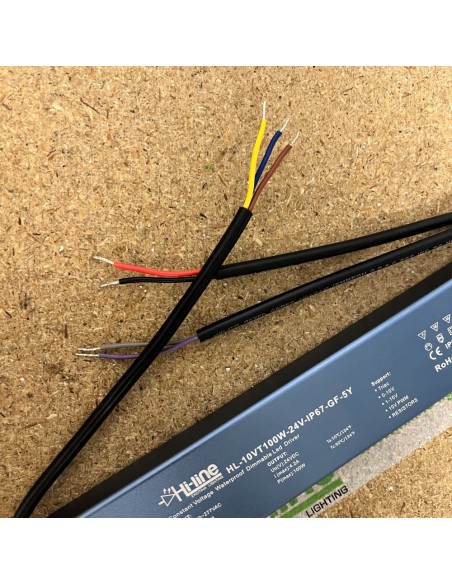

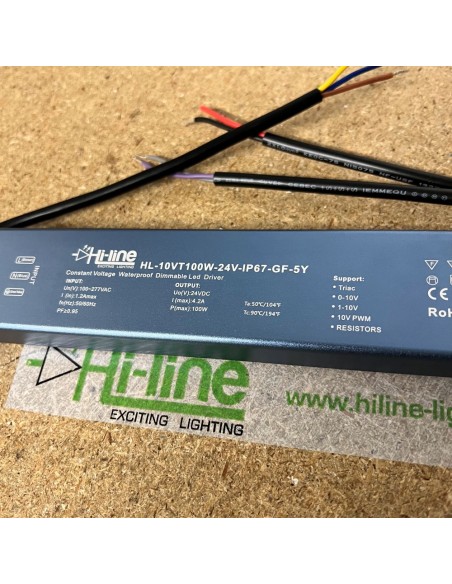

5-in-1 Dimming Options:
TRIAC Dimming
0-10V Dimming
1-10V Dimming
10V PWM Dimming
Resistance Dimming

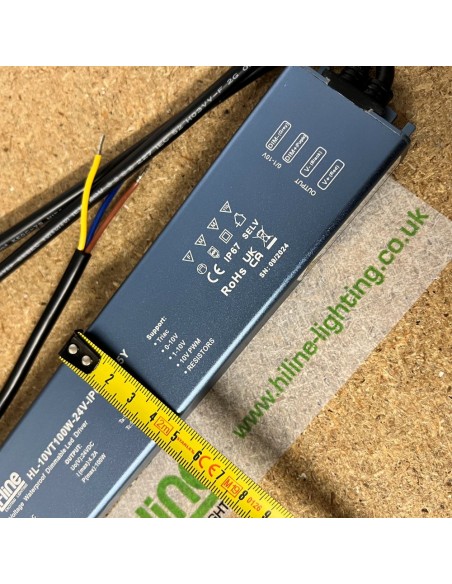

Enhanced Visual Comfort: Soft-on and fade-in function ensures a smooth transition, reducing eye strain and providing a more comfortable visual experience.
Wide Dimming Range: 0-100%, with the capability to start the LED at just 1%, offering precise control over light intensity.

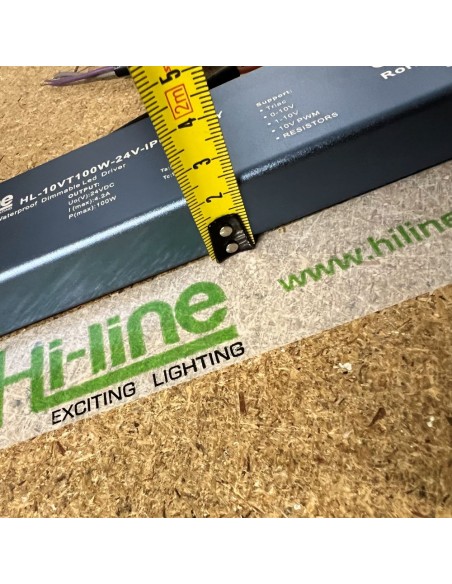

Flicker-Free Operation: Complies with IEEE1789 standards, ensuring flicker-free lighting across the entire dimming range with a high-frequency exception level (PWM 3500Hz).
High Efficiency: Operates at 90% efficiency, with a power factor (PF) greater than 0.95 and total harmonic distortion (THD) less than 10%, ensuring minimal power loss and maximum performance.
Comprehensive Protection Features:
Overload protection
Over-temperature protection
Short circuit protection
Over-voltage protection
Automatic recovery to safeguard your lighting system.
Longevity: Designed for durability, with an operational lifespan of up to 50,000 hours.
Technical Specifications:

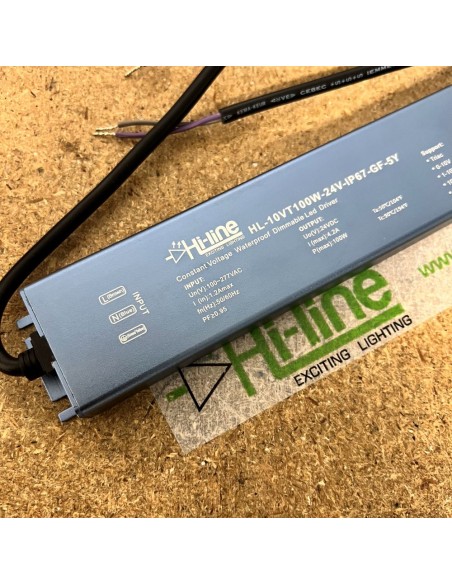

Input Voltage: 100-277Vac
Output Voltage: 24VDC ± 0.5VDC
Output Power: Maximum 100W
Output Current: Maximum 4.2A
Power Factor: > 0.95 at full load
Total Harmonic Distortion: < 10% at 230Vac, full load
Efficiency: 90%
Operating Temperature: -30°C to 50°C
Storage Temperature: -40°C to 80°C
Humidity: 20-95% RH, non-condensing
IP Rating: IP67 (dust and water-resistant)

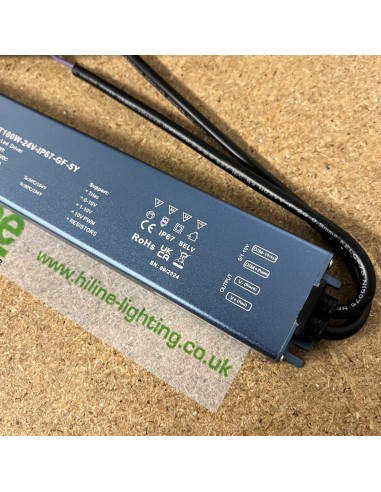

Certifications: UKCA, CE, IEC/EN61347-1, IEC/EN61347-2-13, EN55015, EN61000-3-2 Class C, IEC61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, IEEE 1789, RoHS compliant
Physical Specifications:

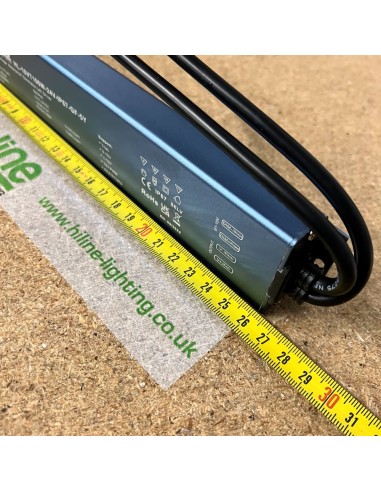

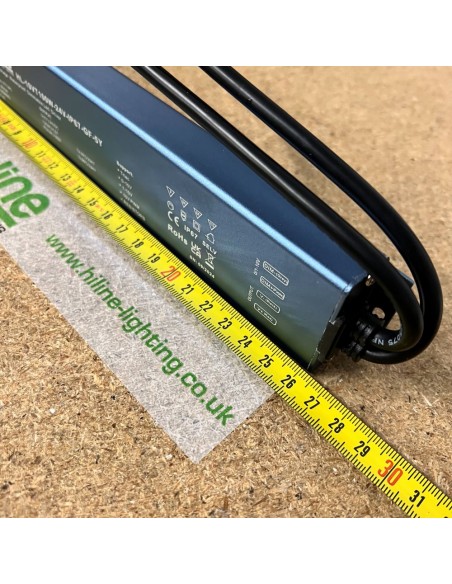

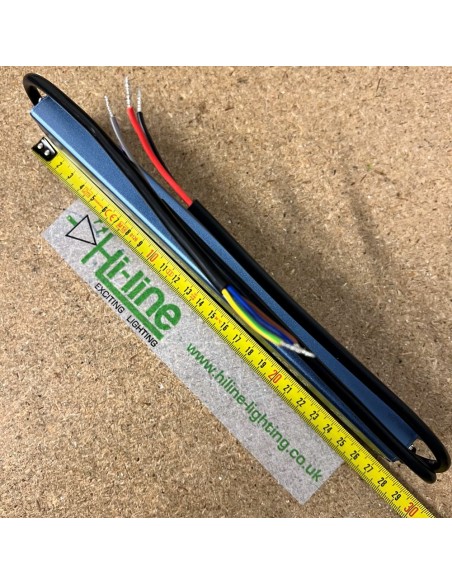

Dimensions: 260mm x 48mm x 20mm (L x W x H)
Weight: 530g per unit
Installation Guidance:
This driver is compatible with both leading and trailing edge dimmers, offering outstanding compatibility with various lighting systems, even those not specifically designed for mains dimming. However, it is crucial to ensure that wall dimmers are specified correctly to avoid compatibility issues. For instance, if you intend to dim a load of 100W, but your wall dimmer specifies a minimum load of 60W, the wall dimmer may not function correctly below this threshold, even though our driver can handle the load. This driver is one of our best concerning compatibility with other brands, providing reliable performance across diverse setups.
Suitable Applications:
Ideal for internal lighting applications, compatible with Class I, II, and III installations.
Professional Installation:
For optimal performance and safety, ensure that installation is carried out by a qualified professional, complying with all relevant regulations.
