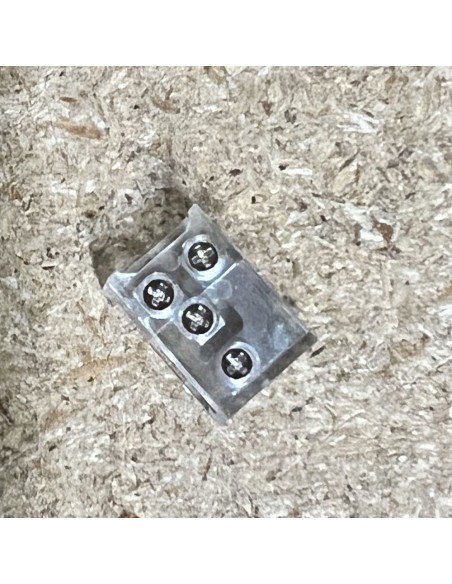

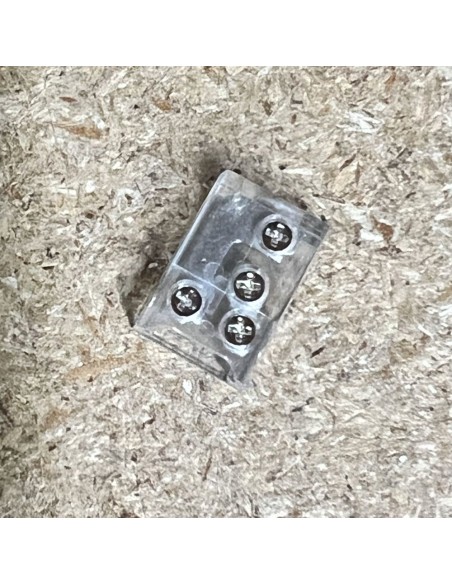

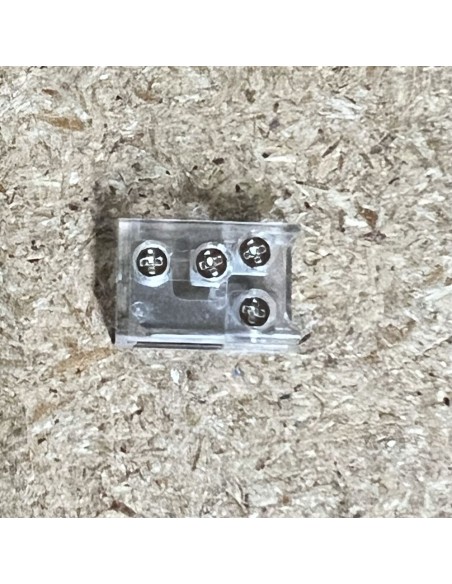

8mm LED Strip L/T Shape Screw Fixing Connector, 2 Pins for COB & SMD
Seamlessly join 8mm COB & SMD LED strips in "L" or "T" shapes with this screw fixing connector. Suitable for flexible and rigid strips, supports non-waterproof (IP20) and modified waterproof strips. Compatible with DC 5V-24V, max 6A
Important Product Details

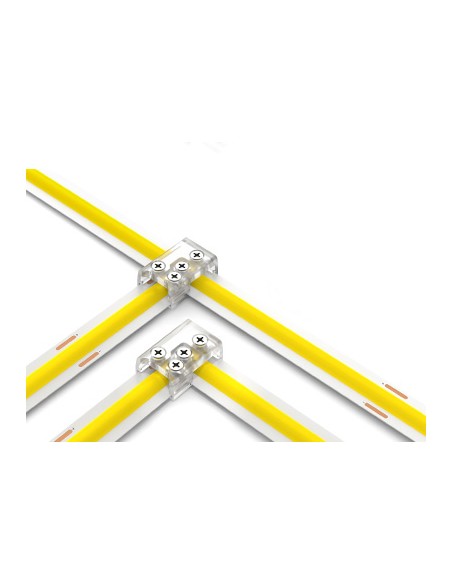

Introducing our versatile Screw Fixing Connector, specifically designed for Hi-Line Lighting LED strips, both SMD and COB types, with a width of 8mm. This innovative connector allows for seamless joining of single-colour LED strips in either an "L" shape or "T" shape, providing flexibility in your lighting installations.
Compatible with Hi-Line Lighting 8mm wide LED strips, this connector can also be used with other brands' 8mm LED strips, though compatibility is not guaranteed and returns are not accepted. The connector features three sides, each equipped with two screw terminals, allowing you to securely join LED strips. Use all three sides for a "T" shape connection or only two sides for an "L" shape corner connection.
Suitable for both flexible and rigid LED strips, this connector offers great adaptability in various installation scenarios. It is designed for non-waterproof (IP00/20) strips but can also be adapted for waterproof strips by carefully removing and reapplying the coating to maintain the desired IP rating.
Ideal for creating corners or branching strips in cabinet lighting installations, this connector eliminates the need for additional wiring. It supports a voltage range from 5V to 24V DC with a maximum current of 6A. The connector measures 16.3 x 11.4 x 6.4mm, ensuring it fits seamlessly into your lighting setups.
Specifications: Fixing Method: Screw Fixing Material: Polycarbonate, Copper Pin Quantity: 2 Pins Workable PCB Type: Flexible / Rigid 8mm, IP20 COB & High Density Voltage Range: DC 5V to 24V Maximum Current: 6A Dimensions: 16.3 x 11.4 x 6.4mm Width: 8mm Connection Type: Screw terminal for strip-to-strip connection
Installation Instructions:
"L" Shape Connection: Loosen the screw terminals on two sides of the connector. Insert the 8mm wide LED strips into the respective sides. Tighten the screws to secure the strips.
"T" Shape Connection: Loosen the screw terminals on all three sides of the connector. Insert the 8mm wide LED strips into the respective sides. Tighten the screws to secure the strips.
Important Note: Returns for connectors are not accepted due to our terms and conditions. Ensure all installations are performed by qualified professionals following relevant regulations.
Enhance your lighting projects with our Screw Fixing Connector 2 Pins for "L" or "T" shape strip-to-strip connections. Ideal for Hi-Line Lighting 8mm LED strips, compatible with both COB and SMD types.
