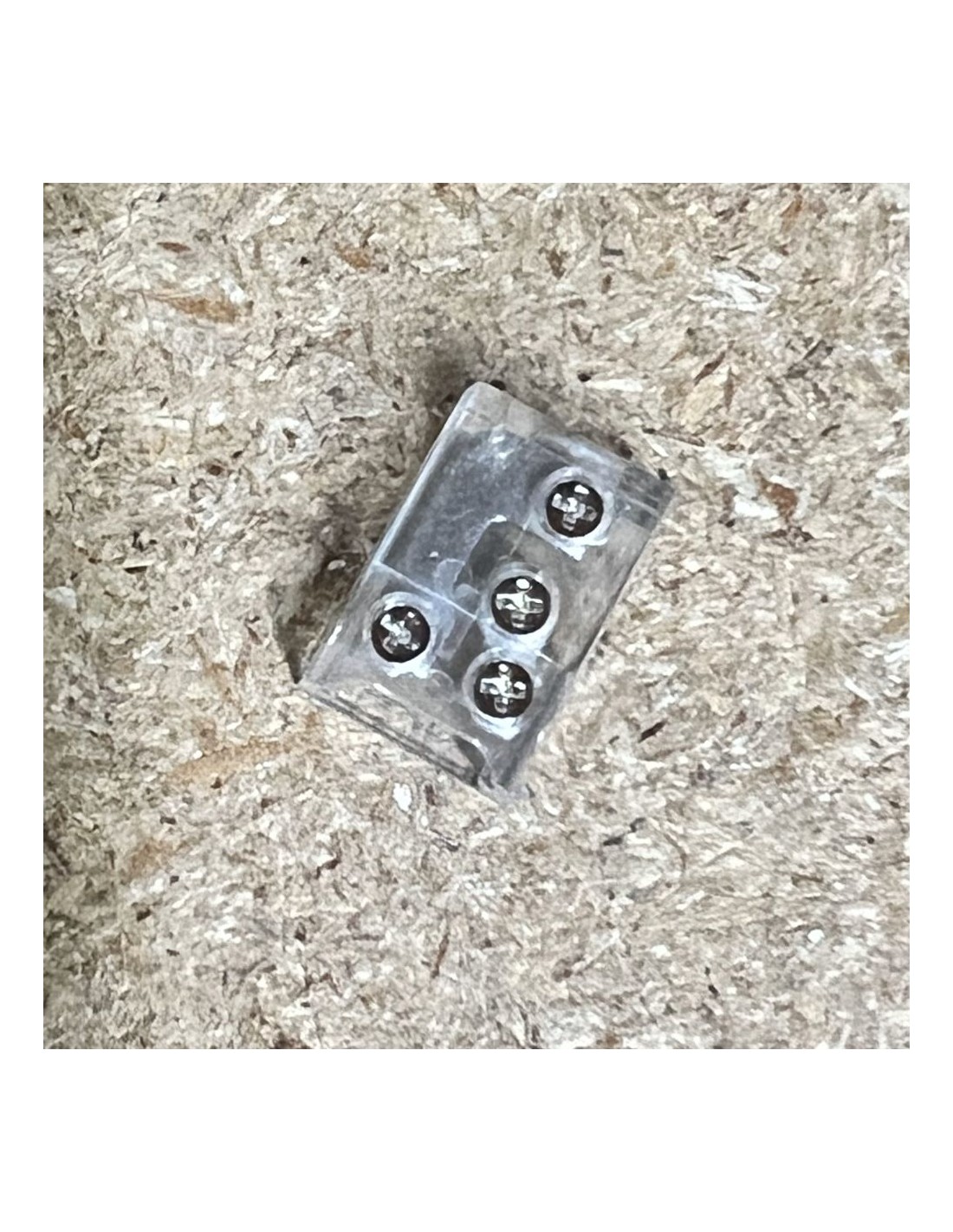

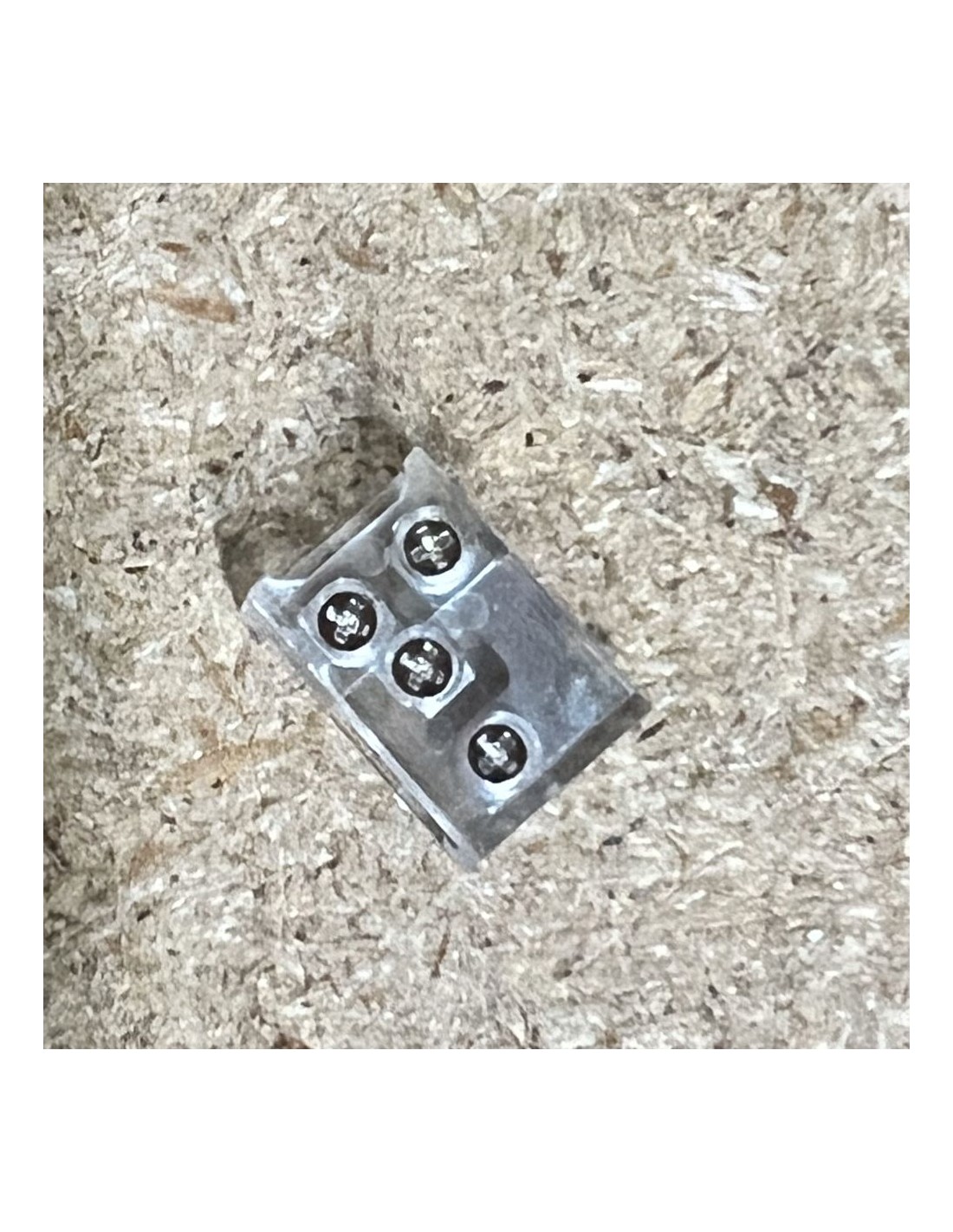

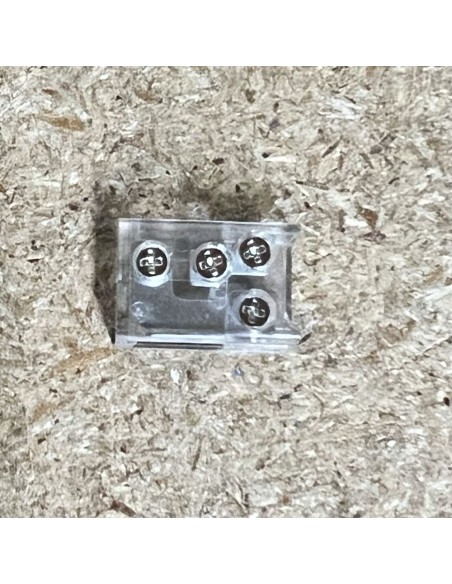

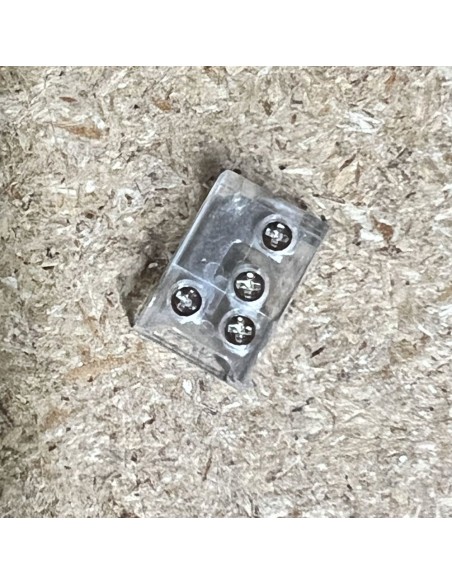

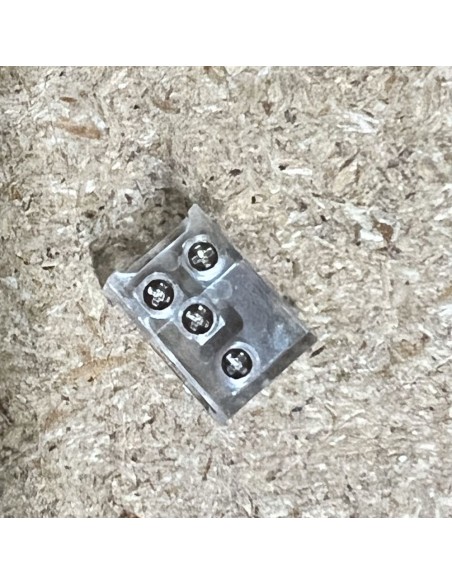

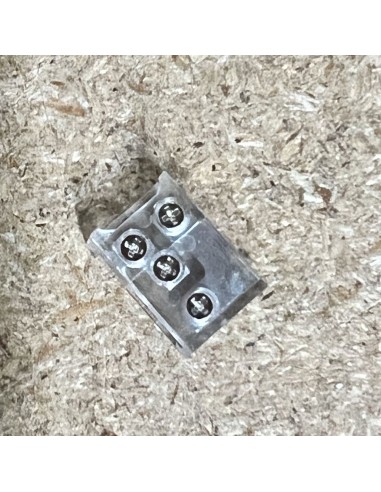

Presenting our adaptable Screw Fixing Connector, created specifically for Hi-Line Lighting LED strips, both SMD and COB types, with a width of 10mm. This connector is designed to enable seamless joining of single-colour LED strips in either "L" or "T" shapes, enhancing flexibility in your lighting installations.

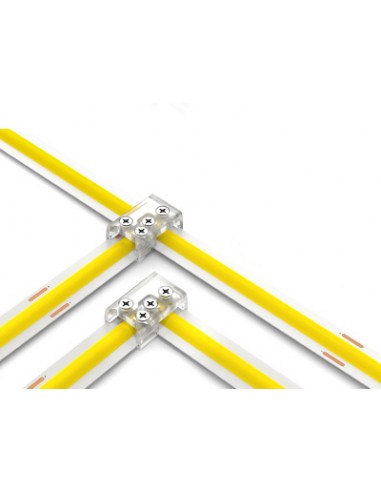

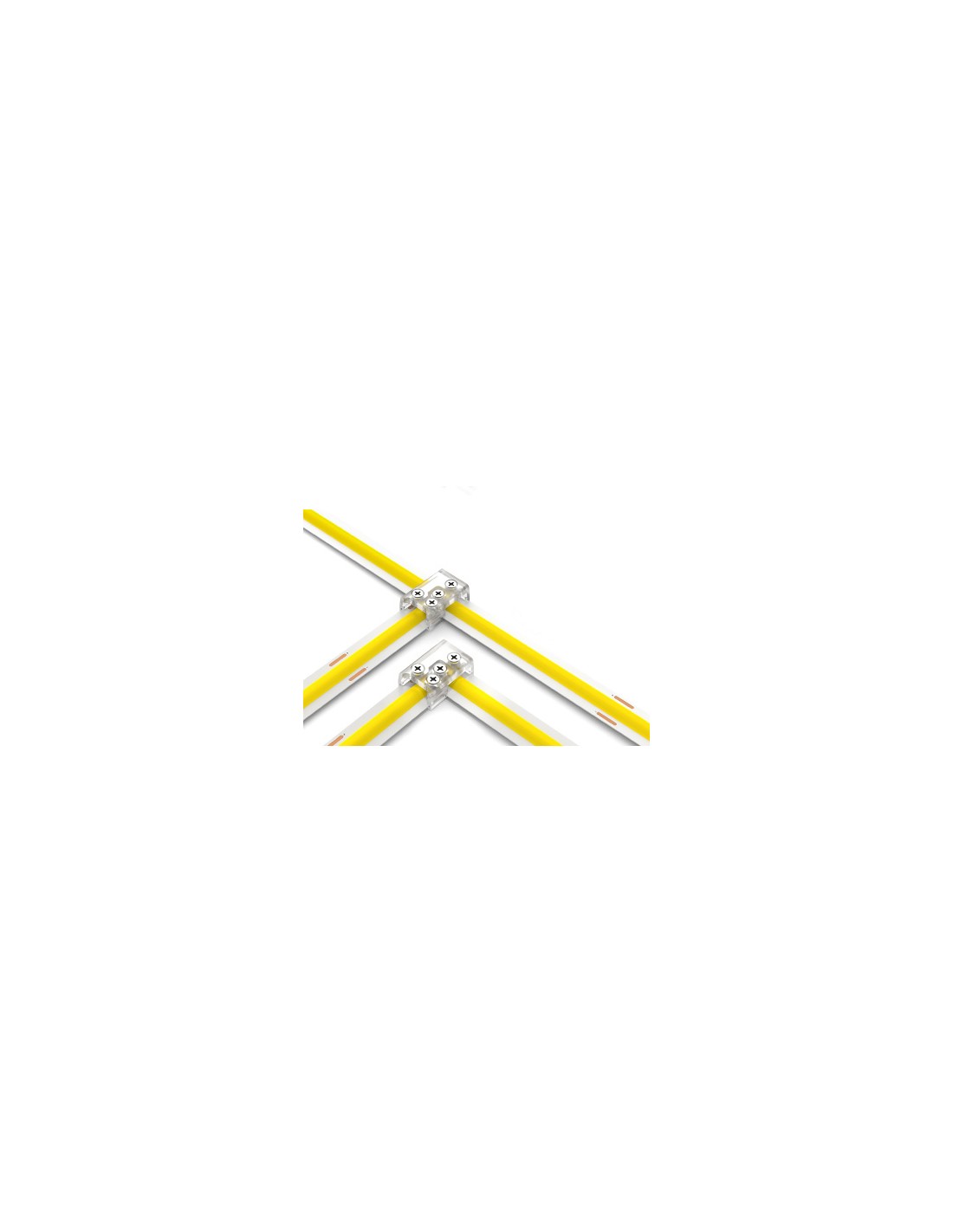

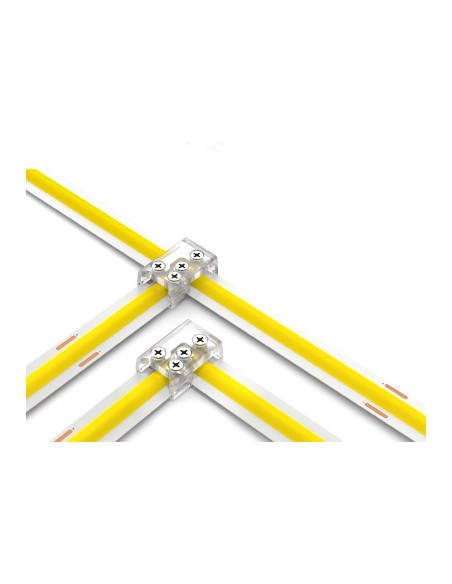

This connector perfectly fits Hi-Line Lighting 10mm wide LED strips and can also accommodate 10mm LED strips from other brands, though we do not guarantee compatibility and cannot accept returns for these. It features three sides, each with two screw terminals, allowing you to securely join LED strips. Use all three sides for a "T" shape or just two sides for an "L" shape corner connection.
Suitable for both flexible and rigid LED strips, this connector is ideal for various installation scenarios. It is designed for non-waterproof (IP00/20) strips but can also be adapted for waterproof strips by carefully removing and reapplying the coating to maintain the desired IP rating.
Perfect for creating corners or branching strips in cabinet lighting installations, this connector eliminates the need for additional wiring. It supports a voltage range from 5V to 24V DC with a maximum current of 6A. Measuring 16.3 x 11.4 x 6.4mm, this compact connector is designed to fit seamlessly into various spaces.
Specifications: Fixing Method: Screw Fixing Material: Polycarbonate, Copper Pin Quantity: 2 Pins Workable PCB Type: Flexible / Rigid 10mm, IP20 COB & High Density Voltage Range: DC 5V to 24V Maximum Current: 6A Dimensions: 16.3 x 11.4 x 6.4mm Width: 10mm Connection Type: Screw terminal for strip-to-strip connection
Installation Instructions:
"L" Shape Connection: Loosen the screw terminals on two sides of the connector. Insert the 10mm wide LED strips into the respective sides. Tighten the screws to secure the strips.
"T" Shape Connection: Loosen the screw terminals on all three sides of the connector. Insert the 10mm wide LED strips into the respective sides. Tighten the screws to secure the strips.
Important Note: Returns for connectors are not accepted due to our terms and conditions. Ensure all installations are performed by qualified professionals following relevant regulations.
Upgrade your lighting projects with our Screw Fixing Connector 2 Pins for "L" or "T" shape strip-to-strip connections. Ideal for Hi-Line Lighting 10mm LED strips, compatible with both COB and SMD types.
