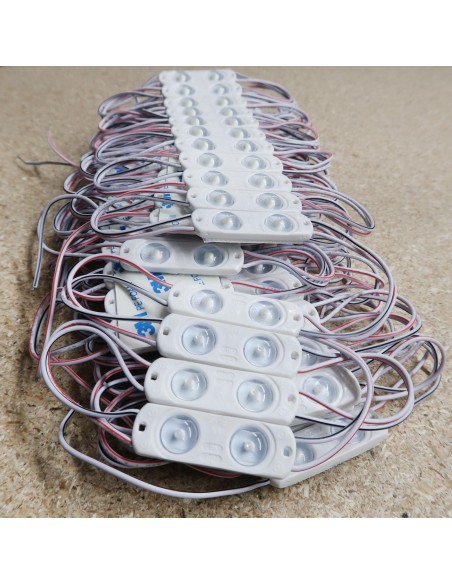

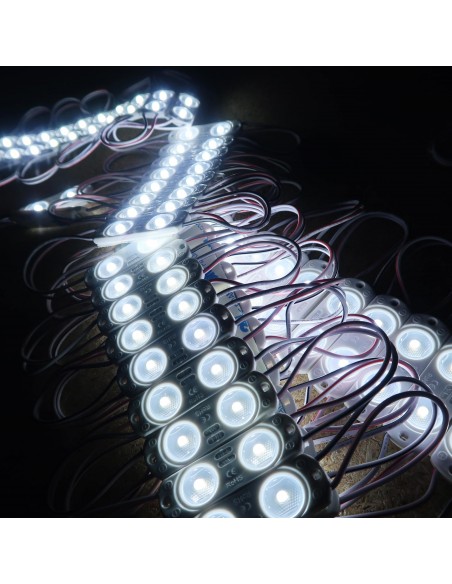

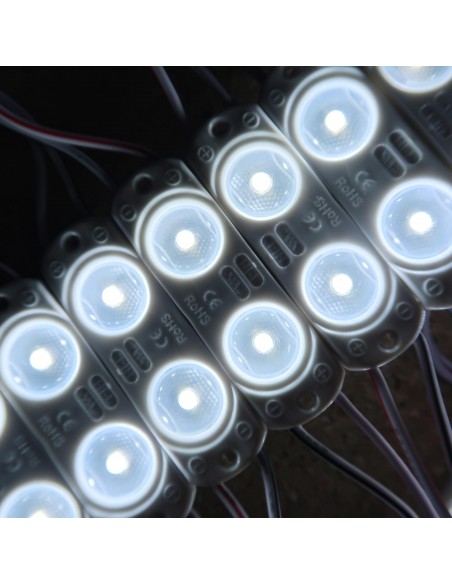

LED Channel letter module | 12V | 0.8W | 88Lm white | 7000K | 170° | IP68

Key Features:

  • Pack of 100 modules
  • Ideal for sign lighting applications 3-6cm depth
  • Voltage: 12V DC
  • Module Power Consumption: 0.8W
  • Colour Temperature (CCT): 7000K
  • LED Module Beam Angle: 170°
  • IP Rating: IP68

Important Product Details

  • optional 250 char. max
HL-CL003
PRE-ORDER
£100.00
(£
120.00
with VAT)

(£1.00 module)

VAT excluded

Tags:


LED Channel Illuminated letter sign back lighting module 12V 0.8W 88Lm white 7000K 170° IP68

This LED module can be used for channel letters and light box back lighting, will be best performing for 3-6cm depth signs.

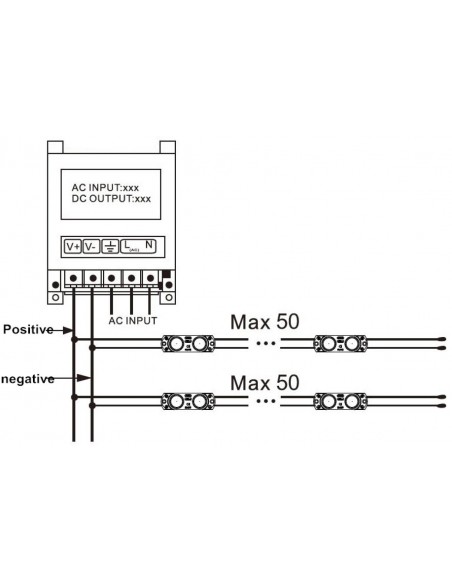

Maximum series connection is 50 pieces

50 modules chain measures approximately 7.85m

The length of cable between modules is 100mm

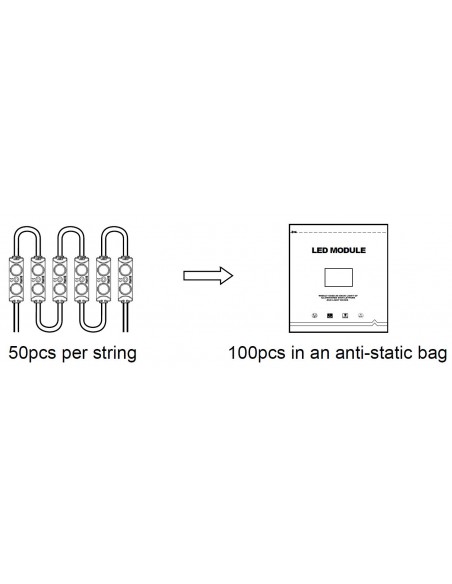

Packing: 50pcs per string, 100 pcs per bag

Price is for 100 modules (2 chains of 50 modules each)

Features:

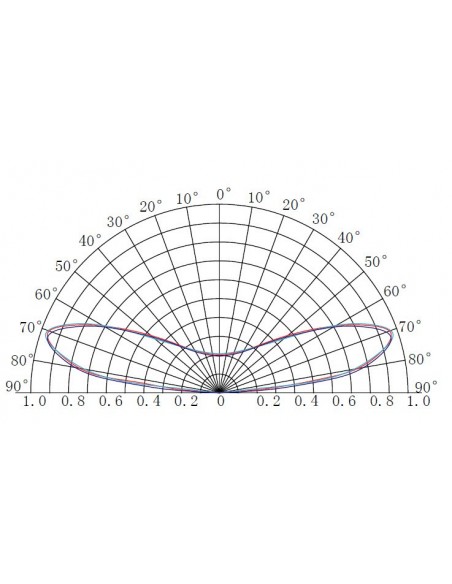

Special lens design for 170 degrees beam angle with even light distribution

Powered by high efficiency SMD2835 LED chip

Built-in constant current LED drive engine

Chips are 99.99% gold threaded, pure copper bracket coated with silver

SDCM less than 3 (BIN)

IP68 mould: anti-dust, anti-moisture, fully waterproof, anti-shock

Certification: CE, RoHS, UL

5 Years Warranty

Best for lightbox/letter Depth
3-6 cm
Brand
Hi-Line
Colour
Pure White
Colour rendering (CRI in ra)
80
Colour Temperature (CCT)
7000K
LED Chip
SMD 2835
LED Module Beam Angle
170°
LED Module Controllability
Constant Voltage driver
Max. No. of Modules in series
50 modules
Module Power Consumption
0.8 Watt
Module built-in driving method
Constant Current
Module Luminous Flux / Efficacy
88lm (110 Lm/W)
Modules in pack qty
100

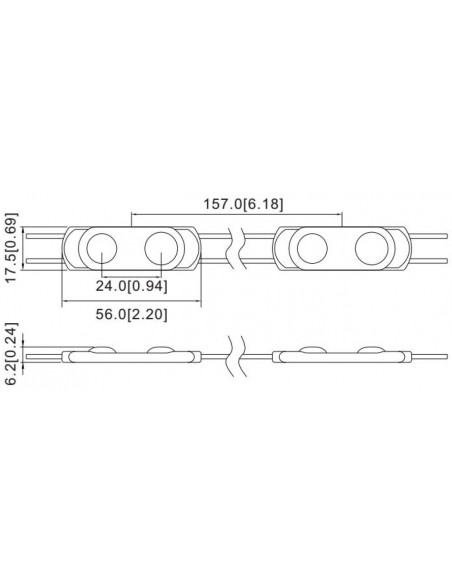

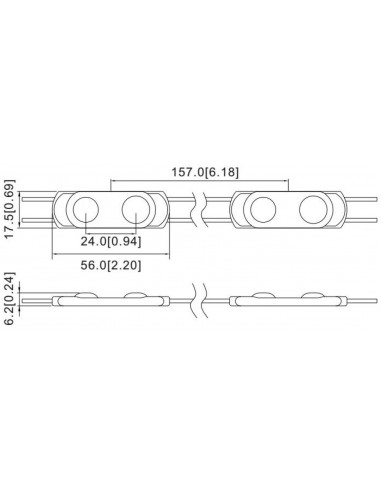

Module Dimension (mm)
56*17.5*6.2
IP Rating
IP68 (Underwater waterproof)
Voltage
12V DC
Warranty
5 Years
