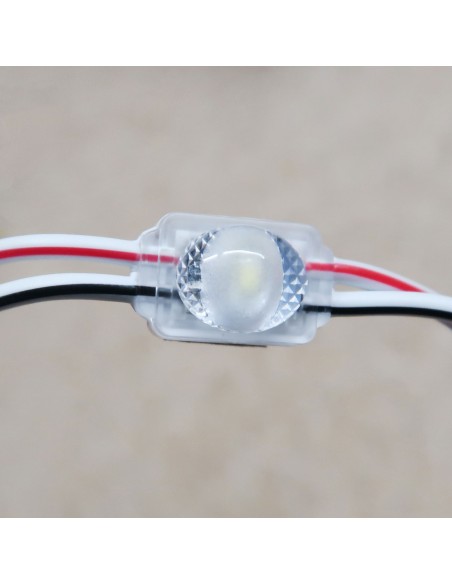

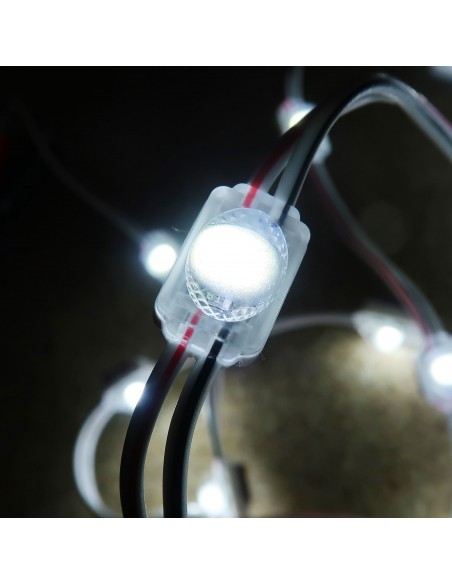

Single Micro Sign LED module | Pure white | 24V | 0.24W | 7000K | IP67 (string of 40)

Introducing our premium Halo-Lit LED Backlighting System, expertly crafted to elevate your reverse channel letters with a refined, attention-grabbing radiance. Our energy-efficient LEDs supply consistent and vivid illumination, producing a captivating halo effect that draws the eye to your signage. Simple to install and maintain, this LED system is ideal for boosting your brand's visibility and leaving a lasting impression. Enhance your signage with our Halo-Lit LED Backlighting System and discover the difference in elegance and sophistication.

Micro sign LED single LED module pure white 7000K 24V - 0.24W - IP67 (1 x string of 40) - 129 lm/w - powered by one high output Osram LED

Perfect for mini signs 2 to 6cm depth or any other lighting application that waterproof micro LEDs are needed.

Micro Sign LEDs can be employed in the creation of illuminated signage and lettering, available in white, red, and amber, one two or 3 LEDs per module (check separate listings for other versions).

Fully sealed mini LEDs are weather resistant with IP67 rating, making them suitable for interior and exterior applications. LED chain for highlighting lines and edges and for backlighting complex contours, letters and symbols in signage applications.

24V - 0.24W - 129 lumens per watt powered by Osram chip

Ultrasonic soldering technology

Elliptical 180*140°optic lens for uniform illumination

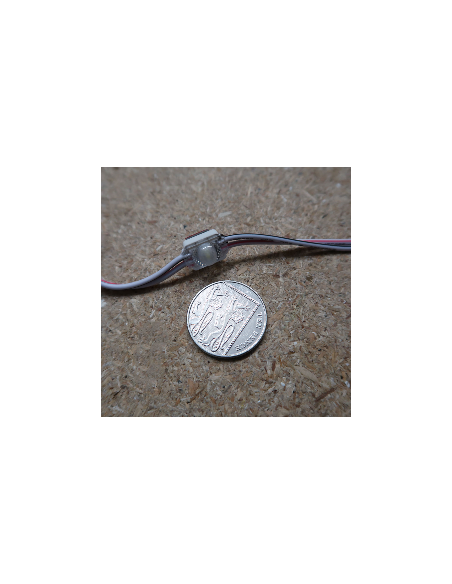

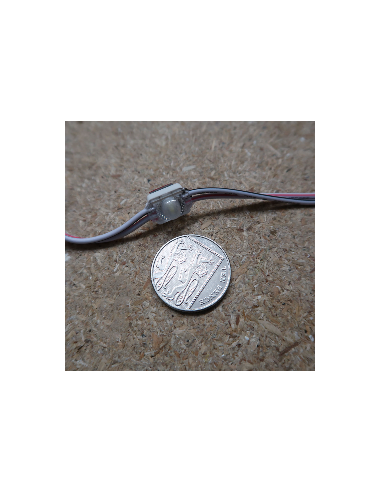

Module dimension W/L/H: 14x9x9mm

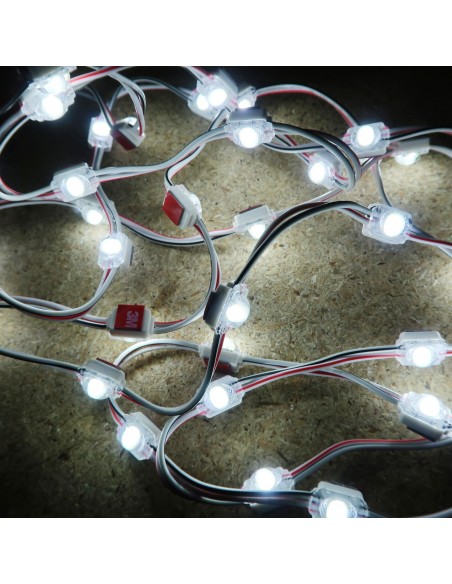

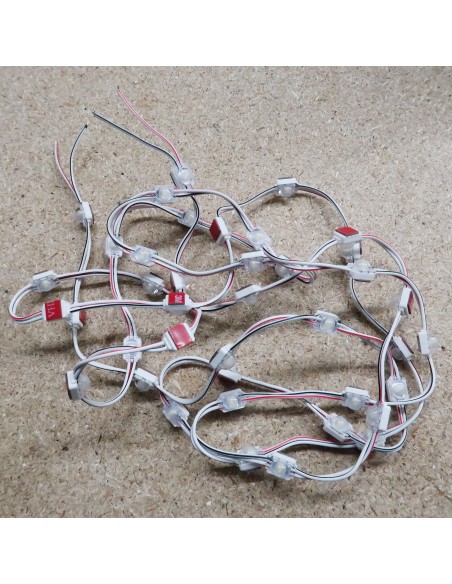

40 pcs per string - 2450mm total length.

Each string consists of 40 modules; however, you can cut and use the modules individually or in smaller sections as needed. Each module is self-contained, allowing for precise customisation to suit different installation lengths and shapes.

Maximum series connection is 40 modules, for the LED driver it is suggested using 20% additional wattage than the power consumption of connected modules; it is not recommended to have the power supply run at 100% of its capacity for any LED application. The power wire cross sectional area (between power supply and first module) should be calculated accordingly to avoid voltage drop.

Please download datasheet at the bottom of this page for more details

Price includes 40 modules (1 x string of 40)

Nominal life-time up to 50,000 h (L70 at ta 60 °C)

5 Years Warranty
