48cm Cuttable Side-lit 12 LEDs Bar for slim 6-12cm Depth Light Boxes
Upgrade your lighting solutions with our Cuttable Side-lit LED Bar for slim 6-12cm Depth Light Boxes, engineered for optimal performance in 6-12cm depth double-sided and single-sided light boxes. These LED bars feature high-output 12 x 3030 LEDs and a sophisticated 15x45° optic lens, ensuring superior illumination suitable for various professional settings such as airports, metros, banks, buildings, and shopping malls.
Important Product Details
Premium side-lit LED bars with elliptical lens, suitable for 6-12cm depth light boxes, IP20 rated, and cuttable every 8cm
Applicable For 6-10 CM Depth Single or Double-sided Light Box
Key Features:
Optimized Side-lit LED Bar, cuttable for slim 6-12cm depth light boxes.
High Output 3030 LEDs: Delivers bright and even light distribution, perfect for high-visibility applications.

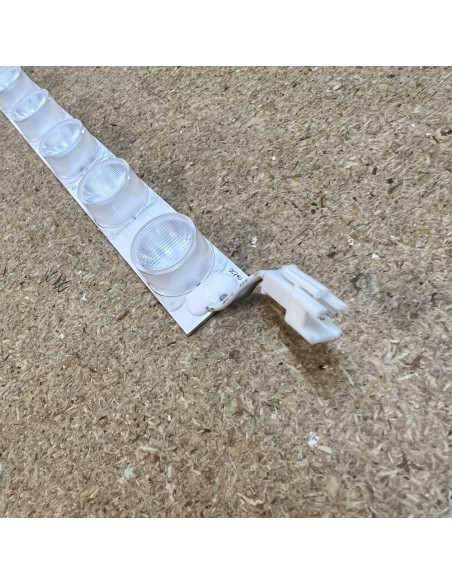

Elliptical Lens Design: The 15x45° optic lens (12pcs) maximises light coverage and efficiency.
Constant Current Technology: Ensures stable performance, enhancing the lifespan of the LEDs, and works seamlessly with our constant voltage LED drivers without the need for special constant current drivers.
Cuttable Design: Easily cut the LED bars at the designated marks to fit your specific requirements.

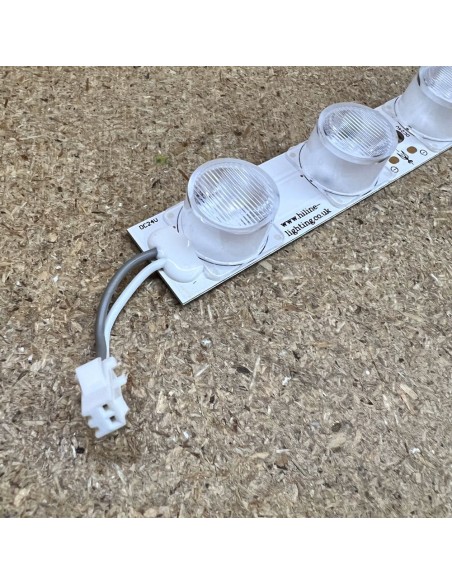

Seamless Connectivity: Easily connect modules using silicone connectors for a smooth installation process. You can connect up to 6 pieces of the HL-OEL012 in series or daisy chain configuration.
Certified Excellence: Meets UKCA, CE, RoHS, UL, TUV, BIS, CB, and LM-80 standards for safety and performance.
Premium Quality: Do not confuse these high-spec LED bars with similar products sold elsewhere; these are premium quality, designed for superior performance and durability.
Specifications:
Power: 9W
Voltage: DC 24V
Luminous Flux: 810 lm
Colour Rendering Index (CRI): >70
Luminous Angle: 15x45°

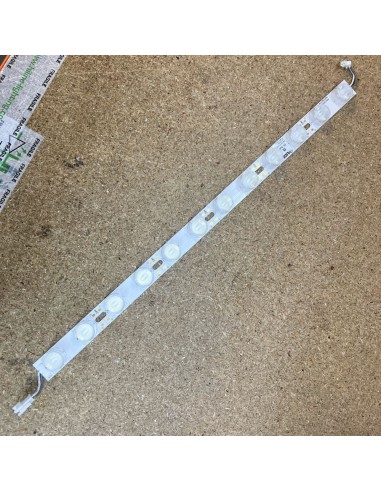

Dimensions: 480 x 23 x 13.8 mm (12 LEDs)

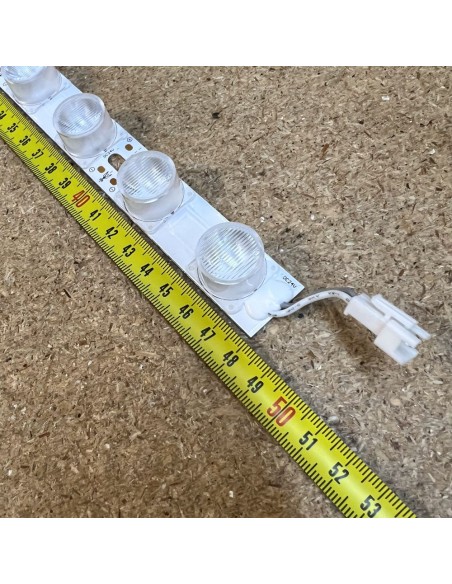

Cuttable per 2 LEDs 8cm
Max Series Connection: Up to 6 bars in series
Lightbox depth: For Slim 6-12cm Depth Light Box
Protection Rating: IP20
Operating Temperature: -25°C to +60°C
Storage Temperature: -25°C to +70°C
Applications:
These LED bars are ideal for both double-sided and single-sided light boxes, particularly suited for shallow light boxes with a depth of 6-10cm. They offer versatile lighting solutions for various professional environments, providing bright, eye-catching displays in settings such as airports, metros, banks, commercial buildings, and shopping malls. Additionally, these LED bars are cuttable per 2 LEDs (8cm), allowing for customization to fit specific installation needs.
Installation Guidance:
To ensure optimal performance and safety, we recommend professional installation. Properly isolate and protect all wiring points against corrosion. Follow the detailed installation guide to correctly secure and connect the modules.
Transform your light boxes with the exceptional quality and reliability of our Premium Side lit LED Bars. Enhance your displays with brilliant, even lighting that stands out.
Max Series Connection: Up to 6 bars in series. For larger installations, you can connect multiple series of up to 6 bars each in parallel to your power supply unit (PSU), ensuring the overall current capacity is suitable for the combined load.
Note: This listing is for the HL-OEL012. The HL-OEL024 is available as a separate listing.
Looking for Related Products or Accessories?
Discover compatible products and accessories by clicking the 'Related Products' tab at the top of this product description on desktop, or just after this section on mobile devices. For detailed specifications, the 'Product Specification' tab is also available at the top of this description, offering immediate access to important product details. If you need technical data or installation guides, the 'Attachments' tab is located in the same area. To refine your search within any product category, the "REFINE BY" filter system is positioned on the left side of the screen on desktops and at the top of the page on mobiles, ensuring a seamless browsing experience.
- Best for lightbox/letter Depth
- 6-12 cm
- Brand
- Hi-Line
- Colour
- Pure White
- Colour rendering (CRI in ra)
- 75
- Colour Temperature (CCT)
- 6500K
- LED Chip
- Osram LED Chip
- LED Module Beam Angle
- Elliptical 15/45°
- LED Module Controllability
- Constant Voltage driver
- Max. No. of Modules in series
- 6 modules
- Module Power Consumption
- 9 Watt
- Module built-in driving method
- Constant Current
- Module Luminous Flux / Efficacy
- 810lm (90 Lm/W)
- Modules in pack qty
- 1
- Module Dimension (mm)
- 480x23x13.8
- IP Rating
- IP20 (Non-waterproof)
- Voltage
- 24V DC
- Warranty
- 5 Years
