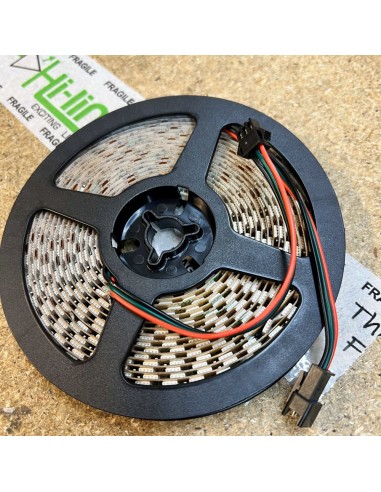

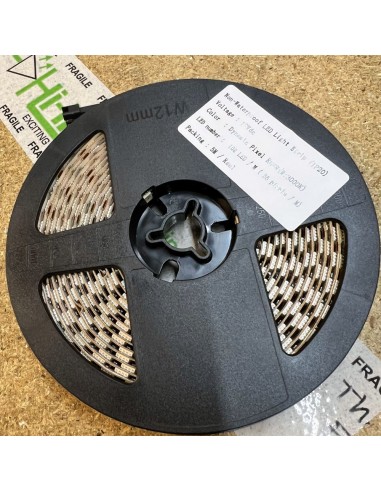

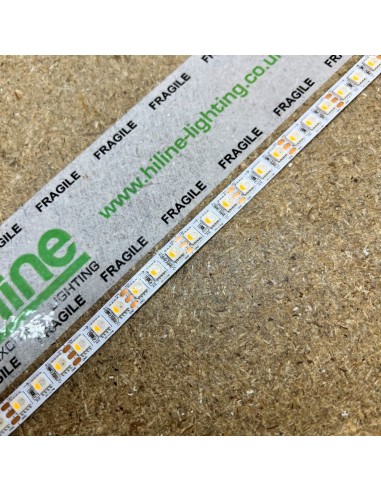

Introducing the 5-metre Hi-Line Pixel RGBW LED strip, your ultimate solution for high-performance lighting. Ideal for architectural design, entertainment spaces, or retail environments, this LED Neon Flex combines quality and performance to create stunning visual effects.
This product operates at a user-friendly 12V and features 108 SMD5050 Epistar RGBW 4-in-1 LEDs per metre, with 32 pixels per metre, giving you dynamic pixel control at 36 pixels per metre, powered by the SK6812 IC code. Each pixel consists of 3 LEDs, allowing for precise and vibrant colour control.
With a power consumption of 20 Watts per metre, this LED strip offers bright and consistent illumination. The unit cutting length is 2.78cm, which equals 3 LEDs, providing flexibility in your installations. The strip comes in a 5-metre roll, with a maximum section length of 5 metres, recommended to be powered from both ends to ensure even brightness.
Specifications:
Voltage: 12V
LED Type: SMD5050 Epistar RGBW 4-in-1
LED Density: 108 LEDs per metre
Pixel Control: 36 pixels per metre (SK6812 IC code)
Power Consumption: 20W per metre
Cable colour codes: Red = +(Positive), Black = - (negative), Green = Data line

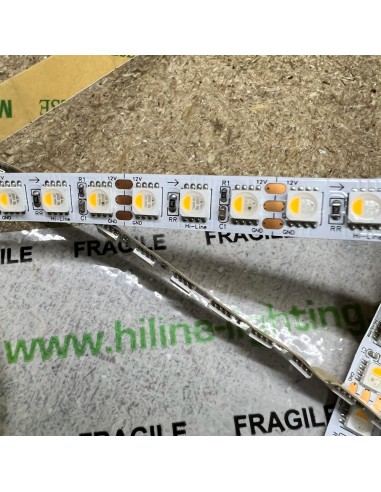

Unit Cutting Length: 2.78cm (3 LEDs)
Maximum Section Length: 5 metres (with power fed from both ends)
Pixel Composition: 3 LEDs per pixel
Roll Length: 5 metres
pcb width: 10mm
IC Code: SK6812
Important Note:
To fully utilise the dynamic pixel control of this LED strip, a controller that supports the SK6812 protocol is required. These controllers allow you to customise and program the strip for your desired lighting effects, making it perfect for creative and professional installations.
