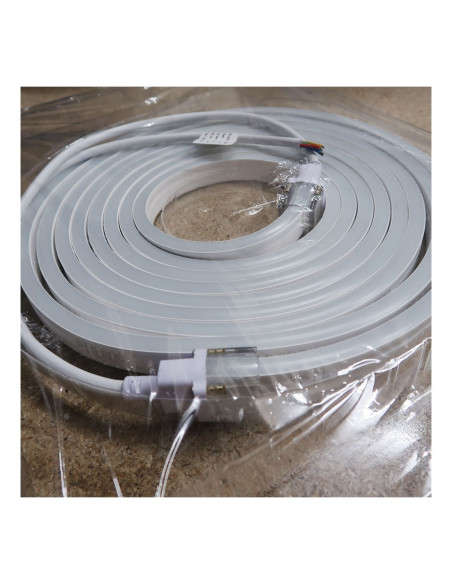

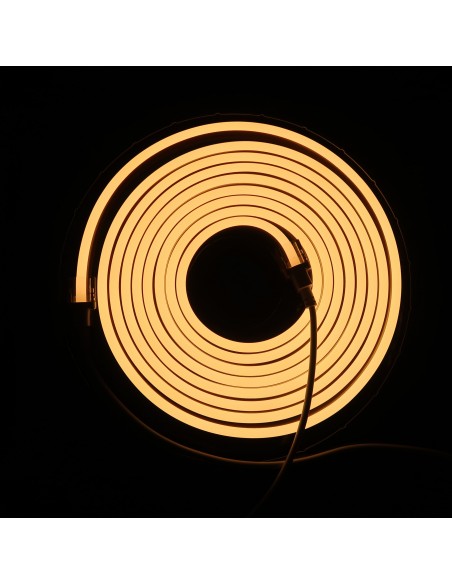

Ready to use 5 metres Kit Warm White LED neon flex 2800K 24V IP65/IP67 horizontally bendable 10mm wide x 20mm height (Does not include power supply)
LED Neon flex powered by white colour SMD2835 LED chips
10mm wide x 20mm height

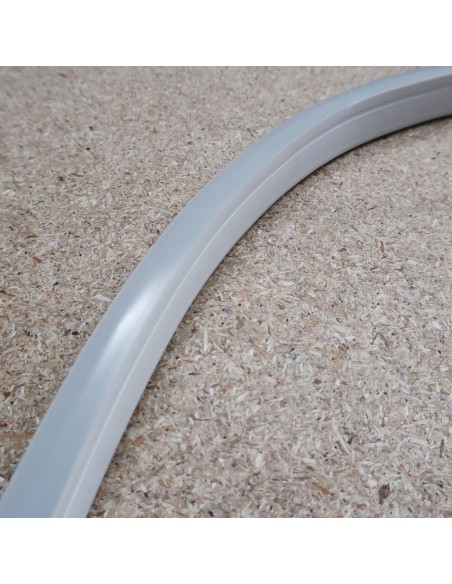

Flat design for architectural lighting. Sits flush along edges and provides a 160 degree beam angle.
5.50 W/m – 24V DC – 96 LEDs/m – IP65/IP67 – 2 wire
CCT 2800K, light output 250 lm/m
LED Neon flex can be cut at every 12.5 cm
Please Note: We do sell this product in 5/10/20 and 50 Metre length (separate listings). You will receive 2 tail ends pre-installed and ready to use when you purchase a any kit 5/10/20 or 50 meters. Also, if extra connectors are required, these need to be purchased separately.
Returns are not accepted if kit lengths being cut. Only Faulty returns will be accepted.
If purchasing a 50 metre roll, please avoid testing the entire length for long periods - you will risk burning out the chips.
The stated price is for ready to use 10m LED Flex kit in warm white (2800K) powered by 960 x SMD2835 LEDs – IP65/IP67, 24V DC (Does not include power supply).
3 year warranty
The high quality of Hi-Line LED Neon flex products ensures low decay, which increases the LED's lifespan and assures that the level of the brightness is kept constant throughout the LED's estimated life.
Please do NOT connect more than 5 meters of LED flex in series. A LED flex of more than 5 meters in length will overloaded, due to the increased amount of current passing through, resulting in the damage of the internal FCB and failure of the product.
Please note that 20m of this product can be installed in a single run only with 24V power fed from both sides in parallel. Alternatively you may power LED Neon flex (24V DC) in the middle of the run (leaving 10 meters LED flex to the left and 10 meters to the right). NOTE: If powering from both ends, one connector must be our "reverse" style, which is included in the kit. Additional reverse style power connectors can be found HERE!
All Hi-Line LED neon flex are PWM dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the product.
LED neon flex is fully compatible with Lutron, Fibaro, Rako or ANY conventional constant voltage LED controller available on the market. We do also offer a wide range of single colour LED controllers including wireless, DMX512, ZigBee, DALI and and 0/1-10V to choose from.
Selection of the LED driver (LED switch mode power supply/PSU) depending on the maximum LED Neon Flex length
To consider best power supply performance, we suggest using 20% higher capacity (Wattage) of what the rated power consumption of neon flex will be.
Note: for driving single colour LED neon flex, you just need the flex, power connector and LED driver. If dimming is required you will have to combine the LED-Driver with a single colour LED dimming controller. In such a case, the LED driver is not required to be dimmable. Brightness control (dimming) and colour adjustment is still possible through the controller.
Notes for Saunas and Steam Rooms:
If you require LEDs for saunas and steam rooms, please refer to our range of IP68 LED strips, designed to withstand temperatures of up to 110 degrees Celsius.
