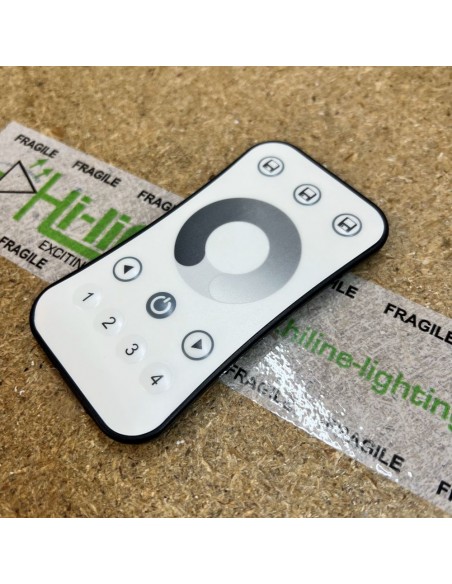

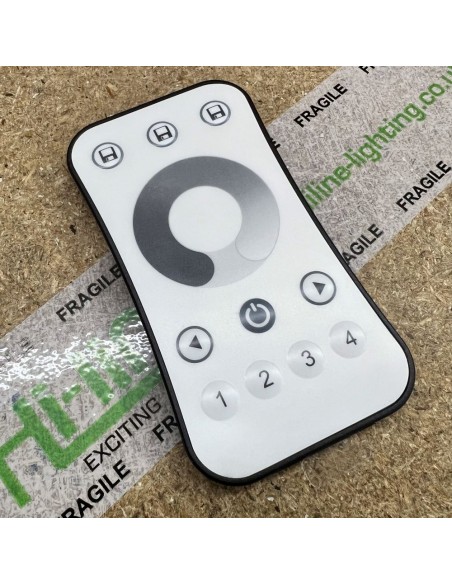

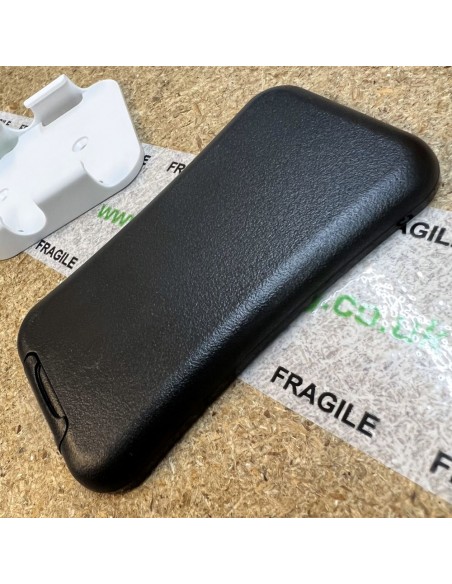

The Hi-Line 4-Zone Dimming Remote Control (Model: R6) offers advanced lighting management capabilities, making it ideal for complex lighting environments. With this remote, you can easily adjust the brightness in up to four separate zones, ensuring that every space is perfectly lit according to your needs.
Key Features:
Multi-Zone Control: Seamlessly manage up to four different lighting zones with independent controls for each.
Smooth Dimming: Experience flicker-free dimming from 0-100%, allowing you to set the perfect mood.
Extended Range: Utilises 2.4GHz RF technology to ensure reliable communication up to 30 meters, even through walls and obstacles.
Ergonomic Design: The remote is designed for comfortable use, featuring a user-friendly interface and a convenient wall holder.
Technical Specifications:
Range: Up to 30 meters
Frequency: 2.4GHz RF
Power Supply: 1 x 3VDC(CR2032)
Operating Conditions: -30°C to +55°C
Certifications: CE, RoHS compliant
Application Areas:
Residential Lighting: Ideal for homes where different rooms or areas require tailored lighting.
Commercial Spaces: Perfect for businesses such as offices, hotels, and retail environments where lighting control is essential.
Smart Homes: Easily integrates with existing smart lighting systems for enhanced control.
What's in the Box:
1x Hi-Line 4-Zone Dimming Remote Control (R6)
1 x CR2032

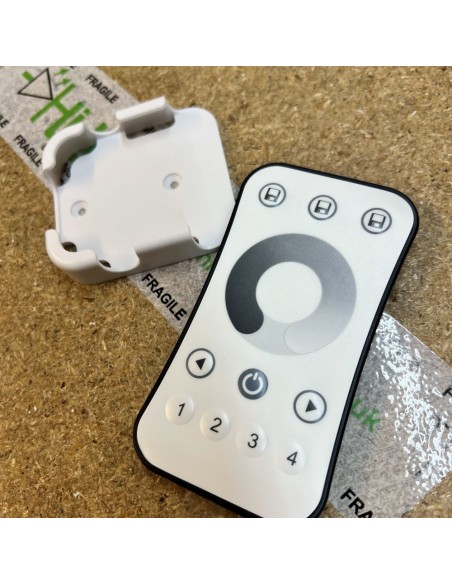

1x Wall Holder
1x User Manual
Installation & User Guide: Pairing the remote with compatible RF dimming controllers is simple and quick. For detailed instructions, please refer to the provided user manual.
Additional Information: For custom orders, bulk purchases, or additional support, please contact our customer service team.
To pair an optional RF receiver controller with this remote control, follow these steps:
Using the Controller's Match Key:
Press the match key on the controller.
Immediately press the on/off key (for a single zone remote) or the zone key (for a multi-zone remote) on the RF remote.
Using Power Restart:
Turn off the power, then switch it back on.
Immediately press the on/off key (single zone remote) or zone key (multi-zone remote) three times on the remote.
Note: Several matching RF receivers/controllers are available and sold separately.
To find matching receivers, use the "Related Products" tab. For detailed instructions, please refer to the controller's product pages.
