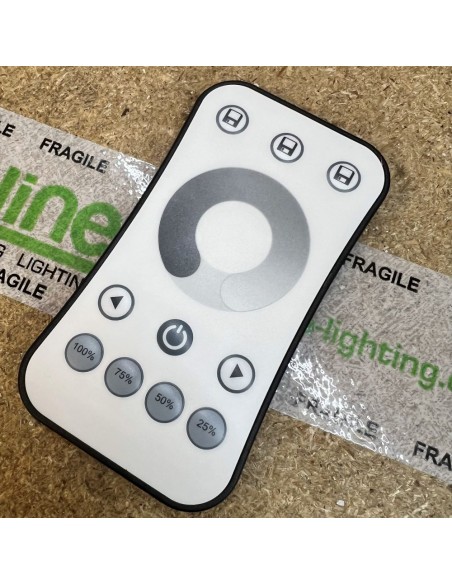

Product Overview: The Single Zone R6-1 Dimming Remote Control is a sleek and sophisticated solution designed to offer precise lighting management for your LED systems. With its advanced RF technology, this remote provides smooth, flicker-free dimming, allowing you to create the perfect ambience in any space. Whether you’re looking to enhance the comfort of your home or streamline the lighting in a commercial environment, the R6-1 offers reliable and user-friendly control.
Key Features:
Single-Zone Control: Tailored for managing a single lighting zone, this remote offers straightforward control over brightness levels, making it ideal for focused lighting needs in specific areas.
Smooth Dimming: Enjoy seamless dimming capabilities from 0-100%, ensuring that you can easily set the desired mood with precise light adjustments.
Extended Range: The remote utilises 2.4GHz RF technology, providing a reliable connection with a range of up to 30 metres, even through walls and obstacles, ensuring consistent control.

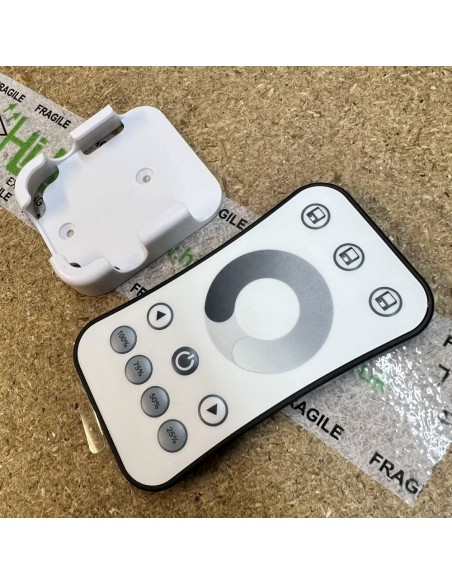

Ergonomic Design: Designed for ease of use, the R6-1 remote features a comfortable grip and an intuitive interface, making it simple to adjust your lighting settings. It also comes with a convenient wall holder to keep it within easy reach.
Battery-Powered: Operates with a single 3VDC CR2032 battery (included), offering flexibility and portability without the need for frequent recharging.
Technical Specifications:
Control Range: Up to 30 metres
Frequency: 2.4GHz RF
Power Supply: 1 x 3VDC (CR2032)
Operating Conditions: Suitable for use in temperatures ranging from -30°C to +55°C
Certifications: CE, RoHS compliant, ensuring it meets the highest safety and environmental standards
Application Areas:
Residential Lighting: Perfect for homes where specific rooms or zones require individual lighting control, such as living rooms, bedrooms, or home offices.
Commercial Spaces: Ideal for businesses needing precise lighting control in areas like meeting rooms, receptions, or display areas.
Smart Homes: Easily integrates with existing smart lighting systems, offering enhanced control over your home’s lighting.
What’s Included:
1 x Single Zone R6-1 Dimming Remote Control
1 x CR2032 Battery
1 x Wall Holder
1 x User Manual
Installation & User Guide: Pairing the R6-1 remote with compatible RF dimming controllers is a quick and simple process. Detailed instructions are provided in the user manual to help you set up and begin using your remote with minimal effort.
Additional Information: For bulk purchases, custom orders, or additional support, please contact our customer service team, who are on hand to assist with any queries you may have.
Pairing Instructions: To pair your remote with an RF receiver controller, follow these steps:
Using the Controller's Match Key:
Press the match key on the controller.
Immediately press the on/off key on the remote.
Using Power Restart:
Turn off the power, then switch it back on.
Immediately press the on/off key three times on the remote.
Several compatible RF receivers/controllers are available separately. To find matching receivers, please refer to the "Related Products" section.
