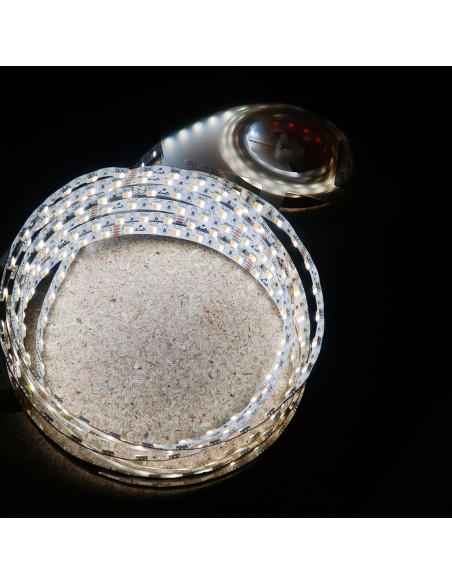

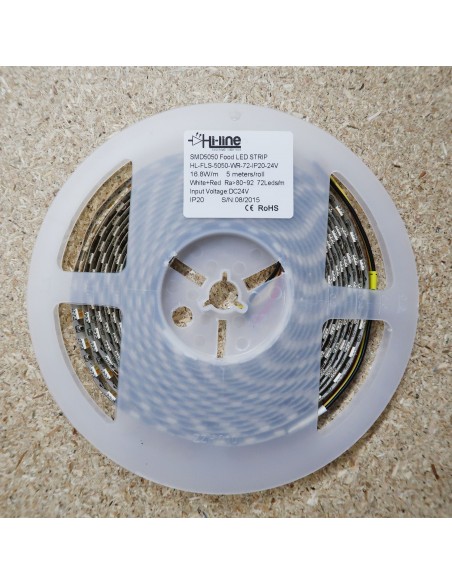

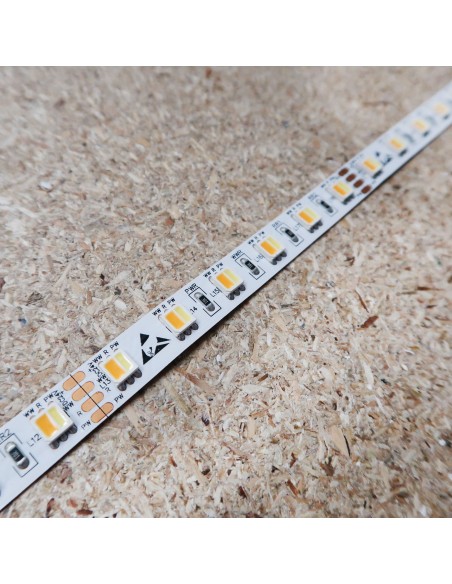

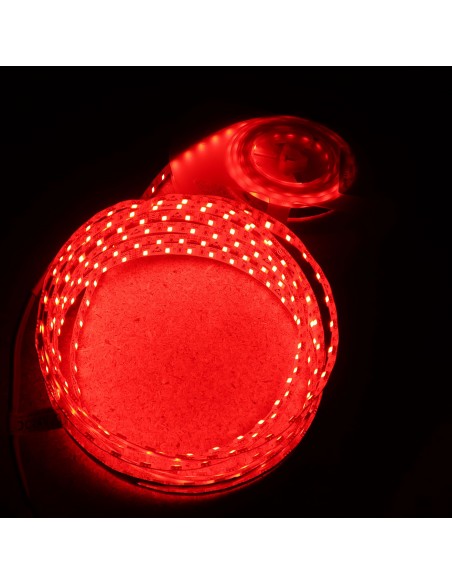

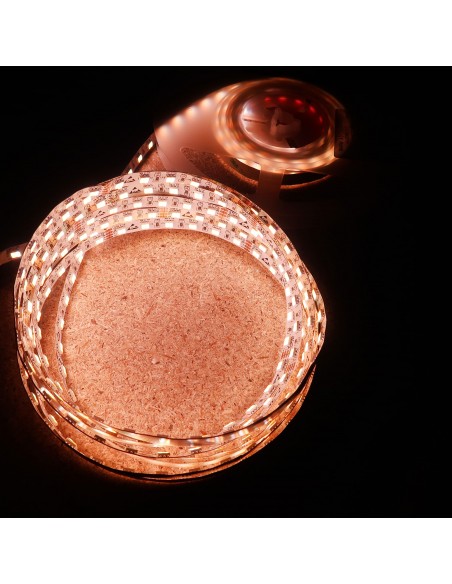

Commercial and Food Display LED Strip 24V | 17W/m | IP00 | CRI80

Key Features:

  • LED STRIP LIGHT FOR COMMERCIAL REFRIGERATION AND FOOD DISPLAY
  • 5 meters roll - All in 1 LED chip (RED+WW+CW)
  • Ultra high CRI and brightness
  • IP Rating: IP00
  • DC 24V
  • LEDs per meter: 72
  • Voltage: 24V DC
  • 18~20lm/chip
  • Ra>80~92
  • 5 meters/roll
  • 17 Watt per meter power consumption (maximum)

Important Product Details

  • optional 250 char. max
HL-FLS-5050-WR-72-IP00-24V
PRE-ORDER
£62.50
(£
75.00
with VAT)

(£12.50 Meter)

VAT excluded

Tags:


Selection of the LED driver depending on the maximum LED strip length:

The table below shows the maximum LED strip length, which can be operated with a given LED driver.

To consider performance drop, which occurs in the power supply cable, and to maximise the efficiency of the LED Driver, 20% should be deducted from the maximum strip length in the table below.

LED Drivers and LED Strip 17 W/m

For more information about the installation of LED Strips, you can download the PDF file: “Installation of LED Strips” in the attachments tab

Brand
Hi-Line
CIE Colour Space
3 SDCM
Colour rendering (CRI in ra)
80
LED Chip
SMD 5050
IP Rating
IP00 (Non-waterproof)
Voltage
24V DC
Warranty
3 Years
Width of strip
10mm
