LED Driver | High Efficiency | 12V | 200W | Constant Voltage | IP67

12V High Efficiency Constant Voltage LED Driver 200 Watt IP67 - EC Series - 3 Years Warranty

Non-dimmable 12 Volts LED Driver suitable for LED Strips or LED light box modules of total power consumption up to 200W.

It is recommended to calculate 20% more than the tape power consumption for better performance of the power supply.

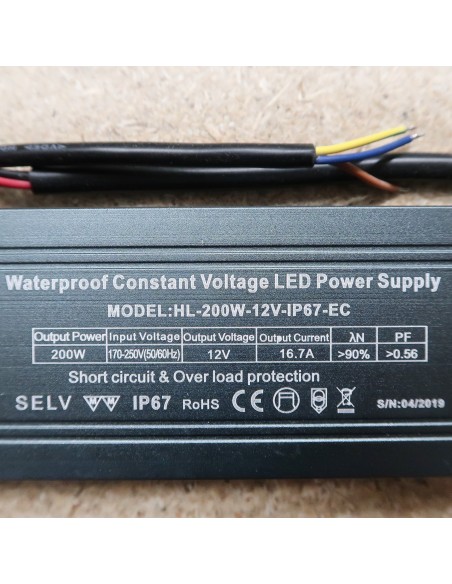

LED Driver 200W/12V

Input: 170~250V AC (50/60Hz)

Output: 12V / 16.7 Amps

Rating: IP67 (Waterproof)

Efficiency: > 90%

Dimensions: L238 x W61 x H33mm

Weight: 806g

Warranty offered for the LED driver is 3 years

The table below shows the maximum LED strip length, which can be operated with this LED driver.

To consider the best power supply performance, 20% was deducted from the maximum strip length in the table below.

IMPORTANT NOTICE!

This device should be installed by a qualified electrician in accordance with the latest edition of the IEE Wiring Regulations and any applicable Building Regulations.
