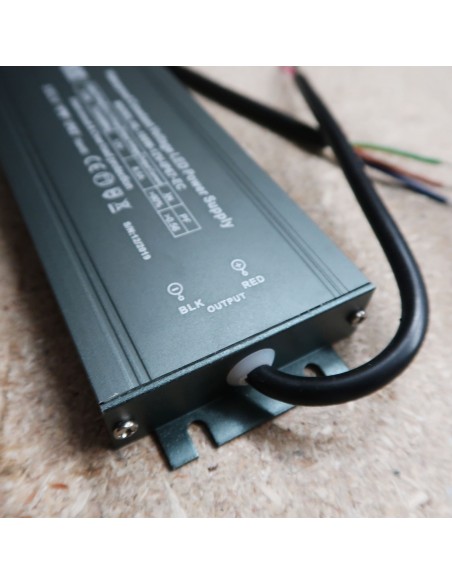

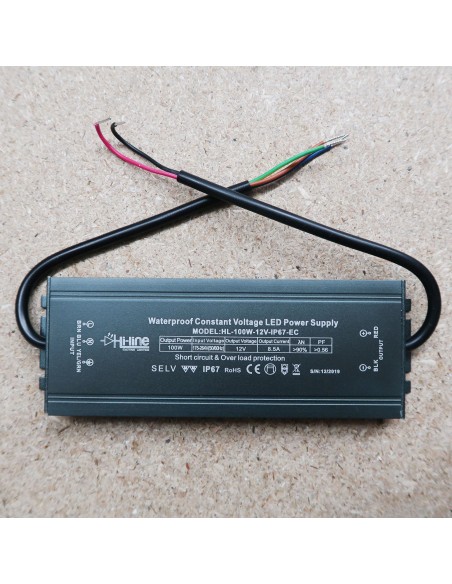

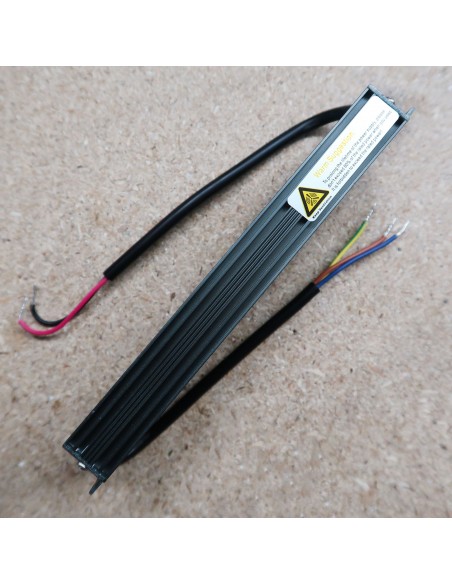

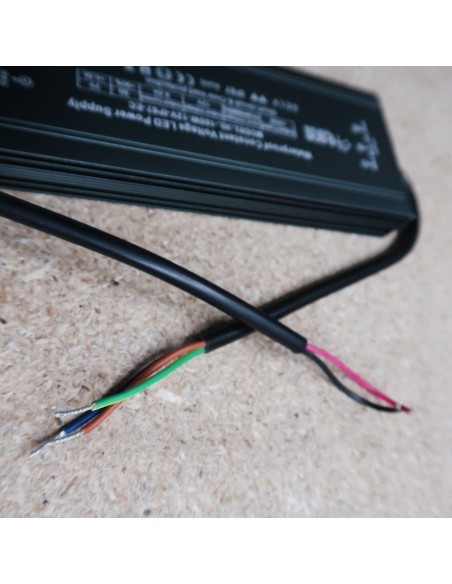

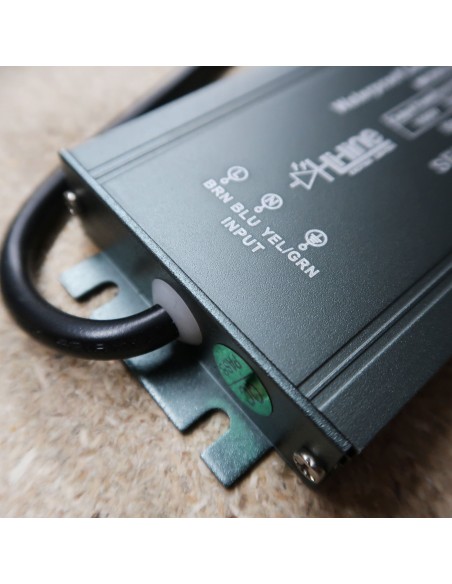

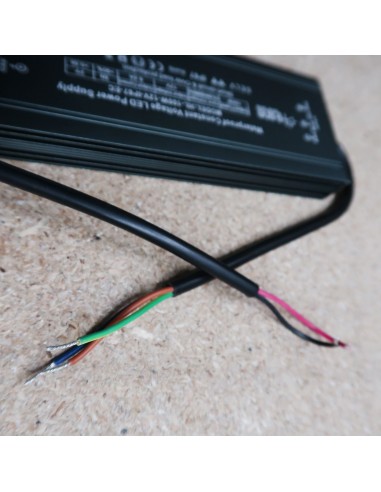

LED Driver | 12V | 100W | Constant Voltage | IP67 (EC Series)

High Efficiency 12 Volts Constant Voltage LED Driver 100 Watt IP67 (EC Series) - 3 Years Warranty

Non-dimmable 12 Volts LED Driver suitable for LED Strips or LED light box modules of total power consumption up to 100W.

It is recommended to calculate 20% more than the tape power consumption for better performance of the power supply.

Note: This is an economy series driver. If you prefer lower in-rush current and higher power factor products, then consider our premium series drivers instead. Installers should be aware of in-rush current and the type of MCB required in such cases.

To learn more about In-rush current, visit out support page HERE

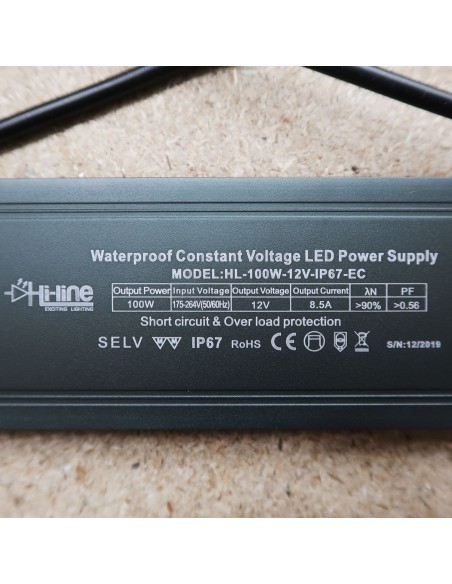

LED Driver 100W/12V

Input: 170~250V AC (50/60Hz)

Output: 12V / 8.3 Amps

Rating: IP67 (Waterproof)

Efficiency: > 90%

Dimensions: L186 x W64 x H20mm

Weight: 358g

Warranty offered for the LED driver is 3 years

The table below shows the maximum LED strip length, which can be operated with this LED driver.

To consider the best power supply performance, 20% was deducted from the maximum strip length in the table below.

IMPORTANT NOTICE!

This device should be installed by a qualified electrician in accordance with the latest edition of the IEE Wiring Regulations and any applicable Building Regulations.
