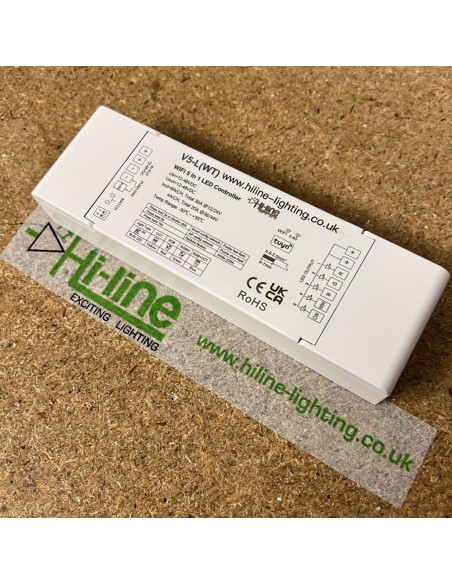

The HL-V5-L(WT) WiFi & RF 5-in-1 LED Strip Controller Dimmer is a versatile and intelligent controller designed to handle various LED strip types, including RGB, RGBW, RGB+CCT, CCT (dual colour), and single-colour strips. Integrating seamlessly with the Tuya Smart Life App, it offers dynamic lighting effects, scheduling, and voice control compatibility with Amazon Alexa and Google Assistant. For those who prefer simple control, the controller can also function independently with an RF remote.
Key Features:
-
Wide Input Voltage Range: Operates between 12V and 48V DC, supporting up to 360W (12V), 720W (24V/36V), and 960W (48V), providing flexibility for various LED strip specifications.
-

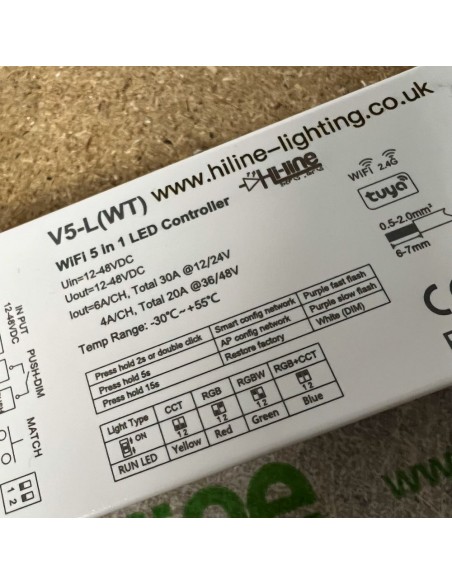

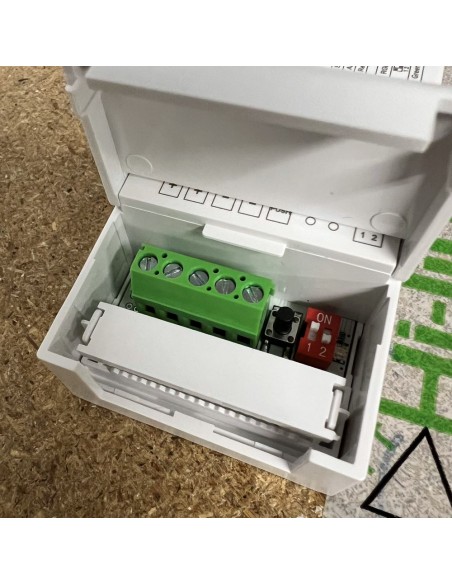

5-in-1 Control: Compatible with dimming, CCT (dual colour), RGB, RGBW, and RGB+CCT LED types. Adjust the lighting type using the built-in DIP switch before connecting to the Tuya app.
-
WiFi-RF Converter: Functions as a WiFi-RF converter, enabling synchronous control of multiple RF LED controllers through the Tuya Smart Life App. Please note that this controller only supports 2.4GHz WiFi bands and is not compatible with 5GHz or higher bands.
-
Remote-Only Operation: The controller can operate solely with an RF remote, without the need for WiFi, Alexa, or Google. Pair the controller with your preferred 2.4GHz RF remote or touch panel for straightforward, offline control.
-
Smart Control via App & Voice: Control on/off functions, adjust brightness, change colour temperature, and customise scene settings through the Tuya Smart Life App. Voice commands are supported with Amazon Alexa and Google Assistant, providing convenient, hands-free operation.
-
Music Mode (App Required): The Music Mode requires the Tuya Smart Life App and your phone to work. The lights synchronise with music playing on your phone, creating an interactive lighting environment.
-
Timer & Schedule Functions (App Required): Through the app, set up timers and schedules to automate lighting scenarios. Program lights to turn off at bedtime or create wake-up lighting in the morning, enhancing energy efficiency and customisation.
-

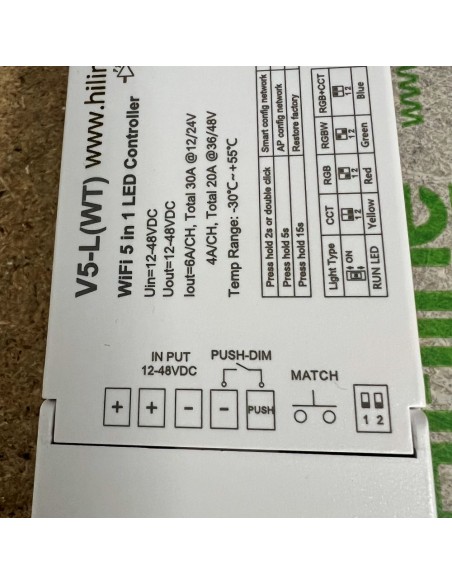

Multiple PWM Frequencies: Offers four selectable PWM frequencies (500Hz, 2000Hz, 8000Hz, 16000Hz) to meet different lighting needs, including flicker-free operation for video recording environments. Adjust the frequency using the DIP switch settings when the power is off.
-
Compatibility with 2.4GHz Remotes: Works seamlessly with any matching 2.4GHz remote control or touch panel from our range. One remote can pair with multiple controllers, and one controller can pair with multiple remotes, making it ideal for large-scale installations. Remotes and wall panels are sold separately; to find compatible accessories, refer to the "Related Products" tab for easy access.
Technical Specifications:
- Input Voltage: 12-48VDC

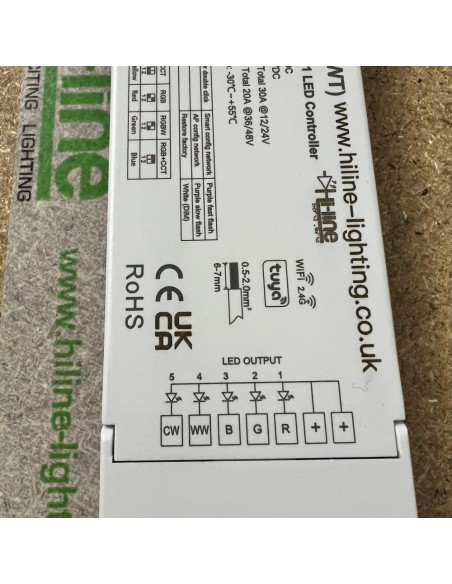

- Output Channels: 5 (6A/CH @ 12-24V, 4A/CH @ 36-48V)
- Output Type: Constant Voltage
- Dimming Range: 0-100% with 4096 (2^12) levels for smooth transitions.
- Control Distance: Up to 30m (in barrier-free space) for RF remote connection.
- RF Frequency of operation: 2.4Ghz
- Operating Temperature: -30°C to +55°C
- IP Rating: IP20, suitable for indoor installations.
Installation & Use: Select the appropriate LED type using the DIP switch before pairing the controller with the Tuya app. The controller connects directly to 2.4GHz WiFi without the need for additional hardware. Alternatively, use an RF remote for simple, offline control. The controller’s compatibility with various LED strips—including dimming, CCT, RGB, RGBW, and RGB+CCT—makes it an excellent choice for customisable lighting installations.
Additional Information:
- This product is UKCA, CE, EMC, and RED certified, meeting essential safety and electromagnetic standards.
- To view full technical details, download the datasheet from the "Attachments" tab.
- For related products and accessories, visit the "Related Products" tab to explore options.
Warranty: 3 years standard, extendable to 5 years with our extended warranty option.
