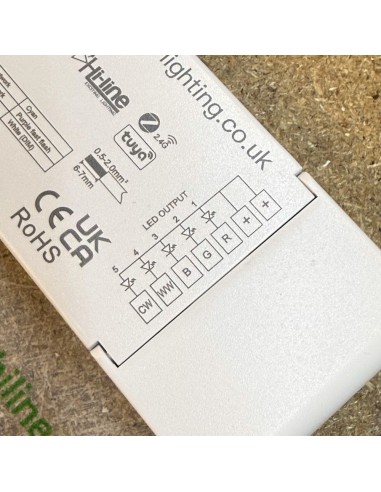

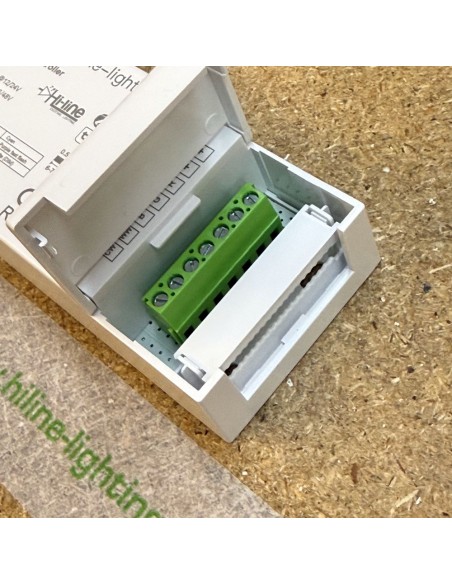

Introducing the V5-L(WZ) Zigbee + RF LED Strip Controller, a powerful and versatile lighting solution that adapts to a wide range of installations with precision and efficiency. This controller is part of our 5-in-1 series and is comparable to the WZ5 model, offering exceptional performance for controlling single colour, CCT, RGB, RGBW, and RGB+CCT LED strip installations. Its advanced features make it ideal for both residential and commercial lighting needs, providing unmatched flexibility.
The V5-L(WZ) supports both Zigbee 3.0 and RF 2.4GHz control, making it a truly hybrid solution. This dual capability allows seamless integration with smart home systems while also being compatible with Hi-Line's RF remotes, wall panels, and other 2.4GHz RF devices. Whether you need app-based smart home integration or want the simplicity of RF remote control, this controller has you covered.
Why Choose the Hybrid V5-L(WZ) Controller? The V5-L(WZ) is designed to give you ultimate control options. It combines Zigbee technology with RF compatibility, ensuring it works perfectly with all Hi-Line remotes, wall panels, and other devices using the 2.4GHz RF frequency. This makes it highly adaptable depending on your needs:
- Hybrid Zigbee (V5-L(WZ)): If you want a solution that works with popular smart platforms like Philips Hue, including full integration via the Hue Bridge, then the V5-L(WZ) is ideal. This controller not only allows control through Zigbee but also integrates effortlessly with Hi-Line RF remotes and wall panels, giving installers and users multiple control options without any hassle. This flexibility is perfect for those who require a reliable system that can adapt to any situation or installation.
- Pure Zigbee or WiFi?: If your setup only needs Zigbee control without the added RF capability, the V5-L(WZ) still stands out with its robust compatibility across various Zigbee platforms. However, if Zigbee isn't a necessity for you and you prefer a simpler, more straightforward option, consider our V5-L(WT) WiFi Controller. The V5-L(WT) is well-suited for users who want to control their lighting through Amazon Alexa or Google Assistant without adding Zigbee to their system. It simplifies installation and setup by focusing solely on WiFi connectivity, making it an easy choice for those looking for basic smart control without added complexity.
Understanding your control needs is key. If you require a hybrid system that integrates seamlessly with Philips Hue, Tuya, or other Zigbee-based ecosystems while also working with RF remotes, the V5-L(WZ) is an ideal choice. For simple voice control via Amazon Alexa or Google Assistant, the V5-L(WT) WiFi Controller offers an excellent, straightforward solution. To avoid purchasing the wrong remote control, make sure to click the 'Related Products' tab on the product page, where you’ll find the compatible options we’ve carefully set up for your chosen controller.
Key Specifications
- Input Voltage: 12-48VDC, providing flexibility for different power requirements.
- Output Current: 6A per channel @ 12-24V, 4A per channel @ 36-48V. This allows the controller to manage a wide range of LED strip configurations effectively.
- Output Channels: 5-channel constant voltage output, suitable for RGB, RGBW, and RGB+CCT configurations.
- Dimming Range: Smooth dimming from 0-100%, supporting 4096 levels (2^12) for precise light adjustment.
- PWM Frequency: Selectable PWM frequency settings (500Hz, 2000Hz, 8000Hz, 16000Hz), ideal for achieving flicker-free lighting, especially for camera-sensitive environments.
- Mechanical Design: The controller is compact, with dimensions L185 x W58 x H36mm, making it easy to install even in restricted spaces.
- Safety & Certifications: Certified with CE, EMC, RED, and conforms to ETSI EN 300 328 V2.2.2, ensuring high safety and reliability standards.
- IP Rating: Rated at IP20, suitable for indoor installations.
- Control Distance: Up to 30 metres (barrier-free environment) for RF control, offering versatility in positioning.
The V5-L(WZ) is equipped with DIP switch settings to quickly adjust between RGB, RGBW, CCT, and single-colour options, providing flexibility during installation. It can also function as a ZigBee-RF converter, enabling control over RF LED controllers or dimming drivers via the Tuya Smart App.
With features like adjustable light fade times for on/off transitions and multi-channel constant voltage output, this controller ensures even, consistent lighting that is energy efficient. The Push-DIM feature allows easy on/off and dimming control through a simple push-button connection, offering yet another convenient option for users.
The V5-L(WZ) also includes essential safety protections such as reverse polarity protection, short circuit protection, and overheat protection, ensuring long-term reliability and safe operation.
Compatibility and Usage The V5-L(WZ) integrates seamlessly with the Tuya Zigbee gateway for remote operation and is compatible with leading smart home ecosystems, making it easy to manage brightness, colour temperature, and even music-sync functions for dynamic lighting effects. Whether you're setting a calm atmosphere at home or energising a commercial space with vibrant colours, the V5-L(WZ) delivers the flexibility and performance needed.
Applications This controller is an excellent choice for a range of environments, from residential spaces like living rooms, kitchens, and bedrooms, to commercial areas such as retail stores, hospitality venues, and entertainment settings. The V5-L(WZ) provides a powerful combination of precision, reliability, and adaptability for your lighting projects.
Additional Resources To help you make the most of your setup, don't forget to check the 'Related Products' tab. Here, you'll find compatible remote controls, wall panels, and other accessories that perfectly match this controller. You can also download the detailed PDF datasheet from the 'Attachments' tab for all the technical specifications and installation guidance. These tabs are conveniently positioned to ensure you have easy and quick access to the right tools and information for a smooth installation.
Discover how the V5-L(WZ) Zigbee + RF LED Strip Controller can transform your lighting experience by leveraging Hi-Line's expertise and the latest in smart technology. Whether for an upgrade or a new installation, the V5-L(WZ) gives you control without limits.
