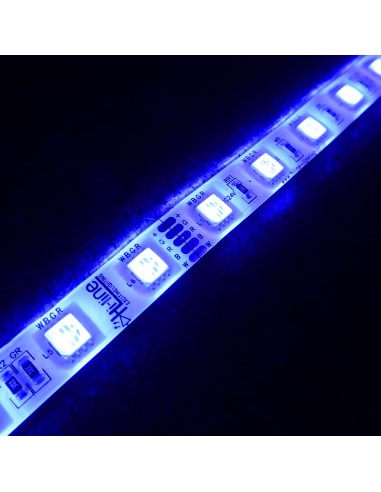

10m Roll RGB + Warm White LED Strip | High Power Quad Chip | 24V DC, IP68 Waterproof
Colour: RGB + Warm White
LED Chip: Quad/4 in 1 Chip

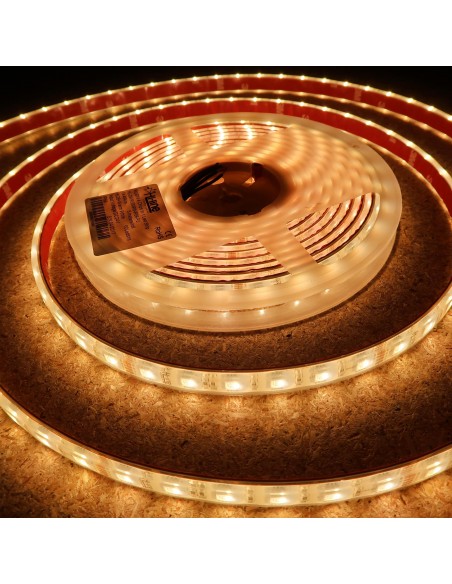

Colour Temperature (CCT): 2700K
Voltage: 24V DC
IP Rating: IP68 (Waterproof)
LEDs per metre: 60
Power: 14.4 Watts per Metre
Brightness: 1200 Lm/m

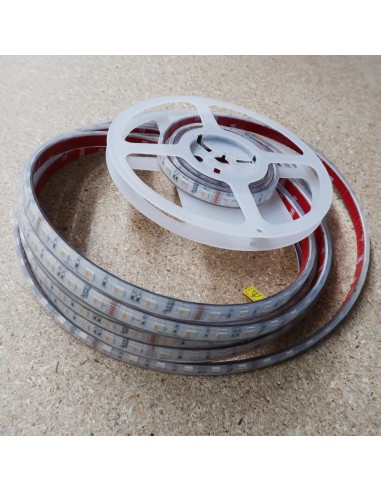

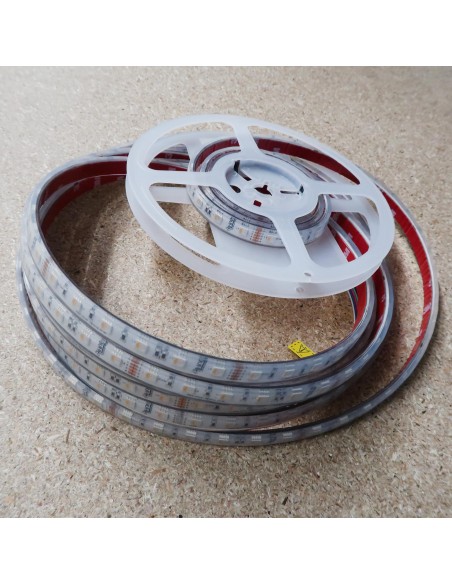

LED Strip Length: 10-metre roll
Width of strip: 12mm
Height of strip: 5mm
IP68 Waterproof Protection by Polyurethane
Warranty: 3 years or 1 year (depending on product usage, see below)
Energy Rating: G
Introducing our 10m roll of RGB + Warm White LED Strip, featuring a high-quality Quad/4 in 1 LED chip design that blends RGB and warm white (2700K) colours in each chip. This versatile strip operates at 24V DC, providing powerful illumination at 14.4 Watts per metre and a brightness of 1200 lumens per metre. Ideal for outdoor or indoor use, it has IP68 waterproof protection, encased in durable polyurethane to withstand even the harshest environments.
Important Installation Note: Due to the high power of this LED strip and its 10-metre length, it is highly recommended to power both ends in parallel to the controller to prevent voltage drop. This ensures consistent brightness throughout the entire length of the strip and helps to maintain the longevity of the product. Direct connections using a 5-core cable are recommended for longer installations to maintain optimal performance.
LED Types Available:
This listing features the SMD type LED strip, which integrates RGB + Warm White in each chip, offering excellent brightness and versatility. If you require a COB type LED strip, we also offer an IP67 version with a separate listing. The COB type provides a different lighting effect with a more seamless light output, suitable for different applications.
-
Voltage: 24V DC
-
Power Consumption: 14.4W per metre
-
LEDs per Metre: 60
-
Brightness: 1200 Lm/m
-
Width: 12mm, Height: 5mm
-
IP Rating: IP68, suitable for wet environments with polyurethane protection
-

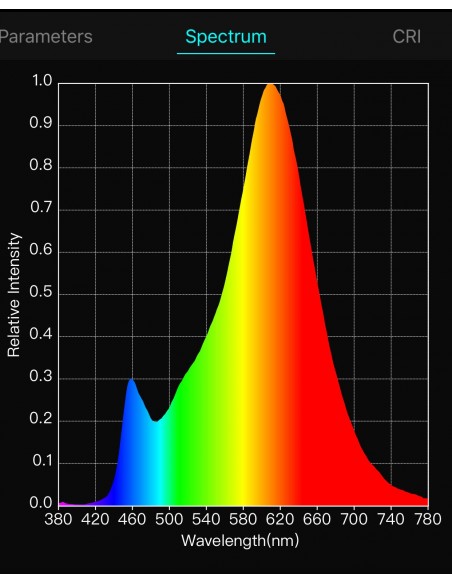

Colour Temperature: Warm White 2700K along with full RGB colour control
-

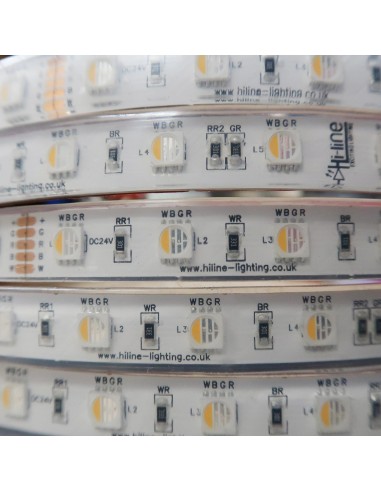

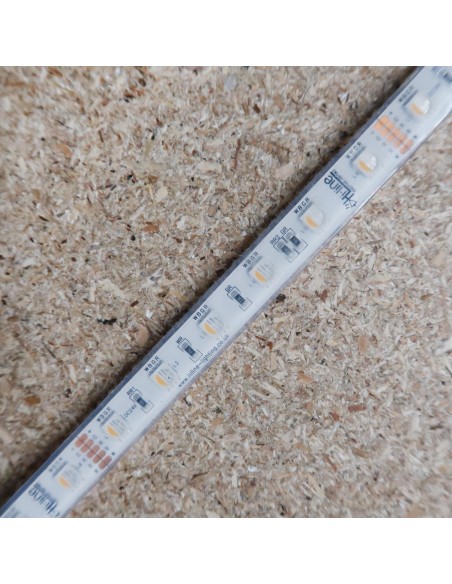

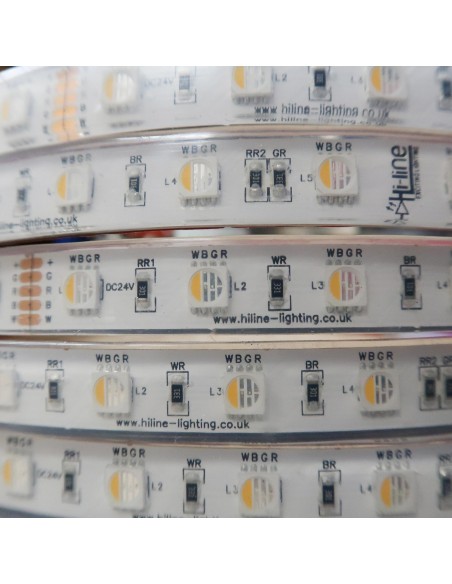

LED Chip Type: SMD5050 Quad Chip (RGB + Warm White)
-

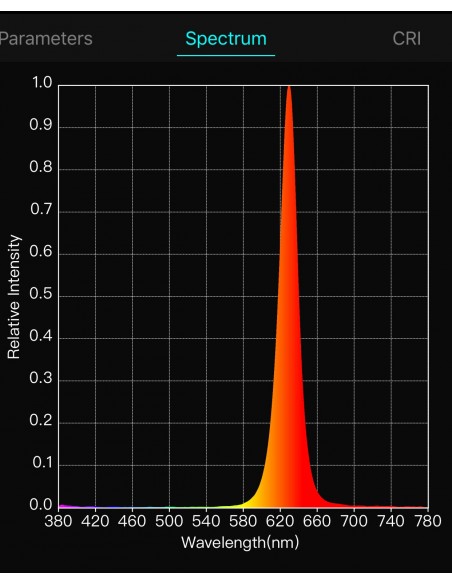

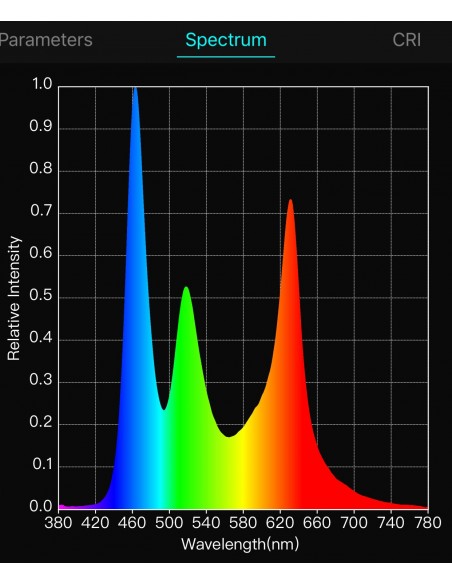

Red Channel Wavelength: 625 nm
-

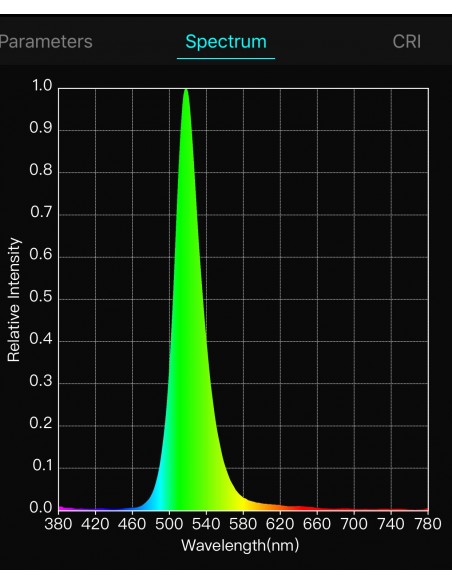

Green Channel Wavelength: 525 nm
-

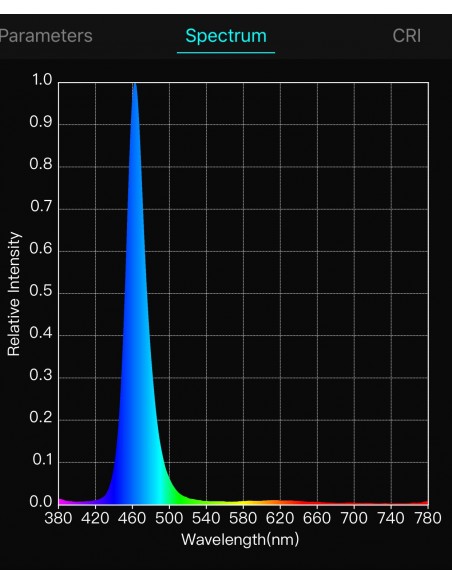

Blue Channel Wavelength: 470 nm
-
Cut Length: Every 10cm (6 LEDs)
-
Adhesive: Original 3M tape for easy and reliable installation
Warranty Information: The LED strip comes with a standard warranty of 3 years. However, for installations in challenging environments such as gardens, saunas, steam rooms, or areas exposed to extreme weather conditions, the warranty is limited to 1 year. Please check our warranty conditions or contact us for more details. For high-temperature environments, it is recommended to install the strip on an aluminium flat bar or concrete surface to aid in heat dissipation and prolong the lifespan of the LEDs.
This 10m roll is ideal for architectural lighting, accent lighting, and outdoor installations, providing seamless colour transitions and vibrant illumination. Its unique blend of RGB and warm white allows for dynamic colour effects as well as the cosy ambience of warm white light.
Additional Usage Information: Hi-Line’s IP68 rated LED strip is designed for durability and long-term use. The protective polyurethane coating ensures flexibility without compromising its robustness, preventing yellowing over time. When installed correctly, the strip maintains its IP68 rating for over 5 years, even when in temporary contact with or submerged in water.
Compatibility and Installation Tips: The strip comes with a 15cm wire ending on each side, making it simple to cut and use in smaller sections. It is fully compatible with Fibaro RGBW LED Controllers, Rako, or any standard anode LED controller. When powering this 10m length, always use an RGBW controller paired with an appropriate LED driver. The LED driver does not need to be dimmable since brightness control and colour adjustment can be handled by the controller. Soldering connections is recommended to ensure waterproofing, using liquid electrical tape or waterproof heat shrink sleeving.
The stated price is for 1 x 10-metre roll RGBW LED strip (Warm White) with 600 SMD5050 RGBW LEDs – IP68 (Waterproof), 24V DC.
