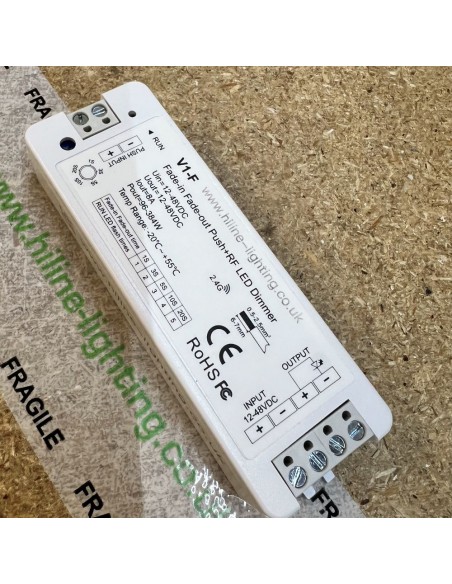

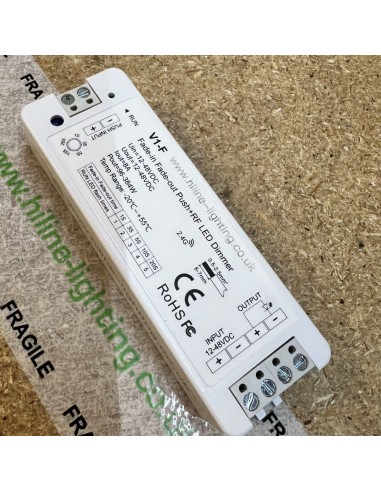

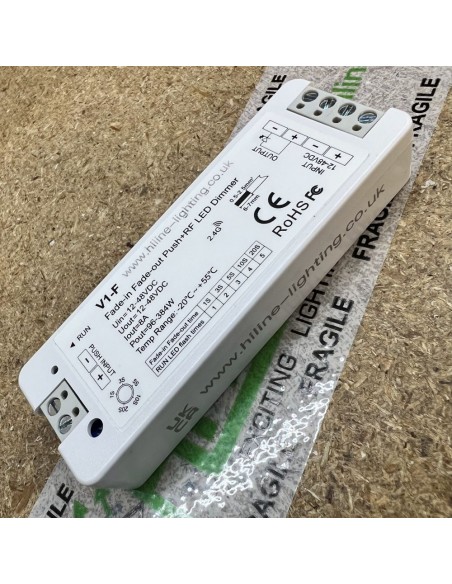

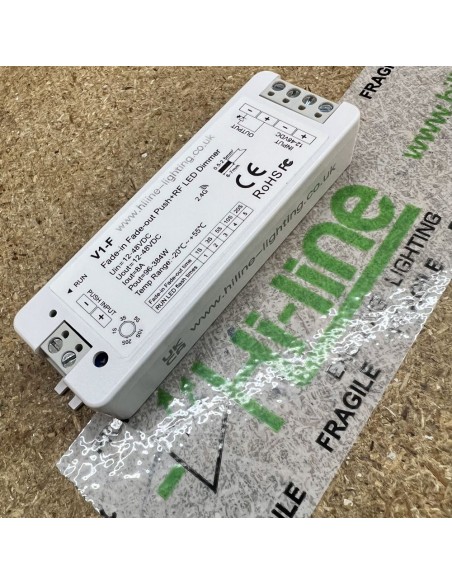

The HL-V1-F controller is a sophisticated solution designed specifically for controlling single-colour LED strips. It operates within a 12-48VDC range and handles up to 8A, making it ideal for various LED installations. This controller supports both push-dim and RF remote control, offering flexible operation and precise adjustment.
Dimming Control: The push-dim function allows for easy control, and RF functionality provides wireless operation. Note that the RF remote is optional and sold separately. This controller is compatible with RF remotes for enhanced control across single or multiple zones if desired.
Explore More: Pair with compatible RF remotes available in our related products section. Download the datasheet from the downloads tab for full technical details.
Fade-in/Fade-out Timing: Adjustable fade-in/fade-out timing, with settings of 1, 3, 5, 10, or 20 seconds.
Safety Features: Includes over-heat, over-load, and short circuit protection for reliable operation, with automatic recovery in case of issues.
Installation: Compact and easy to install, suitable for both residential and commercial applications.
Technical Specifications:
Input Voltage: 12-48VDC
Output Power: 96-384W
Output Current: 8A
PWM Frequency: 2000Hz
Dimming Range: 0-100%
Dimensions: L100 x W34 x H18mm
IP Rating: IP20
Operating Temperature: -20°C to +55°C
Case Temperature (Max.): +85°C
Certifications: UKCA, CE, RoHS
The HL-V1-F controller is the ideal choice for those seeking advanced, reliable, and customisable control of their single-colour LED lighting systems. With its robust design, versatile control options, and built-in safety features, it’s suited to a wide range of applications.
To pair an optional RF remote control such us "HL-R6" with the V1-F LED controller, follow these steps:
Using the Controller's Match Key:
Press the match key on the controller.
Immediately press the on/off key (for a single zone remote) or the zone key (for a multi-zone remote) on the RF remote.
Using Power Restart:
Turn off the power, then switch it back on.
Immediately press the on/off key (single zone remote) or zone key (multi-zone remote) three times on the remote.
To find matching remotes, use the "Related Products" tab
Note: The RF remote is sold separately. For more detailed instructions, please refer to the remote control's datasheet.
