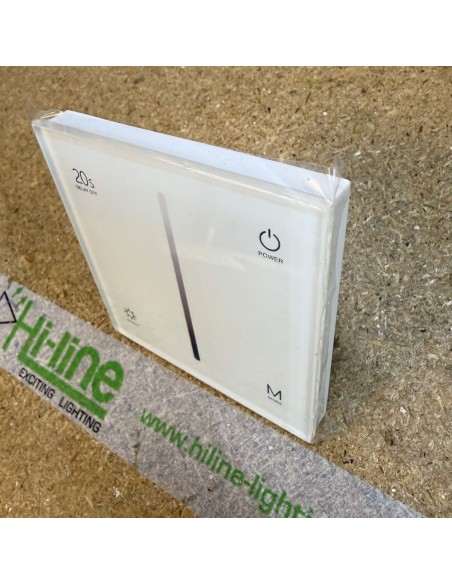

The T18 Touch Panel Dimmer is a 0-10V or 1-10V white glass frame dimmer that requires a mains 240V AC input to function. It does not operate without this power input, as it generates the low-voltage 0-10V or 1-10V output needed to control dimmable LED drivers.

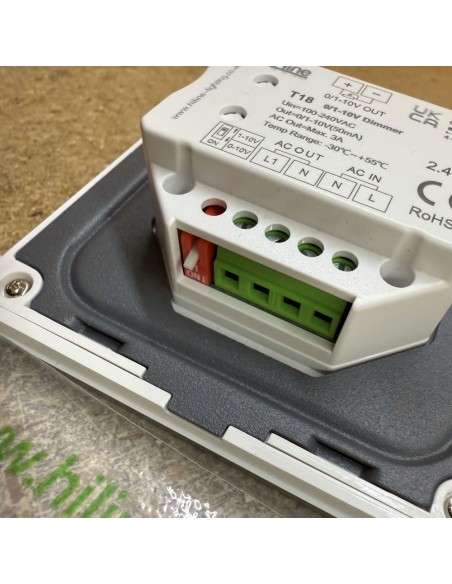

This dimmer includes an optional AC output, which can be used to switch the 240V AC supply to your dimmable LED driver. However, this is not required for operation. If you choose to use the AC output, you must ensure that the total inrush current does not exceed 200A.
For example, if you have 10 LED drivers at 100W each, their combined inrush current at startup will likely exceed 200A if all are connected through this dimmer’s AC output. Exceeding this limit can damage the unit over time. Instead, the recommended approach is to connect your LED drivers directly to their power source and use the T18 only for dimming control via the 0-10V or 1-10V output. This way, one single T18 dimmer can control multiple LED drivers safely while avoiding inrush current overload.
The T18 also supports optional RF 2.4GHz remote control, available in both single-zone and multi-zone versions for wireless dimming convenience. This remote is optional and can be found in the Related Products tab.
For detailed wiring instructions, download the datasheet from the Attachments tab. To find all compatible LED drivers, remotes, and accessories, check the Related Products tab.
Key Features
Smooth 0/1-10V dimming, compatible with standard dimmable LED drivers

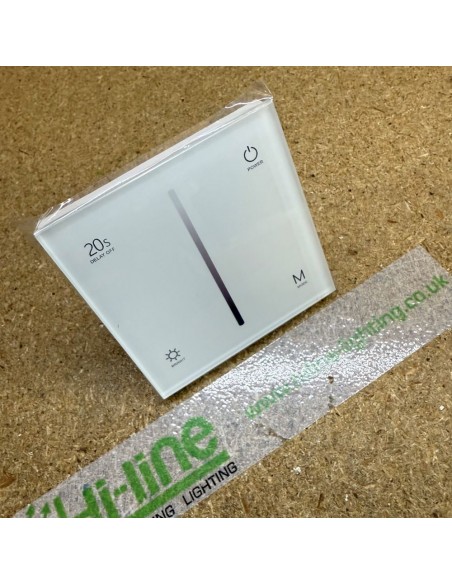

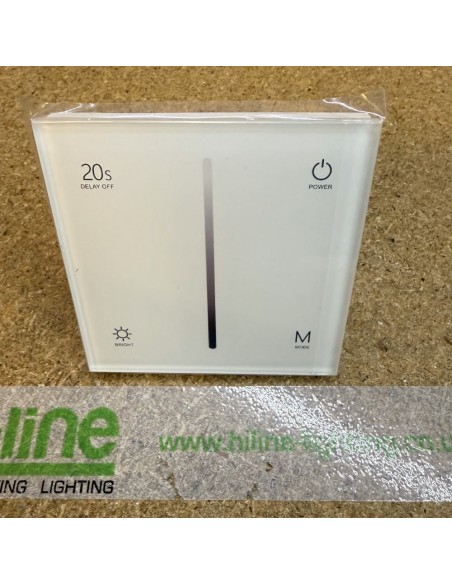

High-strength glass panel with LED-indicated touch keys and a central touch slider
Supports RF 2.4GHz remote control for wireless dimming (optional)
Requires 240V AC input to operate
Optional AC output for switching mains power, with a 200A inrush current limit
Available in black and white glass panel finishes
Designed to fit standard 86mm wall mounting boxes
Built-in 200A surge protection for enhanced durability

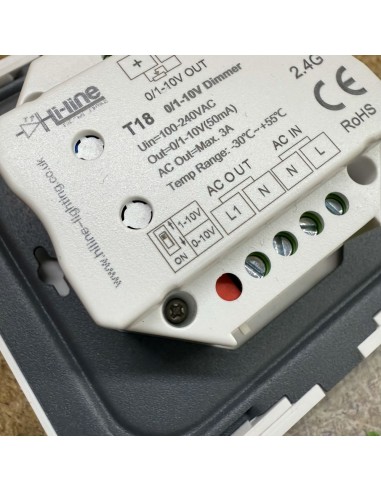

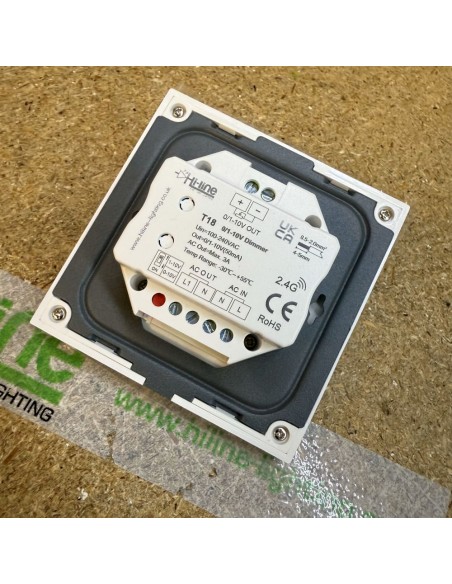

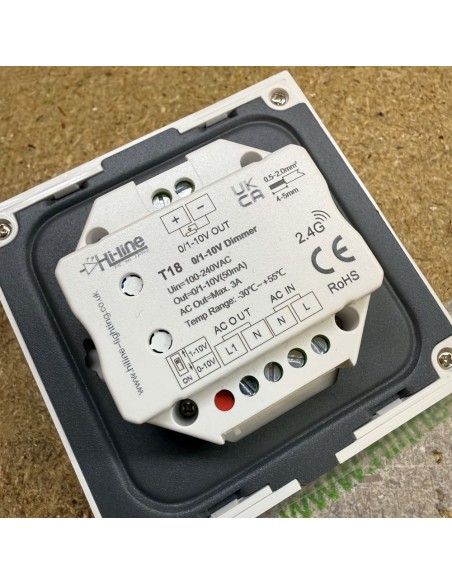

Technical Specifications
Input Voltage: AC100-240V
Output Signal: 0-10V (50mA)
Maximum Output Current: 3A (AC)
Relay Surge Current: 200A
Dimming Range: 0-100% with 256-level precision
Control Options: Touch panel & RF 2.4GHz remote (optional)
Operating Temperature: -30°C to +55°C

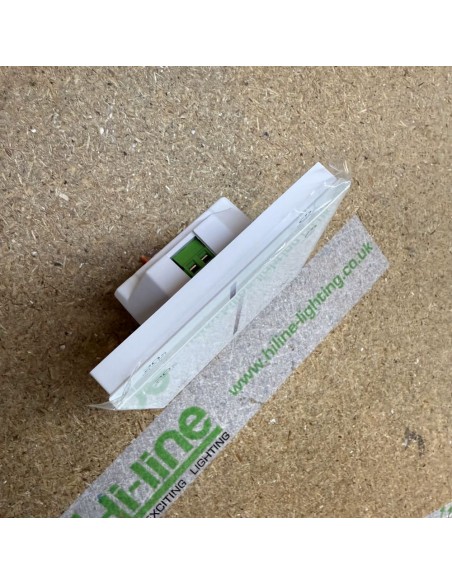

Panel Size: 86mm x 86mm x 52mm
IP Rating: IP20 (Indoor use only)
Certifications: UKCA, CE, and other relevant safety and EMC certifications
Warranty: 3 years standard, extendable up to 5 years
Installation Notes
The T18 dimmer is designed for easy installation in standard European-style 86mm wall boxes. To prevent damage, ensure that the connected LED drivers do not exceed the maximum 200A inrush current. The number of LED drivers connected should not exceed 100 units. Installation should be carried out by a qualified electrician for optimal safety and performance.
Applications
Ideal for both residential and commercial lighting setups, the T18 Touch Panel Dimmer provides effortless dimming control for LED strip lights, panel lights, and other 0/1-10V dimmable LED luminaires.
