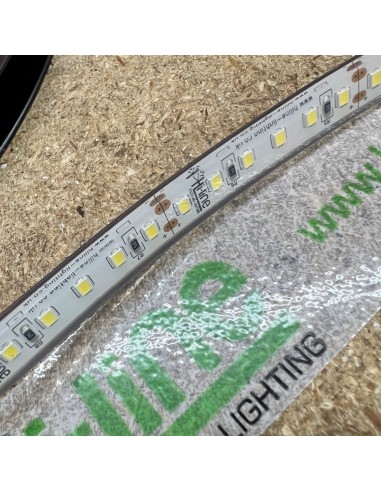

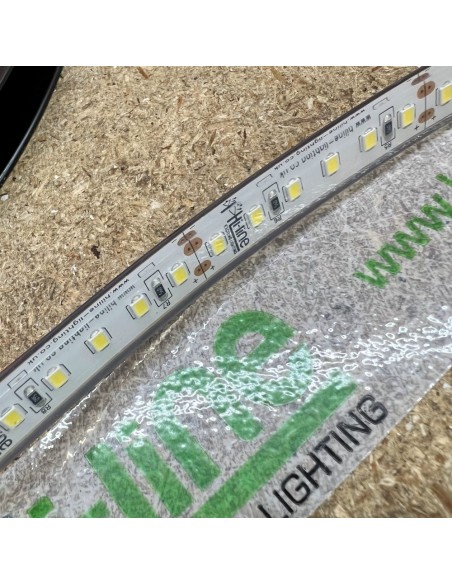

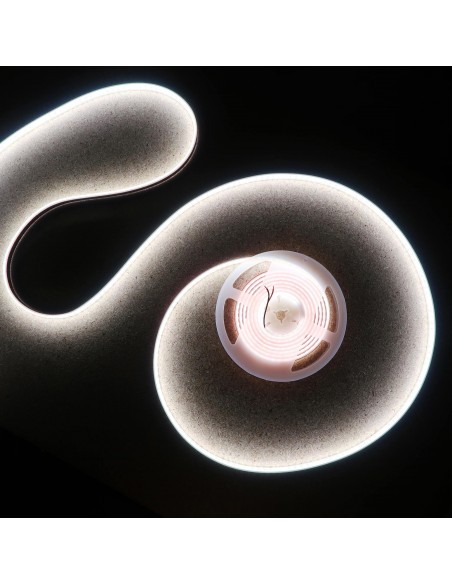

This high-performance LED strip delivers exceptional brightness, powered by top-tier SMD2835 LED chips, producing 2640 lumens per metre. With a Cool White colour temperature of 6000K, this strip is designed for both indoor and outdoor applications requiring high-quality lighting and reliable durability.
Important Installation Guidance: This is a high-power LED strip, and to ensure optimal performance, it must be powered from both ends when installing the full 10-metre length. This parallel powering method helps maintain consistent brightness and prevents voltage drop. Even if you cut the strip down to 5 metres, it is still recommended to power it from both ends in parallel for the best results. For shorter lengths under 5 metres, powering from one end may be suitable, but always consult with your installer to confirm the best approach.
Product Specifications:
- Colour: Cool White
- Colour Temperature (CCT): 6000K
- Voltage: 24V DC
- Power Consumption: 28.8 Watts per metre
- Brightness: 2640 Lm/m
- LEDs per metre: 120
- Total Length: 10 metres (two 5m strips joined in parallel)
- Width: 12mm (PCB width: 10mm)
- Height: 5mm
- High CRI: Ra >80
- IP Rating: IP68 (fully waterproof)
- Wire Length: 15cm 2-wire cable on both sides of the strip
Durability and Waterproofing: Featuring premium polyurethane and silicone for IP68 waterproof protection, this strip is built to last. It retains its flexibility and clarity over time, ensuring long-lasting performance in outdoor and extreme environments.
Mounting and Cooling: For maximum lifespan, it is recommended to install this strip on an aluminium profile or flat bar for proper cooling, particularly in warm environments or enclosed spaces. This will help keep the LED chips running efficiently and extend their operational life.

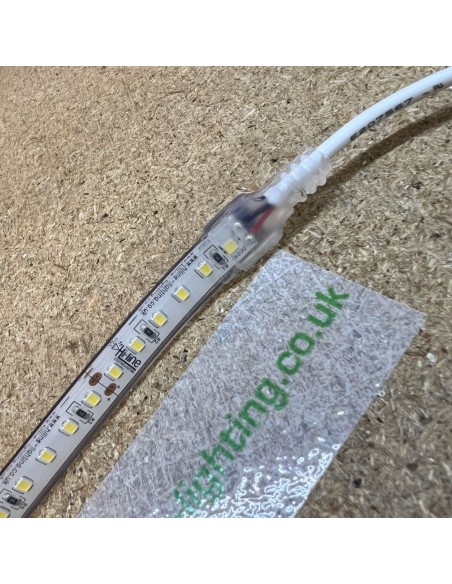

Cutting and Installation: The strip can be cut every 6 LEDs (5cm) to suit your needs. With 15cm wires pre-soldered on both ends, installation is easy, and no extra soldering is needed if the strip is cut into smaller sections.
Applications: Perfect for commercial projects, outdoor lighting, and extreme conditions such as saunas and steam rooms. This strip is versatile and durable, offering a reliable lighting solution for a wide range of applications.
Dimming and Compatibility: This LED strip is fully dimmable when paired with a PWM dimmer or controller. It can also be dimmed using a non-dimmable driver with a dimming controller.

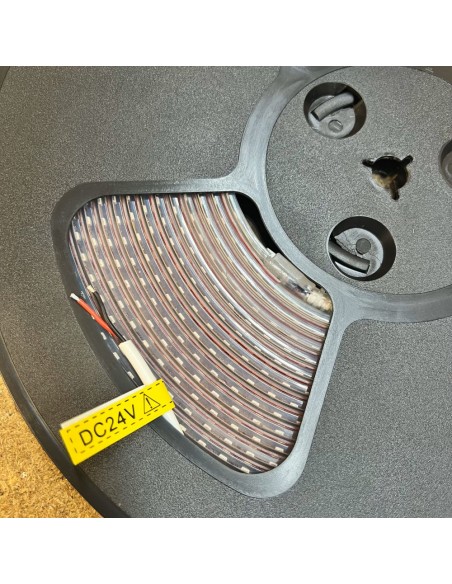

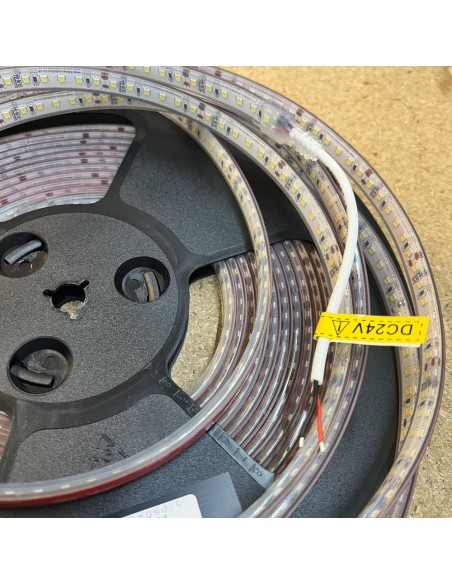

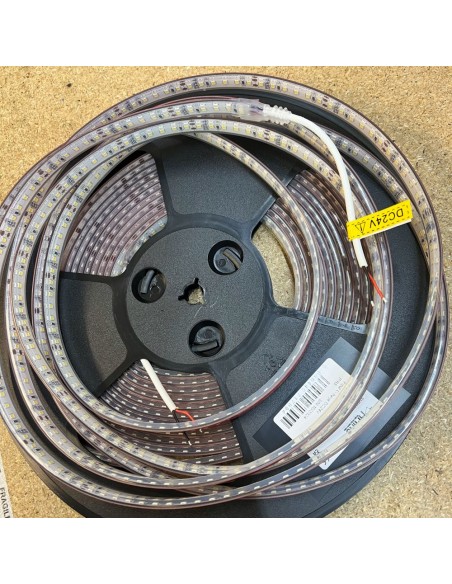

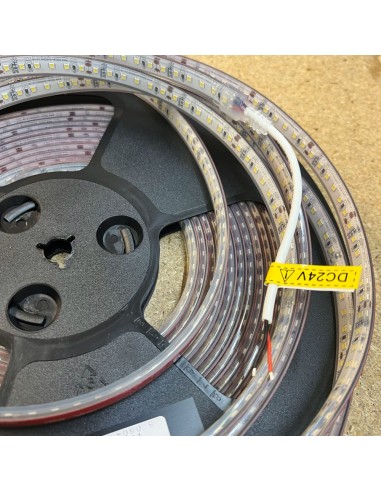

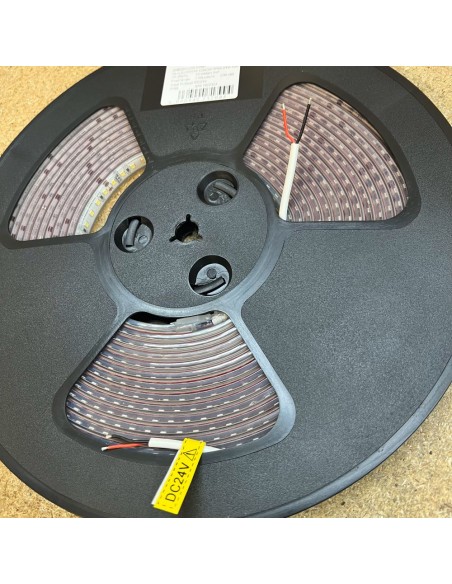

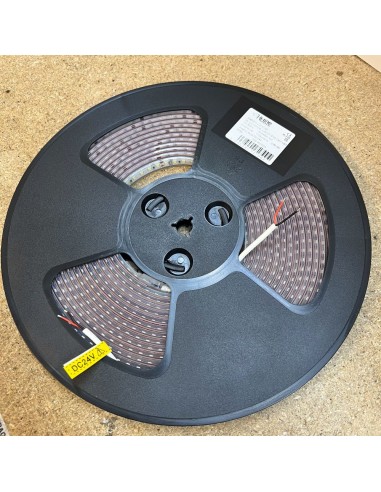

Package Includes: 1 x 10-metre roll of Cool White LED strip (600 SMD2835 LEDs, IP68, 6000K, 28.8W/m), with 15cm wire pre-soldered on both ends for easy installation.
Warranty Terms:
This product comes with a standard 3-year warranty, extendable to 5 years with Hi-Line’s extended warranty option. For installations in extreme outdoor environments such as gardens or harsh weather conditions, the warranty is limited to 1 year. The same 1-year warranty applies to installations in saunas, steam rooms, or underwater due to the specific nature of these environments.
