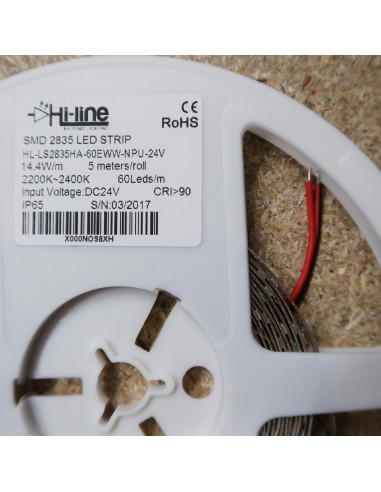

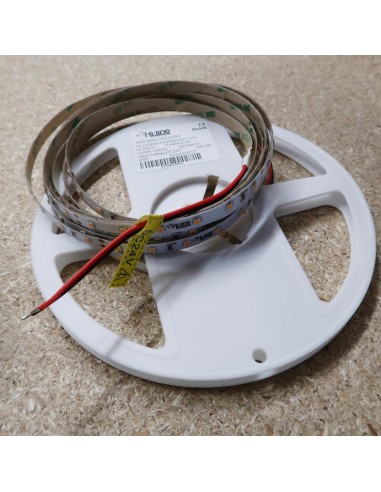

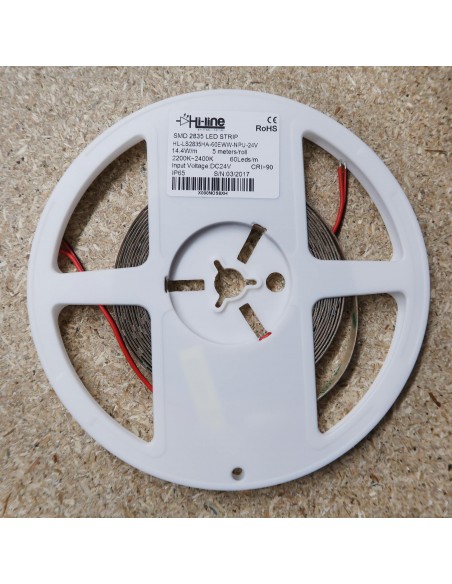

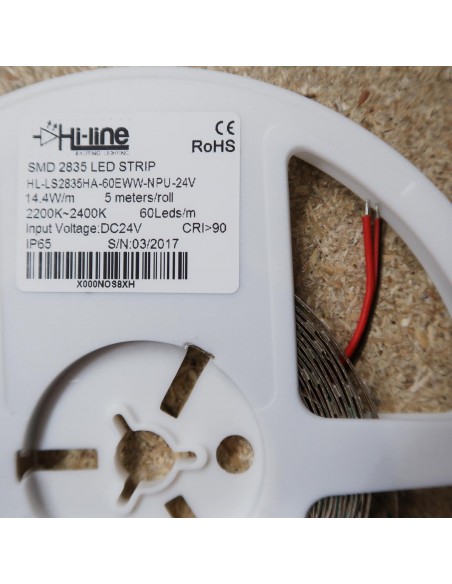

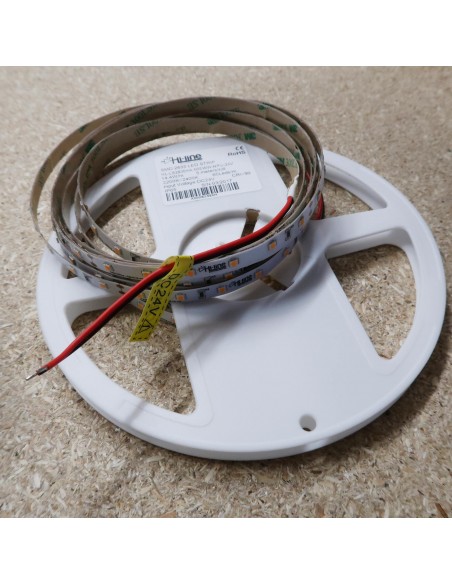

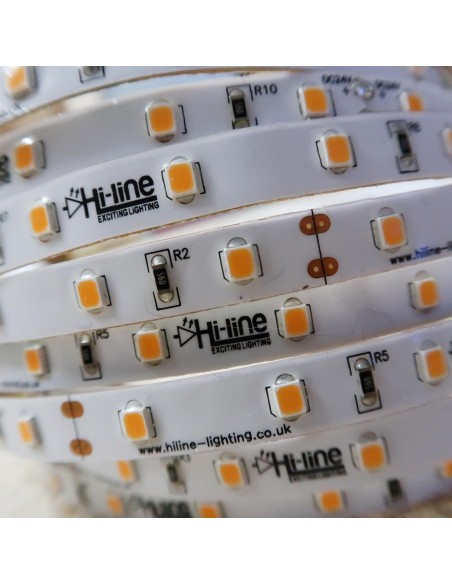

Commercial High-Grade Extra Warm White LED Strip 2400K
14.4W/m – 24V DC – 5m roll – 60 LEDs/m – IP54/65 (Splash-waterproof) – 2-wire cable (15cm on each side of the strip roll)

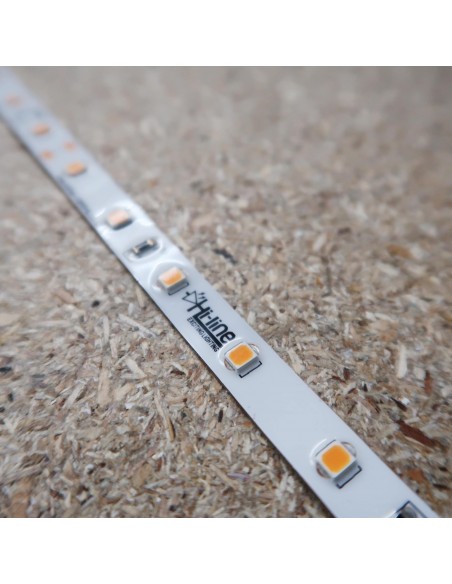

This is a high brightness LED strip powered by high-quality SMD2835 LED chips which generate a brightness of 1320-1440Lm/m. Please note that 1.2 meters of this LED strip has the same or even higher brightness than a 4ft fluorescent tube.
Excellent colour rendering index (CRI) – all LED chips reach a value of Ra >90.
The strip can be cut every 6 LEDs (10cm). The width of the LED strip is 8mm.
Fitted with an easy to install original 3M adhesive tape with excellent adhesion
IP54/65-PU Splash-waterproof Protection is achieved by providing the LED strip with a very thin, bright, polyurethane-spray layer.
The great advantage of this protective layer is that the luminosity of the LED strip is not affected and the LED strip can be easily cut and soldered. But the most important advantage of this Polyurethane layer is that it makes it possible to the strip to be used inside enclosed spaces such as signs, while the temperature is not an issue since PU acts also as a coolant for the chips.
Moreover, the LED strip remains extremely flexible, very clear, soft and well splashproof-protected throughout its lifetime.
The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.
Please do NOT connect more than 5 meters of a LED strip in series. A LED strip of more than 5 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 5 meters of the LED strip is exceeded, it is suggested to connect the strip directly to the LED controller or driver using a 2-core cable.

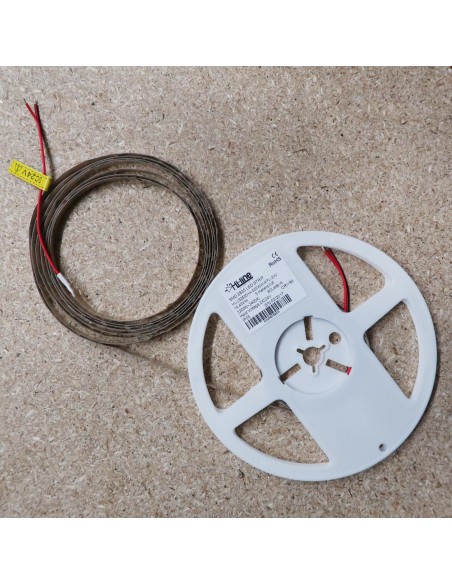

The LED strip comes with a 15cm wire ending on each side of the strip roll.Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).
Soldering is recommended for the connection of LED strips. However, if a solder-free connection is preferred, Hi-Line’s solder-free connectors offer the best solution currently available on the market.
Please Note:
Do to the very thin coating on NPU strips, it is not possible to use IP65 connectors. This is due to the connector’s concave design, which won’t clamp onto the strip when closed. As such, it is recommended to use the equivalent IP00 connectors, such as the IP00 8mm Strip-to-Wire Connectors and the IP00 8mm Strip-to-Strip Connectors.
All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.
The stated price is for 1 x 5-meter roll LED strip (Warm White) with 300 SMD2835 LEDs – IP54/65 (Splashproof), 24V DC.
Selection of the LED driver depending on the maximum LED strip length
The table below shows the maximum LED strip length, which can be operated with a given LED driver.
To consider the performance drop, which occurs in the power supply cable and the efficiency of the LED Driver, 20% was deducted from the maximum strip length in the table below.
Note that LED strips dimming is possible if the driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.
Installation hints and tips for LED strips can be downloaded from the attachments tab.
