High CRI Ra >90 LED Strip Light - 60 LEDs/m - warm white - 7.2 Watt per meter - 5 meters roll
Non-Waterproof IP00, 24 Volts constant voltage warm white 3000K

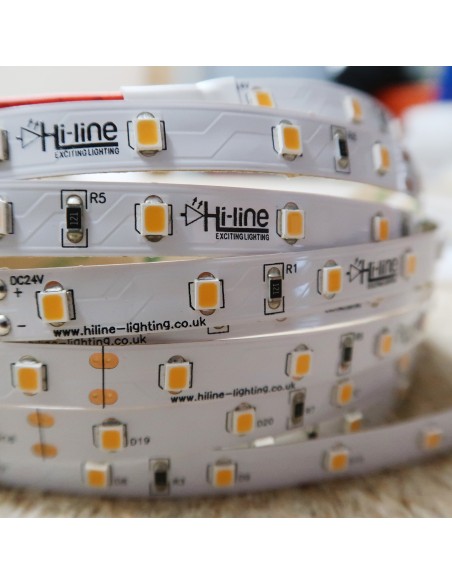

High Bright LED Strip SMD2835 Chip, 60 LEDs/m, 7.2W per meter, 5 meters roll.
This is a high bright LED strip, powered by Epistar SMD2835 LED chips (660 lm per meter/7.2W/60 LEDs)

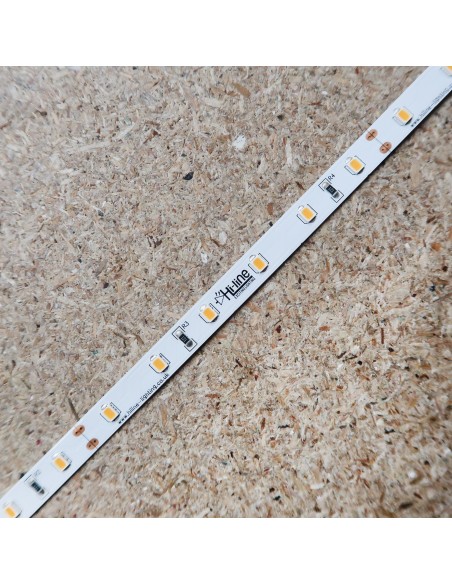

The width of this LED strip is 8mm, height 3mm and can be cut at every 6 LEDs (10cm)
5 Years Warranty
All our LED Strips are dimmable. Please select a suitable PWM LED dimmer/controller.
Please note that soldering is recommended for the connection of LED strips. However, if a solder free connection is preferred, Hi-Line’s solder free connectors offer the best solution currently available on the market.

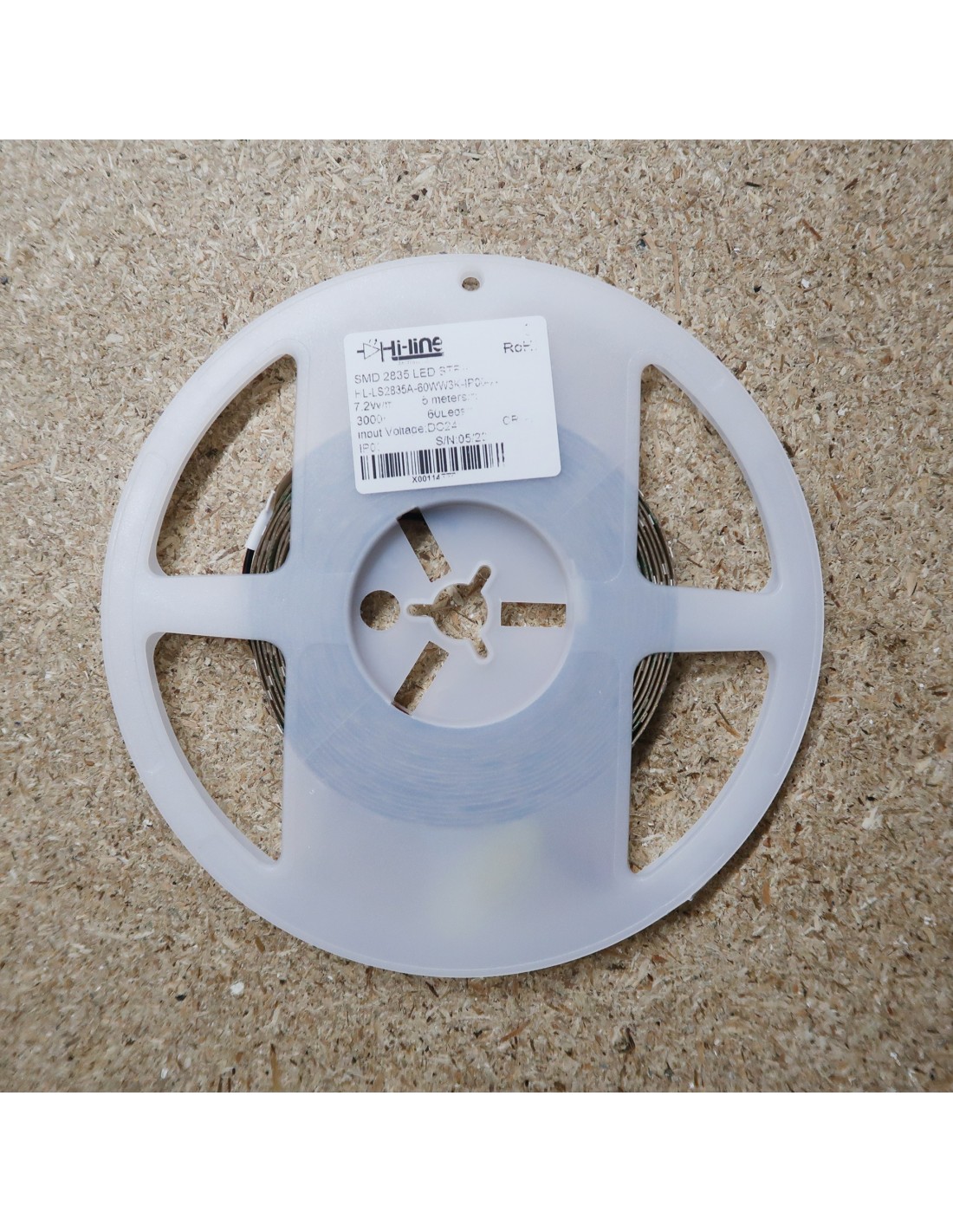

Price is for a 5 meters roll (300 LEDs), non waterproof (IP00), 7.2W/m CRI Ra>90 LED strip warm white 3000K
Please note that the same 3000K warm white LED strip is available with a higher brightness with 14.4W per meter power consumption.
Selection of the LED driver depending on the maximum LED strip length
The table below shows the maximum LED strip length, which can be operated with a given LED driver.
To consider the performance drop, which occurs in the power supply cable and the efficiency of the LED Driver, 20% was deducted from the maximum strip length in the table below.
Note that LED strips dimming is possible if the driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.
For more information about the installation of LED Strips, you can download below “Installation of LED Strips”.
