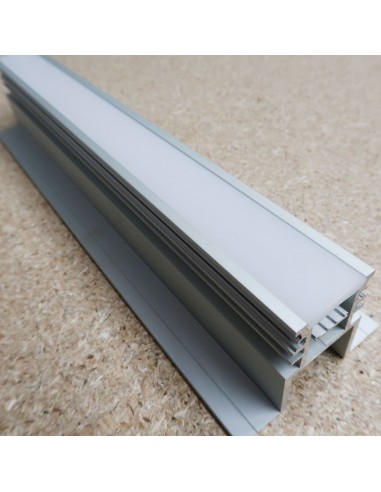

Walk and drive-over in-ground IP67/68 Led Aluminium Profile, 1m length
Can fit up to 15mm wide LED strips, suggested for up to 19.2W/m LED tape.
Product dimensions: L1000* W41mm (top glass trim)/80.5 fin-fin bottom)* H66mm*
This LED underground light is a perfect solution for outdoor lighting, widely used in garden, clubs, stages, parks, plazas, tunnels, brides, hotels, commercial buildings facade, mosques, art galleries, historical buildings and more.

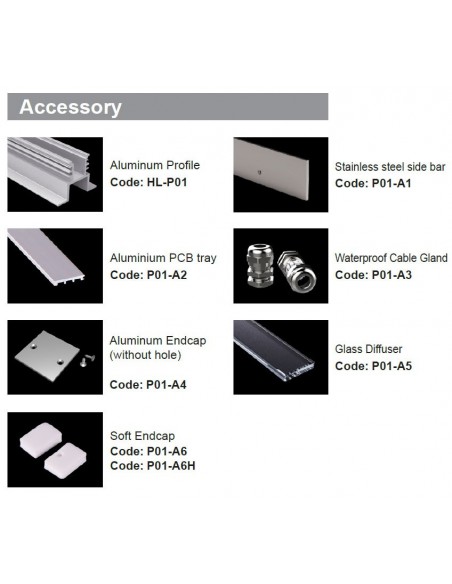

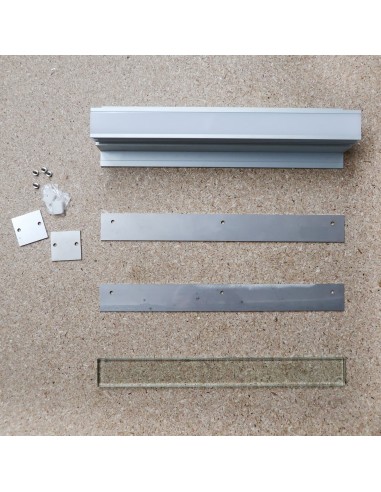

Included in the Kit:
1 x 1m aluminium LED Profile
1 x 1m Milky diffuser channel
2 x Silicon End cap for the diffuser/channel
1 x Aluminium LED strip mounting bar
2 x Stainless Steel End cap (+ 4 screws)
1 x Clear Glass cover - Tempered glass
2 x Stainless steel side bar (+ 12 screws)
Features:
IP68 profile, equipped with stainless bar, waterproof cover, silicone endcaps, waterproof connector and cable.
Stainless steel housing, high waterproof rating of IP68 - ideal for lengthy in-ground use.
Glass cover note: Glass cover supplied in 1 meter lengths and we cannot cut (Ex-Stock).
Size: L1000*W69mm*H65mm
Strips: Fits up to 15mm wide LED strip
Installation method: In-ground
Beam Angle: 80 Degrees
IP Rating: IP67/68
IK Rating (Impact Protection): Protected against 20 joules impact.
Equivalent to impact of 5 kg mass dropped from 400 mm above impacted surface.
Static Pressure: Up to 2 tonnes.
Temper: T5 (Cooled from an elevated temperature shaping process then artificially aged.)
Grade: 6063 Aluminium Alloy
Cuttable: Hacksaw (profile only)
Colour: Customised Anodized/Powder Coated/Spray Painted
Optional accessories:
IP68 Waterproof connector / IP68 waterproof connection box / Waterproof Cable Gland
Material: 6063-T5 Silver anodized Aluminium
Important Note:
This profile is designed to achieve an IP67/68 waterproof rating only when properly sealed using a silicone adhesive/sealant along the edges of the diffuser cover and end caps. If you drill the profile (e.g., for cable entry or voltage injection to prevent voltage drop in long runs), ensure proper isolation and sealing to avoid water ingress. For installations using IP68 LED strips and connectors, remember that the IP68 rating is valid only if the connections are correctly sealed with specialised silicone sealant to maintain waterproof integrity. Please note that flooding, heavy rain, or water pooling in gardens and similar installations can cause damage, even when using waterproof strips. Regular maintenance is essential to ensure long-term performance and to inspect for any compromised seals.
