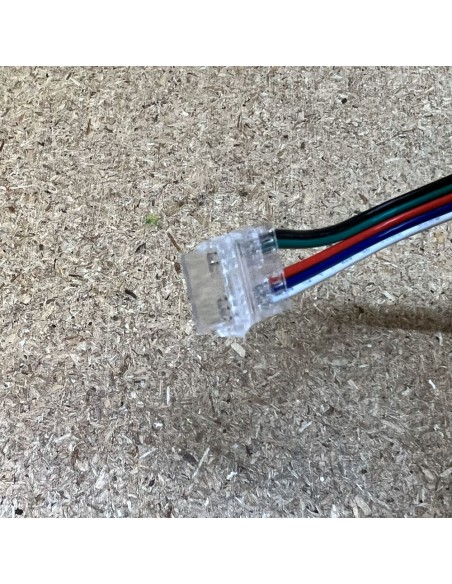

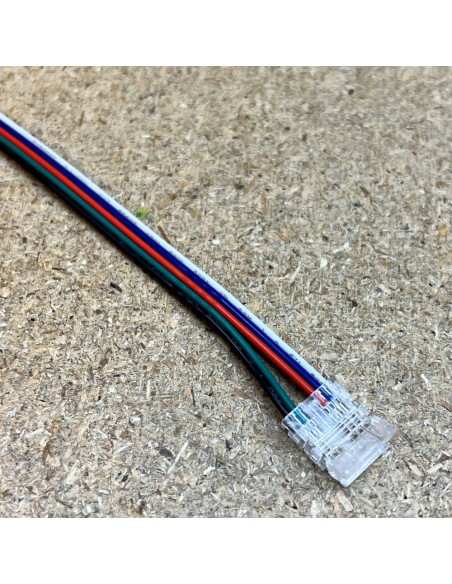

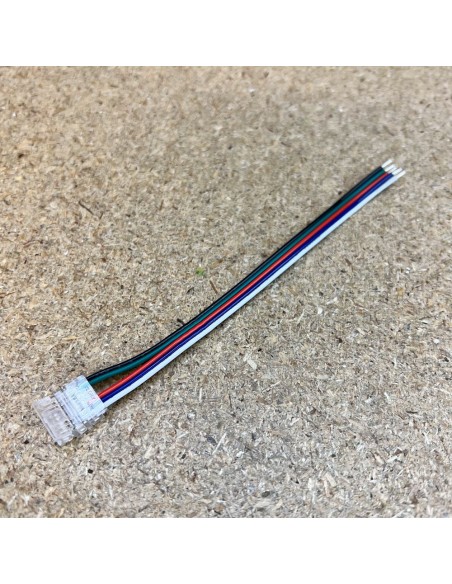

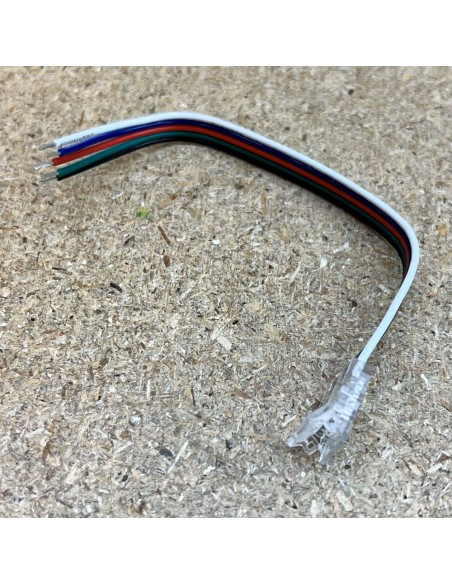

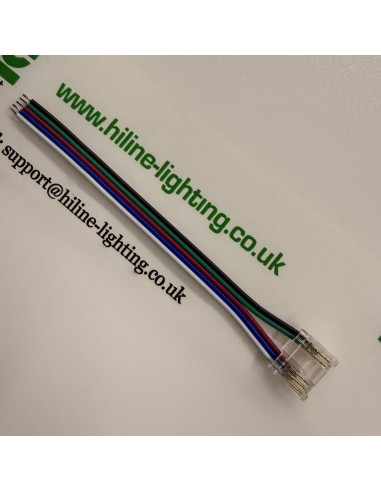

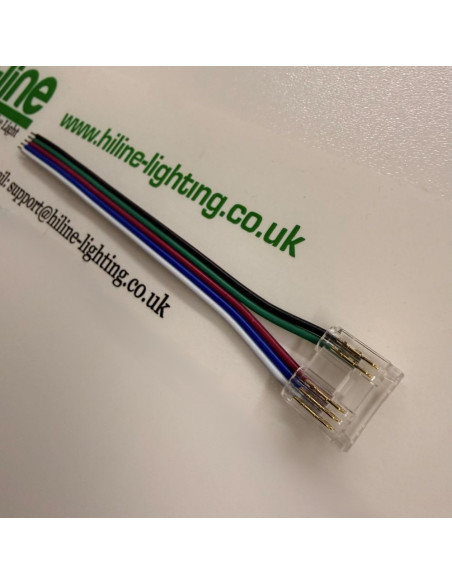

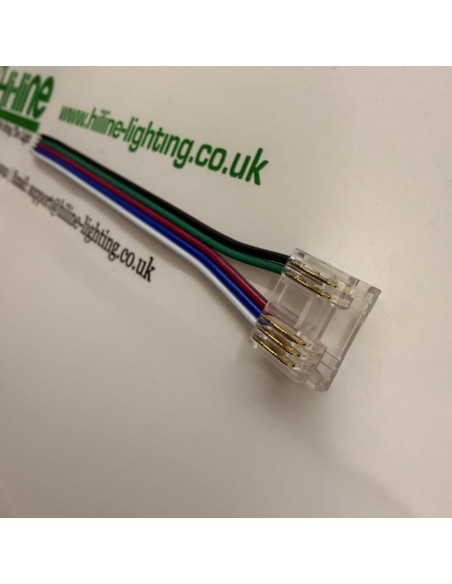

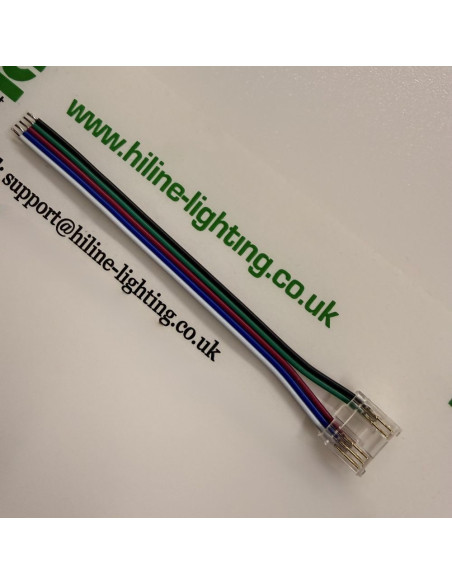

COB RGBW 5-Pin 15cm Strip-to-Wire Connector for 12mm LED Tape
The COB RGBW 5-Pin 15cm Strip-to-Wire Connector is designed for Hi-Line COB RGBW 12mm LED tape. It features a 5-pin (RGBW) connection, 15cm AWG22 5-core ribbon flat wires, supports 3V-24V, and handles up to 3.5A per contact. Ideal for connecting up to 5m of LED strip.
Important Product Details
The COB RGBW 5-Pin 15cm Strip-to-Wire Connector is designed specifically for Hi-Line COB RGBW 12mm LED tape. It may be compatible with other LED strips, but this is not guaranteed. Returns are not accepted for connectors.
Key Features
This connector is designed for Hi-Line COB RGBW 12mm LED tape. It features a 5-pin (RGBW) connection for secure and reliable connections. The connector is 15cm long with AWG22 5-core ribbon flat wires and operates within a voltage range of 3V to 24V, handling a maximum current of 3.5A per terminal.
Important Usage Note
The COB RGBW 12mm LED Strip-to-Wire Connector can handle a maximum current of 3.5A through each contact. Due to the common anode contact, the total current is limited to 3.5A. At 24V, the maximum load is 84 watts. For example, with a 15W/m COB RGBW LED strip, you can connect up to 5 metres of LED strip. This connector should be used at the end of a 5m strip to join another 5m strip, but it cannot be used at the beginning of a 10m length to join the remaining 9m.
Wire Configuration: Equipped with 22 AWG flat ribbon wires in the colour sequence of black, green, red, blue, white, and yellow. Important: Wire colours may not align with standard LED strip configurations. Please verify and match the wire colours according to the specifications printed on your LED strip.
Looking for Related Products or Accessories?
Discover compatible products and accessories by clicking the 'Related Products' tab at the top of this product description on desktop, or just after this section on mobile devices. For detailed specifications, the 'Product Specification' tab is also available at the top of this description, offering immediate access to important product details. If you need technical data or installation guides, the 'Attachments' tab is located in the same area. To refine your search within any product category, the "REFINE BY" filter system is positioned on the left side of the screen on desktops and at the top of the page on mobiles, ensuring a seamless browsing experience.
- Brand
- Hi-Line
- Connector type
- strip to power connector
- Connector width
- For 12mm COB Strips
- Number of terminals
- 5 pin (RGBW COB Strips)
- IP Rating
- IP00 (Non-waterproof)
- Voltage
- 3-24V DC
- Width of strip
- 12mm
