Securely connect Hi-Line Lighting 8mm LED strips (COB & SMD) to 2-core wire using this screw fixing connector. Suitable for flexible and rigid strips, it supports non-waterproof (IP20) and modified waterproof strips. Compatible with 16-22 AWG wires, DC 3V-24V, and max 6A.
Important Product Details

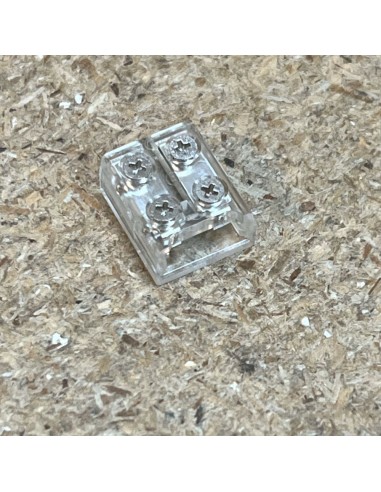

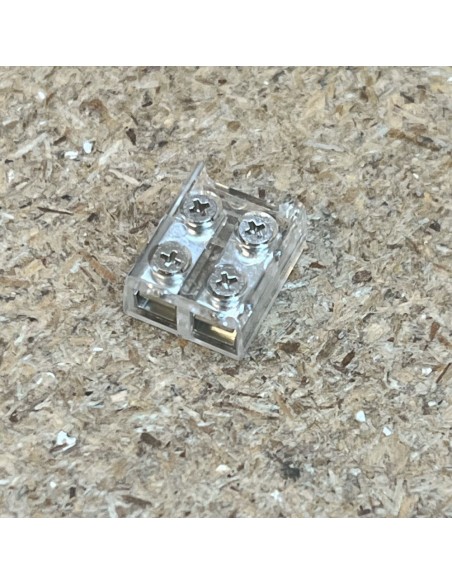

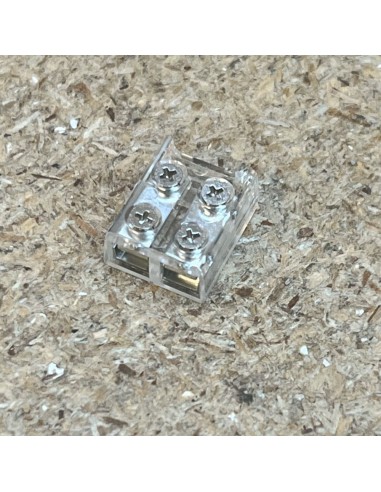

Introducing the Screw Fixing Connector 2 Pins, designed specifically for Hi-Line Lighting LED strips, both SMD and COB types, with a width of 8mm. This connector provides a reliable and secure solution for connecting LED strips to wires, ideal for various lighting projects.
The connector perfectly matches Hi-Line Lighting 8mm wide LED strips and is compatible with other brands' 8mm LED strips, though we do not guarantee compatibility or accept returns for these. One side features traditional screw terminals for connecting 2-core wire (not included), ensuring a secure and stable connection. The other side allows easy insertion of the LED strip, held firmly in place with two screws.
This connector is suitable for both flexible and rigid LED strips, providing great flexibility in various installation scenarios. Designed for non-waterproof (IP00/20) strips, it can also be used with waterproof strips by carefully removing the coating before connecting and reapplying proper coating to maintain the desired IP rating.
Use two connectors with wire in between to connect two LED strips, ideal for forming corners, changing directions, or for LED strip cabinet installations. It supports 2-core wires in sizes 16 to 22 AWG or 0.25 to 0.8 mm². The connector measures 13.3 x 11.5 x 6.4mm, making it easy to fit into various installation spaces, and supports DC 3V to 24V with a maximum current of 6A (dependent on wire).
Specifications:
Fixing Method: Screw Fixing
Material: Polycarbonate, Copper
Pin Quantity: 2 Pins
Workable PCB Type: Flexible / Rigid 8mm, IP20 COB & High Density
Voltage Range: DC 3V to 24V
Maximum Current: 6A (dependent on wire)
Wire Gauge Support: 16 to 22 AWG / 0.25 to 0.8 mm²
Dimensions: 13.3 x 11.5 x 6.4mm
Width: 8mm
Connection Type: Screw terminal for 2-core wire, screw clamp for LED strip
Installation Instructions:
Wire Connection: Loosen the screw terminals and insert the 2-core wire (not included). Tighten the screws to secure the wire in place.
LED Strip Connection: Insert the 8mm wide LED strip into the designated slot. Tighten the screws to secure the strip.
Important Note: Returns for connectors are not accepted due to our terms and conditions. Ensure all installations are performed by qualified professionals in compliance with relevant regulations.
Upgrade your lighting setup with our reliable and easy-to-use Screw Fixing Connector 2 Pins for strip-to-wire connections, the perfect accessory for Hi-Line Lighting 8mm LED strips, compatible with both COB and SMD types.
