Important Product Details

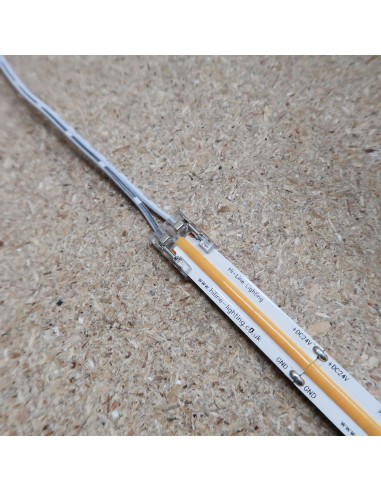

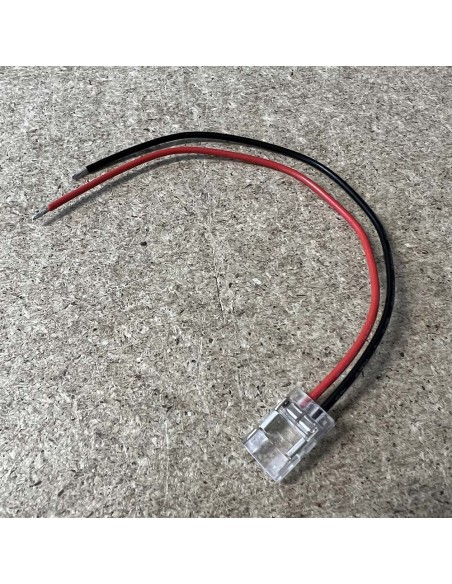

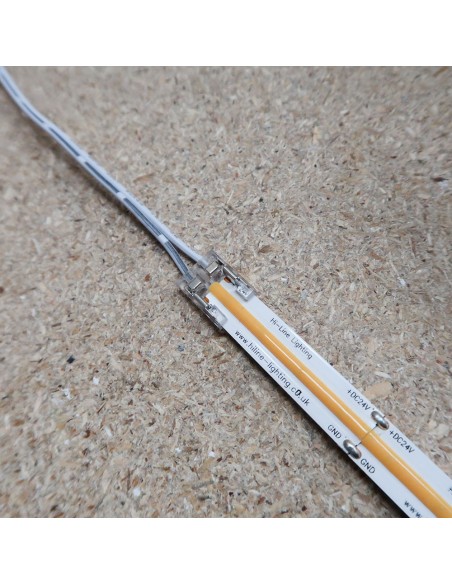

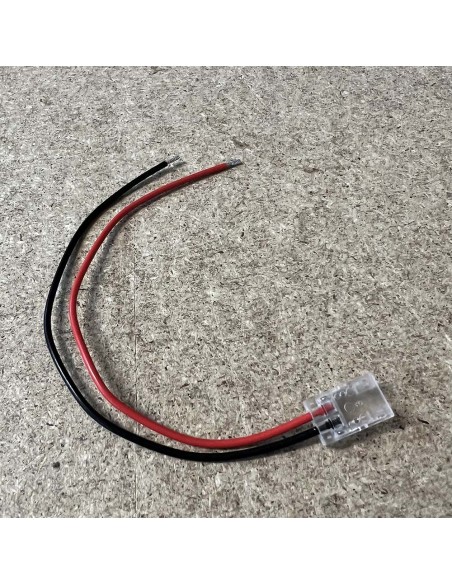

The LED strip connector is specifically designed for 8mm wide IP00/IP20 non-waterproof COB single colour LED strips, allowing discreet installation with its topless style.
It comes with a 15cm pre-wired tail and is made of high-quality materials, making it suitable only for IP00/IP20 single-color 8mm wide COB LED strips.
The connector is also compatible with conventional IP00/IP20 single colour LED strips with 180 LEDs/m, 240 LEDs/m.
Please note that it cannot be used with any gel-coated (PU) IP65 LED strips.
Technical Data
Size: L16mm X W9mm X H4mm
Colour: Transparent
Number of Pin: 2
Wire: Teflon 18 AWG black/red (pre-wired)
Pin Pitch: 3mm
Connection hardware: High precision brass(Cu)
Voltage range: DC 3-24V
Maximum current: 4.5A
Min. LED Strip Thickness: >0.2mm
Normal working temperature: ≦60°C
Working Temperature: -20°~+40°C
Rated Standard: IEC/EN 60664-1
Shell material: Polycarbonate
Flame Retardant: UL94v-0
Pin Surface Treatment: Tin-plating
Packaging: 1set
