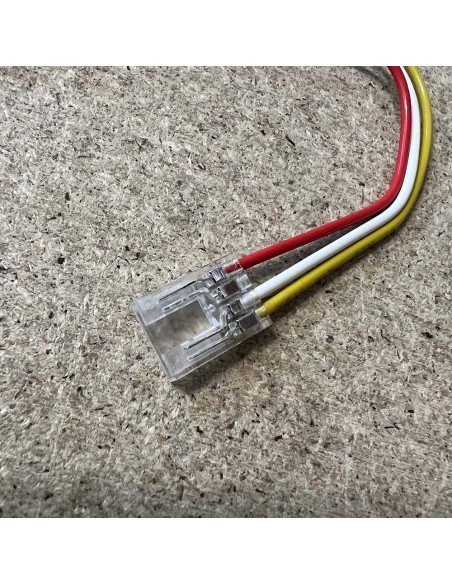

3 pin COB strip to wire connector for tunable white strips
Key Features:
- 3 pin COB LED strip to power (wire) connector
- To be used with tunable white COB LED strips

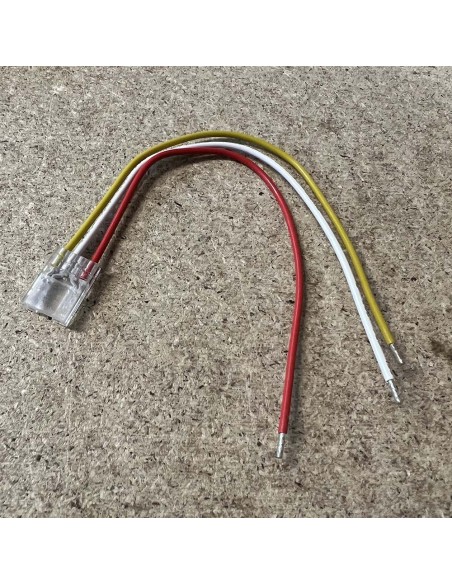

- Connector features a 15cm pre-wired tail
This LED strip connector is specifically designed to connect spotless tunable white COB LED strips with 10mm non-waterproof LED tape. The connector features an invisible, topless design that allows for discreet installation.
In addition, the connector comes with a 15cm pre-wired tail for added convenience. However, please note that this connector is not compatible with any gel-coated (PU) IP65 LED strips.
Technical Data
Size: L16mm X W11mm X H4mm
Colour: Transparent
Number of Pin: 3
Wire: 150cm Teflon 18 AWG Red/White/Yellow
Connection hardware: High precision brass(Cu)
Voltage range: DC 3-24V
Maximum current: 4.5A
Min. LED Strip Thickness: >0.2mm
Normal working temperature: ≦60°C
Working Temperature: -20°~+40°C
Rated Standard: IEC/EN 60664-1
Shell material: Polycarbonate
Flame Retardant: UL94v-0
Pin Surface Treatment: Tin-plating
Packaging: 1set
- Brand
- Hi-Line
- Connector type
- strip to power connector
- Connector width
- For 10mm COB Strips
- Number of terminals
- 3 pin (tunable white or pixel strips)
- IP Rating
- IP00 (Non-waterproof)
- Voltage
- 3-24V DC
