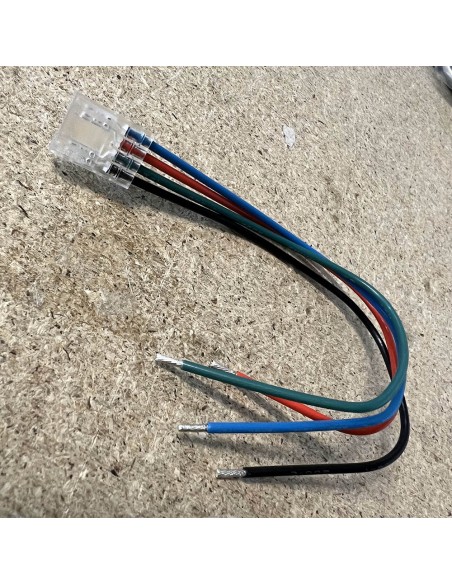

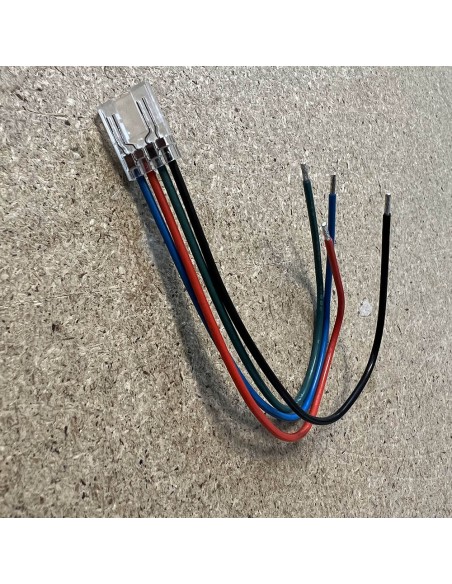

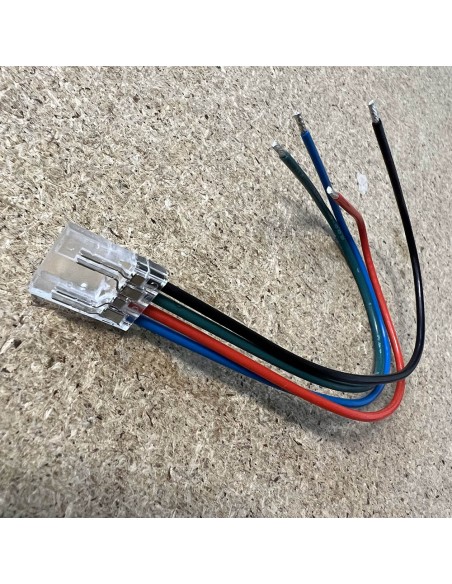

Introducing the Hi-Line Lighting 10mm 4-Pin COB RGB LED Strip Connector – the perfect solution for connecting your IP00/IP20 non-rated COB dotless LED strips to a controller. Designed with convenience and ease of use in mind, this connector is ideal for both DIY enthusiasts and professional installers.
Key Features:
- Compatibility: Specifically designed for 10mm RGB COB dotless LED strips with 4-pin connectors, ensuring a secure and seamless connection.
- IP Rating: Compatible with IP00/IP20 non-rated LED strips, providing reliable connectivity for a range of indoor lighting projects.
- Pre-Mated Wires: 15cm (150mm) pre-mated wires with Black-Green-Red-Blue colour order allow for effortless connections to controllers, saving time and simplifying the installation process.
- Easy Installation: The user-friendly design makes it easy for anyone to connect their COB RGB LED strips without hassle or complications.
- Quality and Durability: This connector is built to last and deliver consistent performance, ensuring your lighting setup remains flawless.
Technical Specifications:
- Connector Housing Size: 15.6 x 11.6 x 3.3 mm
- Housing Material: Polycarbonate
- Pin Quantity: 4-pin
- LED Strip Width: 10mm
- Wire Length: 150mm
- Wire Colour Order: Black-Green-Red-Blue
- LED Strip IP Rating: IP00 / IP20
- Wire Specification: Teflon 18AWG / 0.81mm²
- Connector Rating: DC3~24V / 4.5A
Note on Wire Colour Order: The black wire is the common anode wire, and the remaining wires are negative, corresponding to the LED strip colours Red, Green, and Blue. If the strip colours do not match (e.g., green appears instead of red), it may be due to a mismatch in wire colour order with the strip light. Simply switching the wires (sometimes all 3) should correct this issue. This connector is designed to work seamlessly with Hi-Line Lighting RGB COB strips.
Upgrade your lighting project with the Hi-Line Lighting 10mm 4-Pin COB RGB LED Strip Connector. Enjoy the convenience of a streamlined installation process and the satisfaction of a well-lit space. With its compact design, durable polycarbonate housing, and high-quality Teflon wires, this connector is built to withstand the test of time. Order yours today and experience the difference this versatile connector can make.
