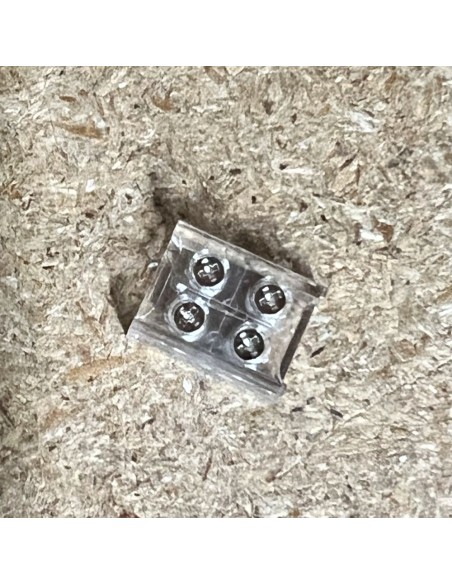

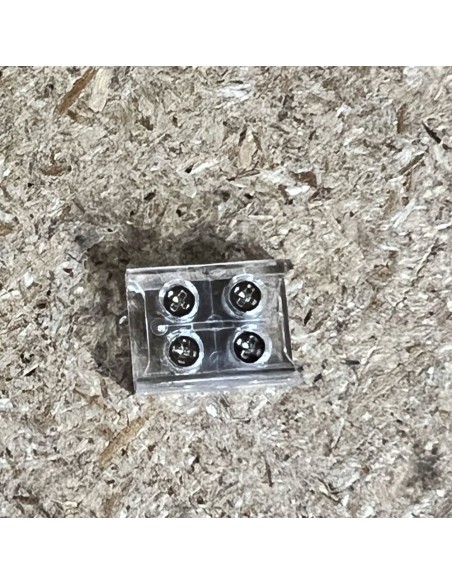

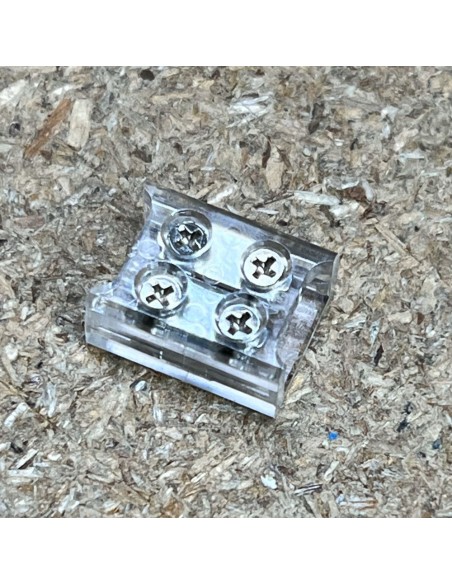

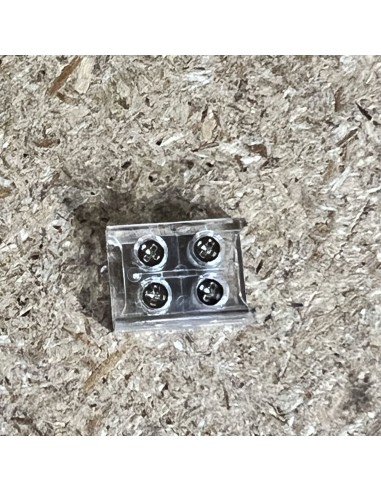

Our Screw Fixing Connector is tailored for Hi-Line Lighting LED strips, both COB and SMD types, with an 8mm width. This strip-to-strip connector offers a dependable solution for directly joining LED strips without the need for wires, ensuring a smooth and secure connection suitable for various lighting configurations.
Designed to be compatible with Hi-Line Lighting 8mm wide LED strips, this connector can also fit other brands' 8mm LED strips, although we do not guarantee compatibility and cannot accept returns for these. Each side of the connector features screw terminals that firmly secure the LED strips, providing a robust and steady connection.
Ideal for both flexible and rigid LED strips, this connector allows for versatile installations. It is intended for non-waterproof (IP00/20) strips but can be adapted for waterproof strips by carefully removing and reapplying the coating to maintain the desired IP rating.
Perfect for creating corners, altering directions, or for cabinet lighting installations, this connector removes the need for intermediate wiring. It supports a voltage range from 5V to 24V DC with a maximum current of 6A. Measuring 13.3 x 11.5 x 6.4mm, this compact connector is designed to fit seamlessly into various spaces.
Specifications: Fixing Method: Screw Fixing Material: Polycarbonate, Copper Pin Quantity: 2 Pins Workable PCB Type: Flexible / Rigid 8mm, IP20 COB & High Density Voltage Range: DC 5V to 24V Maximum Current: 6A Dimensions: 13.3 x 11.5 x 6.4mm Width: 8mm Connection Type: Screw terminal for strip-to-strip connection
Installation Instructions:LED Strip Connection: Loosen the screw terminals on both ends of the connector. Insert the 8mm wide LED strips into each side of the connector. Tighten the screws to secure the strips.
Important Note: Returns for connectors are not accepted due to our terms and conditions. Ensure all installations are performed by qualified professionals following relevant regulations.
Upgrade your lighting setup with our Screw Fixing Connector 2 Pins for direct strip-to-strip connections. Ideal for Hi-Line Lighting 8mm LED strips, compatible with both COB and SMD types.
