Key Features:

  • 2 pin LED strip to strip connector
  • Supports high current LED strips
  • For 10mm IP65 single colour LED strips
  • Workable Wire Gauge: 22 ~18 AWG
HL-SC-A10-IP65
65 Items In stock
Next working day delivery
£8.20
(£
9.84
with VAT)

(£1.64 each)

VAT excluded

Tags:

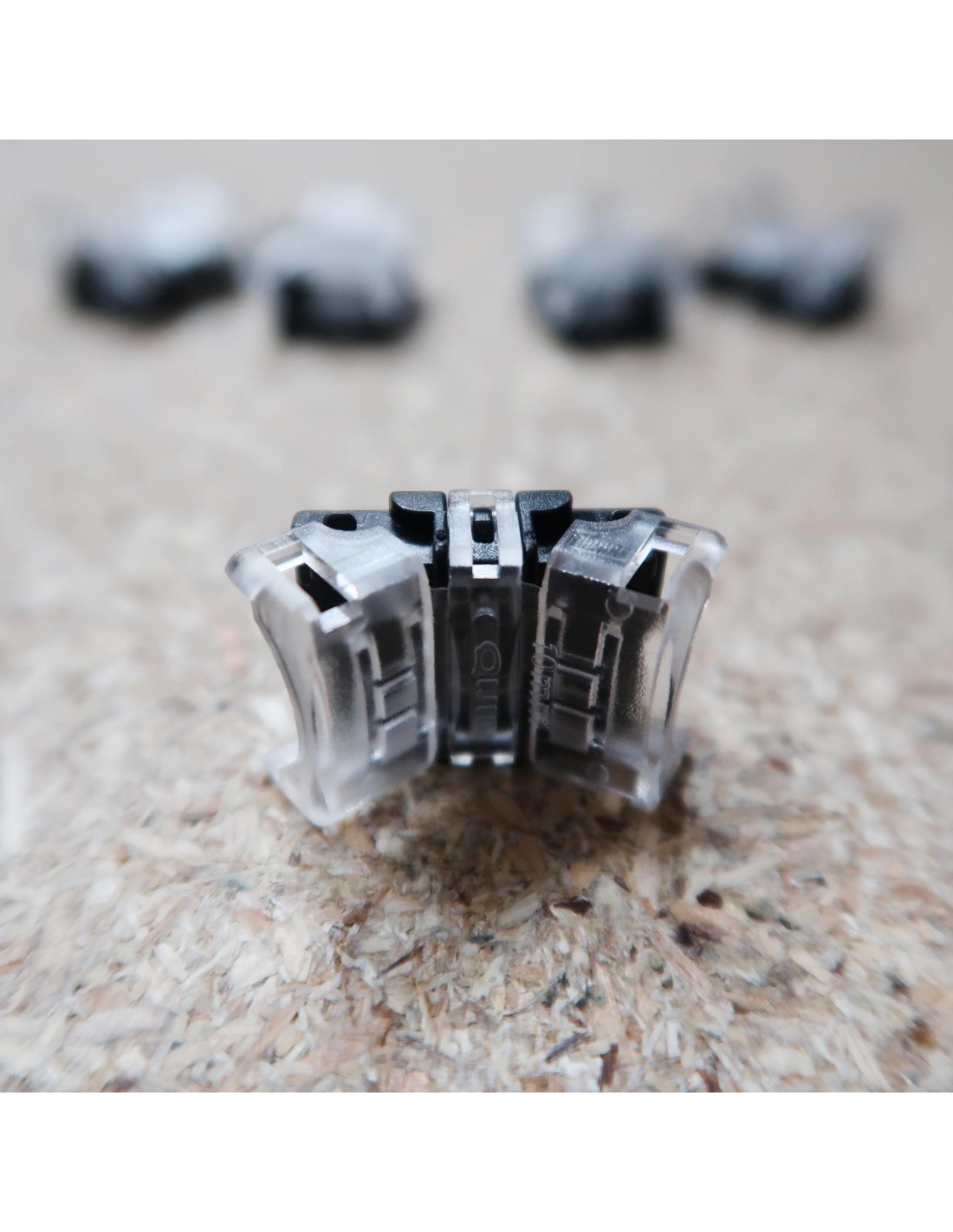

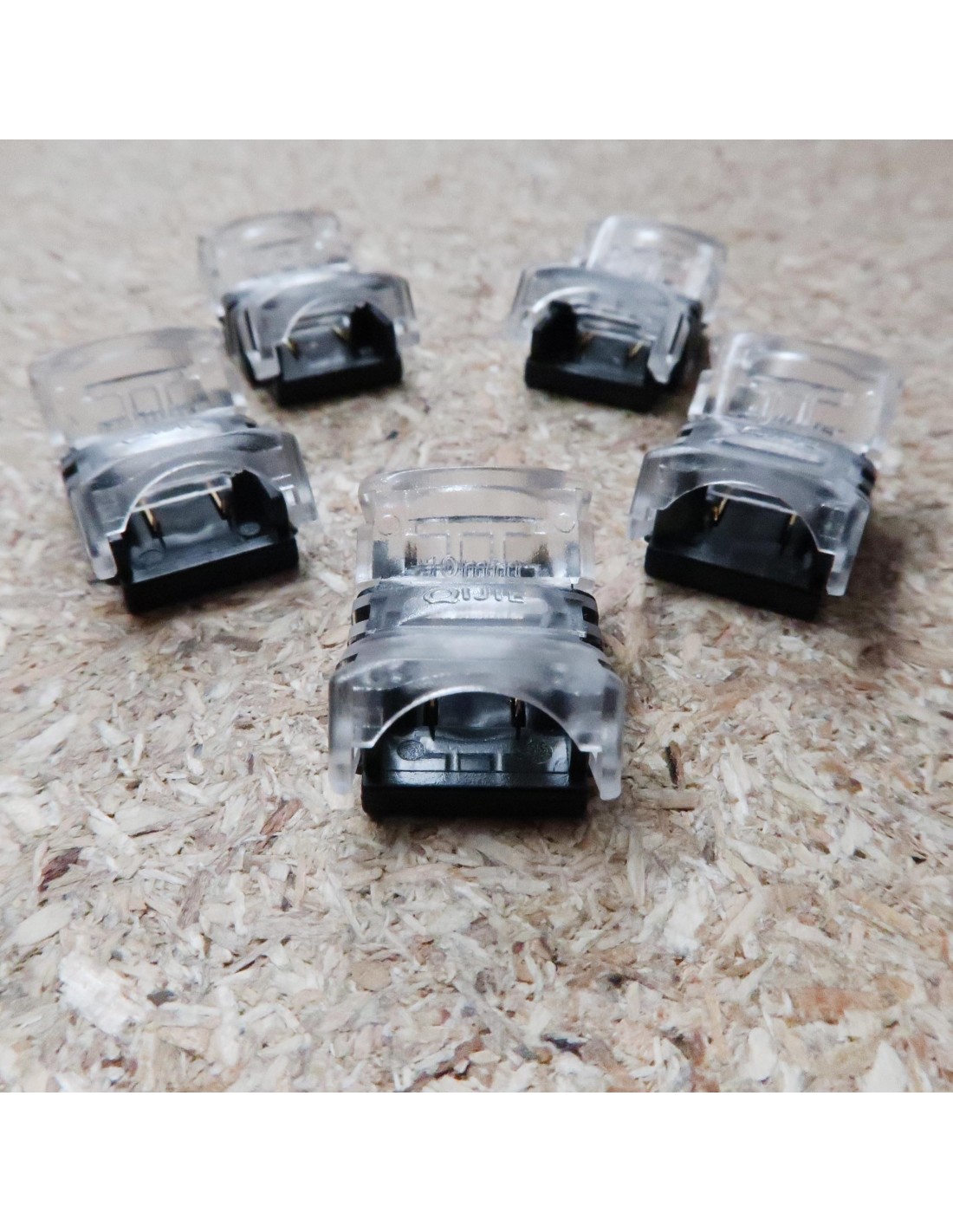

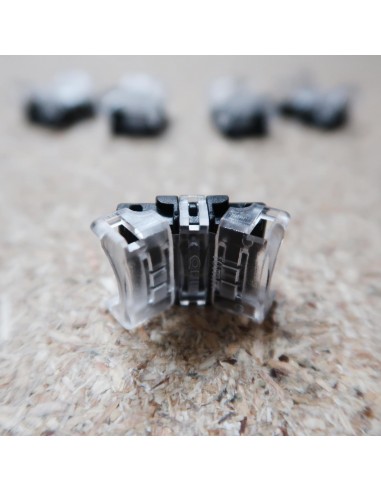

A strip to strip connector designed for 10mm wide IP65 single colour LED strip

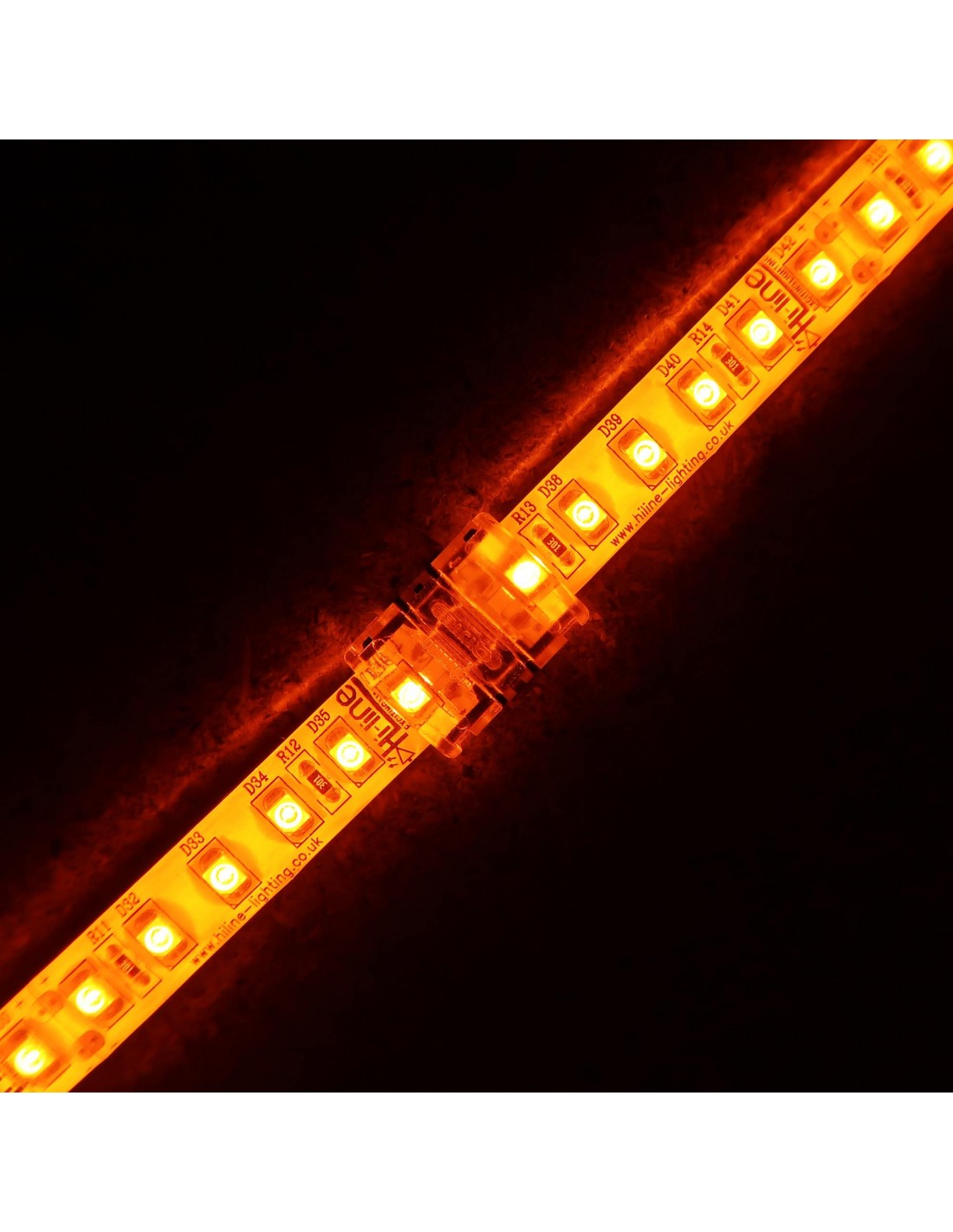

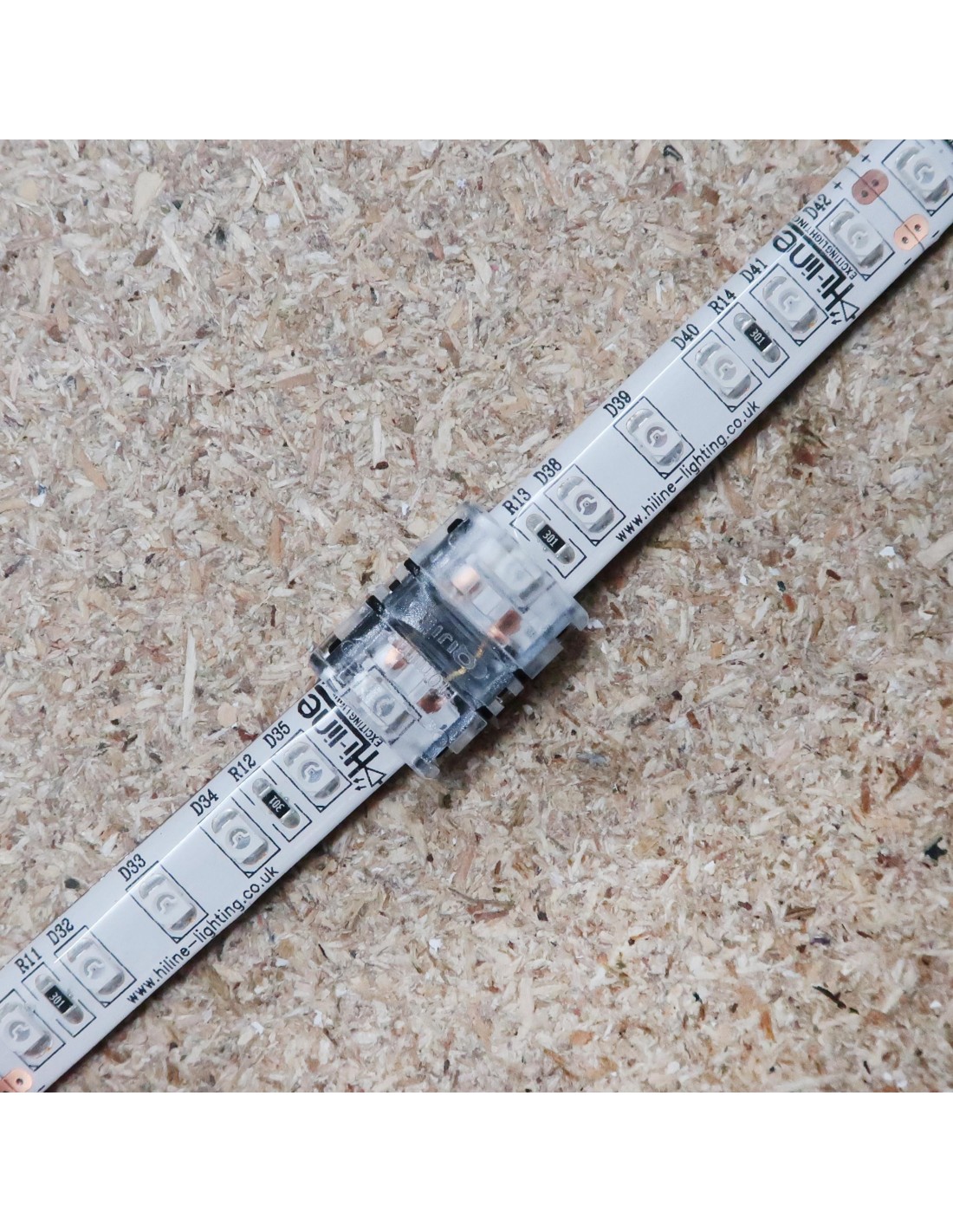

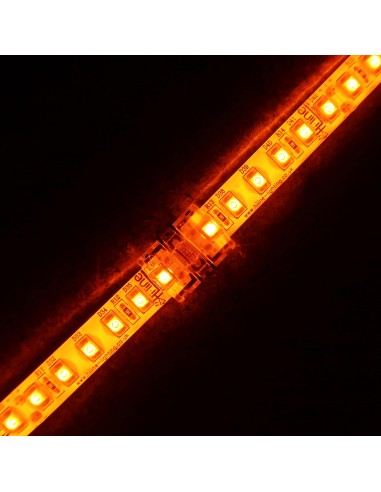

Connect IP65 splashproof / waterproof LED strip without removing surface coating gel

This is a very high quality strip to strip connector suitable only for IP65 single colour 10mm LED strips.

Compatible with 30-120 LEDs/m LED strips (10mm single colour). This connector is made of flame retardant material.

Supports high current LED strips!

The IP65 connectors are suitable for use with the gel coated (PU) IP65 LED strips (please note that this connector is not compatible with the IP00, nano or nano PU LED strips).

Note: Please DO NOT close caps of the connector before strip to be in place, as it is hard to open!

Technical Data

Size: L25mm X W14.6mm X H7.7mm

Colour: Transparent with black base

Number of Pin: 2

Workable Wire Gauge: 22 ~18 AWG

Pin distance between them: 5mm

Connection hardware: High precision brass(Cu)

Voltage range: 12-24V

Maximum current: 5A

Normal working temperature: ≦60°C

Working Temperature: -20°~+40°C

Rated Standard: IEC/EN 60664-1

Shell material: Polycarbonate

Flame Retardant: UL94v-0

Pin Surface Treatment: Tin-plating

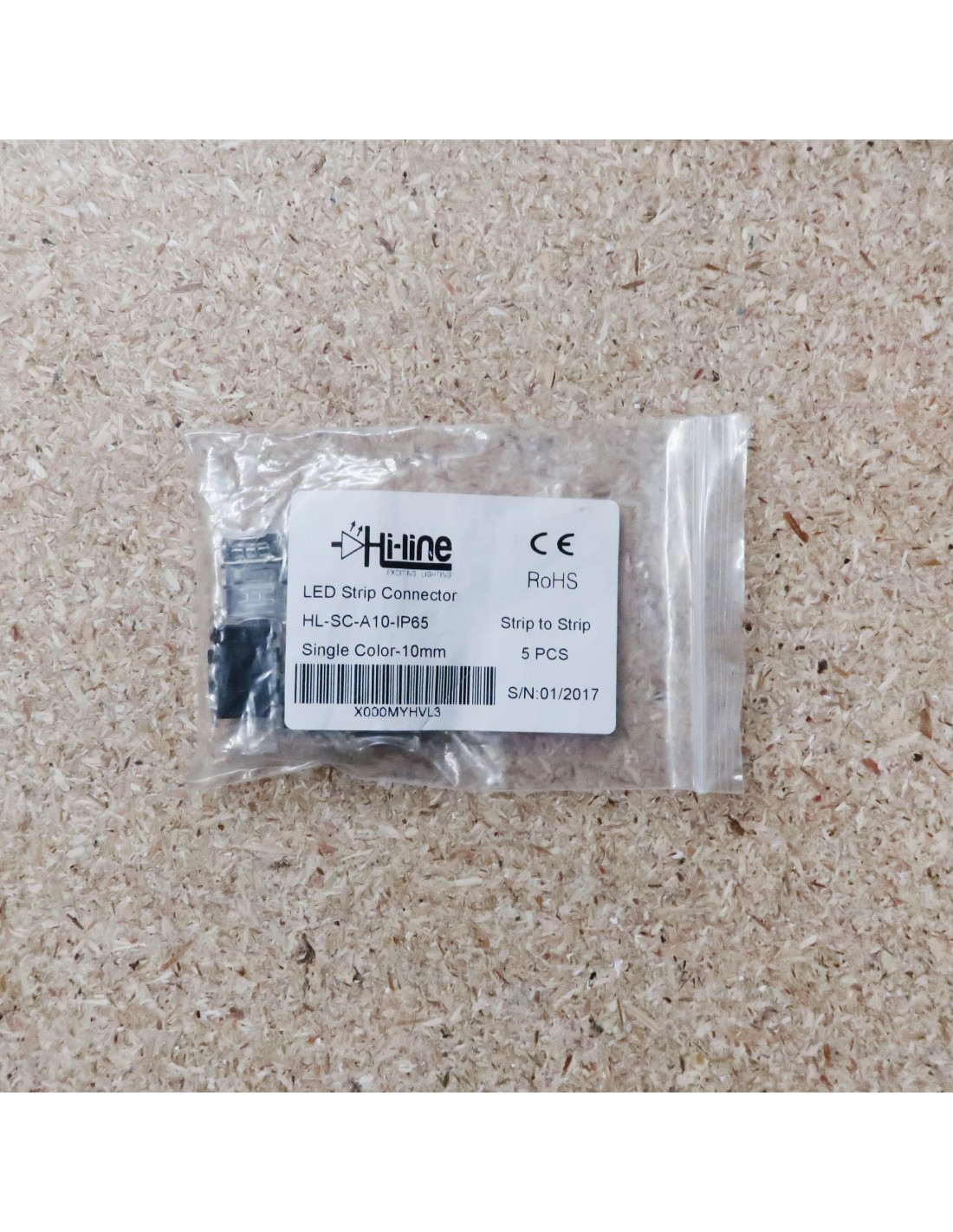

Standard Package: 5pcs/bag

Brand
Hi-Line
Connector type
strip to strip connector
Connector width
For 10mm SMD strips
Number of terminals
2 pin (single colour strips)
IP Rating
IP65 (Splashproof)
Voltage
3-24V DC
