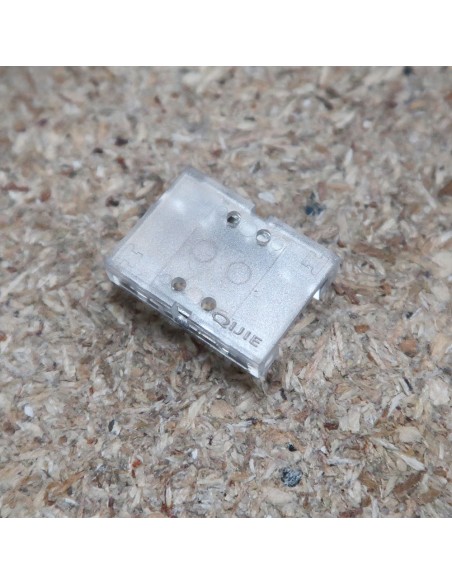

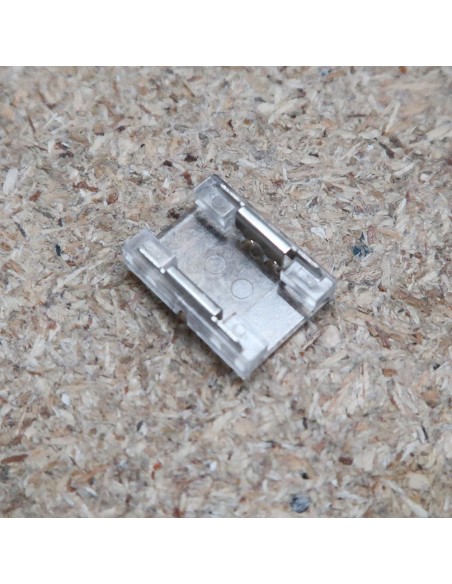

Strip to strip connector for high density COB 10mm IP00 single colour LED strips

Key Features:

  • 2 pin LED strip to strip connector
  • To be used with COB LED strips
  • Supports high current LED strips
  • Also compatible with single colour 10mm strip with 180 LEDs/m and High Density 240 LEDs/m & high current LED strips
HL-COB10-SS-IP00
259 Items In stock
Next working day delivery
£1.80
(£
2.16
with VAT)
VAT excluded

Tags:

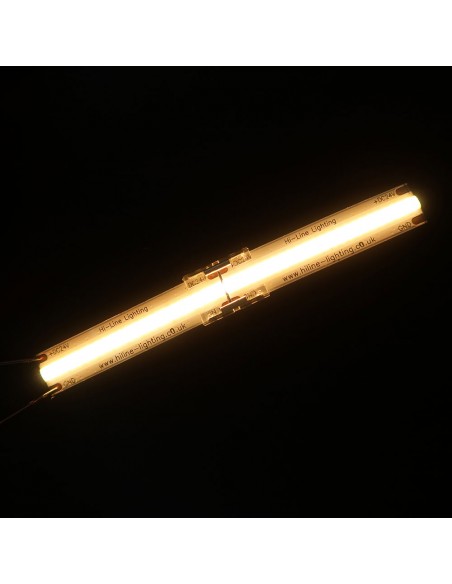

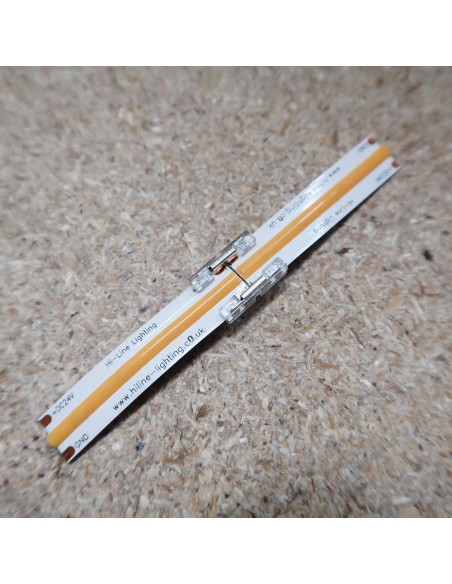

A LED strip connector (strip to strip) designed for 10mm wide IP00/IP20 non-waterproof high density COB single colour LED strips.

*Invisible (topless style) design for discreet installation.

This is a very high quality strip to strip connector suitable only for IP00/IP20 single colour 10mm wide COB high density LED strips.

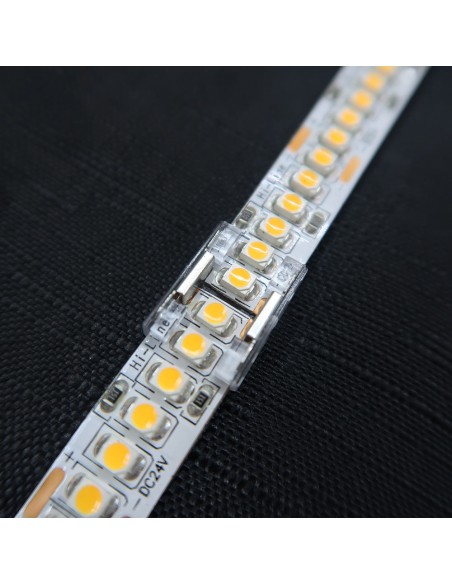

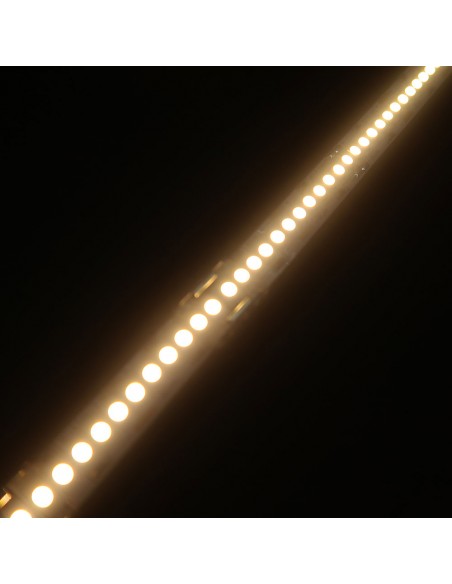

The connector is also compatible with IP00/IP20 single colour LED strips with 180 LEDs/m, 240 LEDs/m.

 This connector is made of flame retardant material.

Technical Data

Size: L18mm X W14mm X H4mm

Colour: Transparent

Number of Pin: 2

Connection hardware: High precision brass(Cu)

Voltage range: DC 3-24V

Maximum current: 5,5A

Min.LED Strip Thickness: >0.2mm

Normal working temperature: ≦60°C

Working Temperature: -20°~+40°C

Rated Standard: IEC/EN 60664-1

Shell material: Polycarbonate

Flame Retardant: UL94v-0

Pin Surface Treatment: Tin-plating

Packaging: 1pcs

Brand
Hi-Line
Connector type
strip to strip connector
Connector width
For 10mm COB Strips
Number of terminals
2 pin (single colour strips)
IP Rating
IP00 (Non-waterproof)
Voltage
3-24V DC
