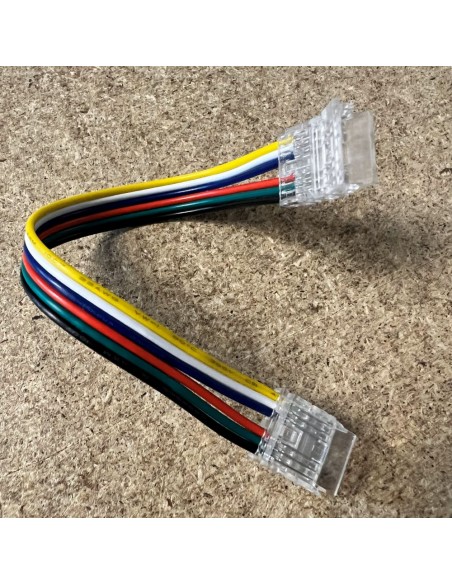

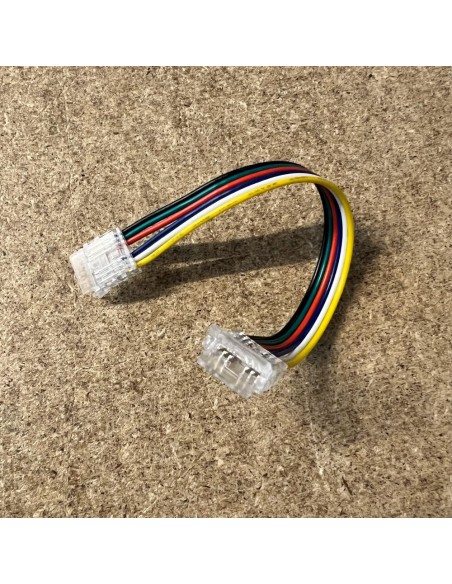

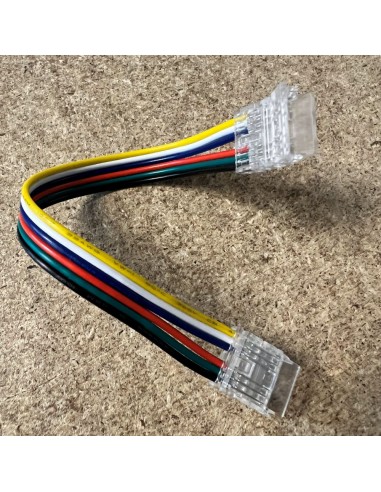

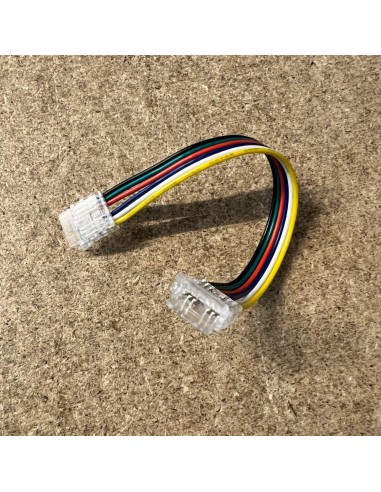

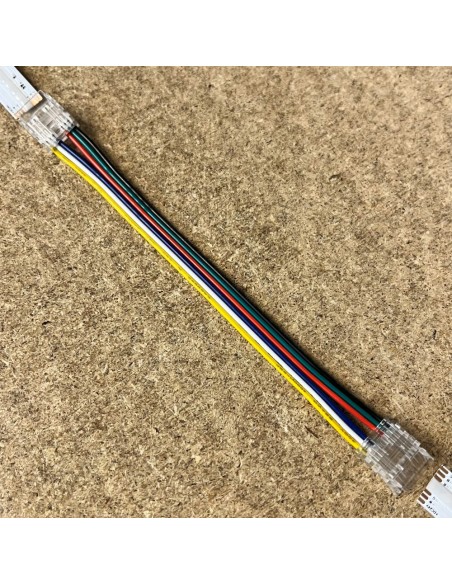

Introducing our COB RGB+Tunable White 12mm LED Strip to Strip Extension Connector, designed to provide flexibility and reliable connections between your 12mm COB RGB+Tunable White LED strips. This connector features a 15cm ribbon flat 6 cores wire, allowing for easy maneuvering around corners or obstacles in your lighting installation.
Key Features:
Compatibility: Specifically designed for 12mm COB RGB+Tunable White LED strips, ensuring a perfect fit and maximum efficiency.

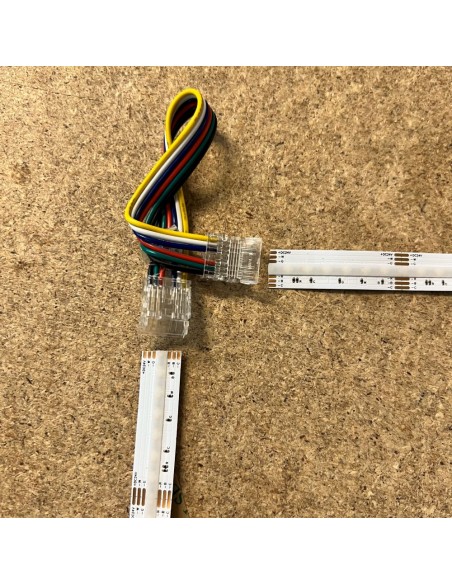

Flexible Installation: 15cm ribbon flat 6 cores wire enables easy navigation around corners and obstacles.
Easy Installation: Simple plug-and-play design for quick and secure connections without the need for soldering.
Durable Construction: Made with high-quality polycarbonate and copper materials to ensure a long-lasting and stable connection.
Compact Design: Slim profile that maintains the sleek appearance of your LED strip installation.
IP00 Rating: Suitable for indoor use where moisture and dust are not a concern.
Specifications:
Connector Type: Strip to Strip Extension
Supported LED Type: 12mm COB RGB+Tunable White
IP Rating: IP00/20 Non-waterproof
Working Voltage: DC 3~24V
Working Current: Max 3.5A (@TA=30 PCB=3OZ) per contact
LED Strip Thickness: 0.25~0.35mm
LED Light Type: COB
Dimensions: Housing Size: 16.5mm (length) x 13.7mm (width) x 4.3mm (height)
Material: Polycarbonate, Copper
Important Usage Note: The COB RGB+Tunable White 12mm LED Strip to Strip Extension Connector can handle a maximum current of 3.5A through each contact. However, due to the common anode contact, the total current passing through the connector is limited to 3.5A. This means at 24V, the maximum load is 84 watts. For instance, with a 16W/m COB RGB+Tunable White LED strip, the connector can be used to connect a maximum of 5 metres of LED strip. This connector should be used at the end of a 5m strip to join another 5m strip, but it cannot be used at the beginning of a 10m length to join the remaining 9m.
Caution for Installation: When using these connectors for COB or SMD strips, inexperienced handling can damage the LED strip. It is crucial to test the connector beforehand to become familiar with its use. Ensure the cut point copper of the section you will use is correctly aligned with the clamping terminal. Inserting the connector too deeply or too shallowly can cause a short circuit of some of the strip's colours. Proper insertion depth is essential to avoid damaging the LED strip. Practice and testing will help achieve the correct technique.

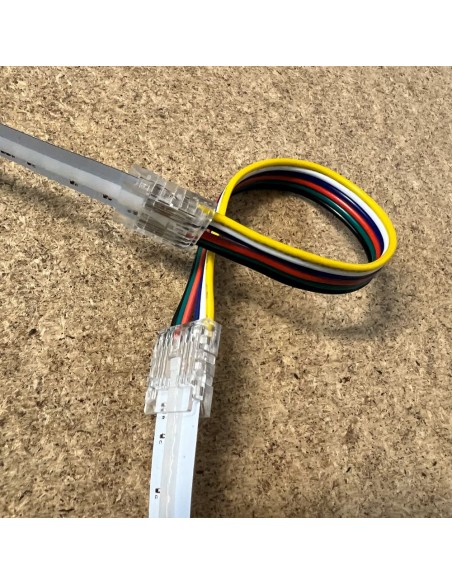

Applications: Ideal for extending lines of 12mm COB RGB+Tunable White LED strips in various settings, including residential, commercial, and retail environments. Perfect for architectural lighting, display lighting, and accent lighting where high-quality colour and brightness control are required. Great for navigating around corners and obstacles in your lighting setup.
Installation Guide: For detailed installation instructions, please refer to our comprehensive installation guide. Ensure all installations are performed by qualified professionals and comply with relevant regulations.
Package Includes:
1 x 12mm COB RGB+Tunable White LED Strip to Strip Extension Connector
Product Code: HL-RGBTWCOB6-EXT-IP00 EAN: 5060440717543
