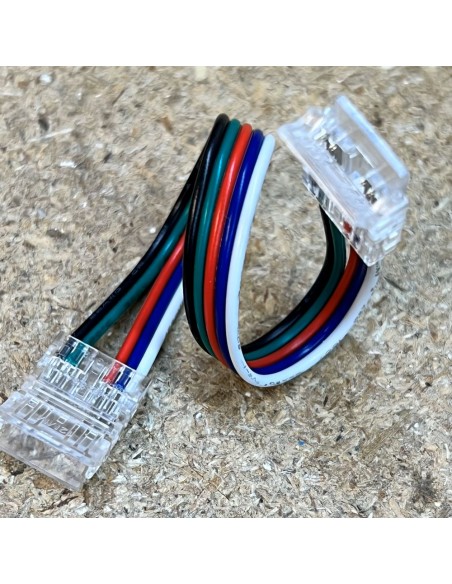

RGBW_COB_LED_Connector_With_Wire_Front

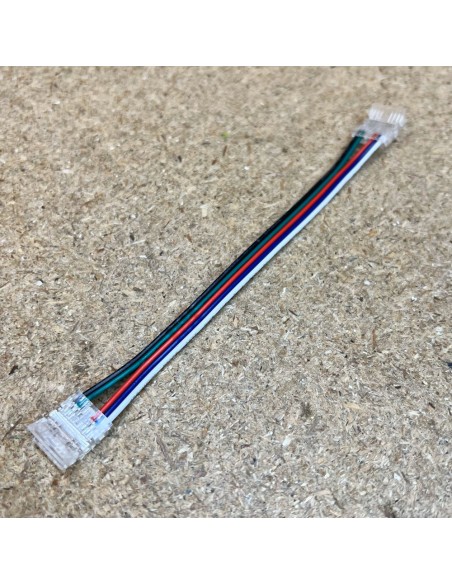

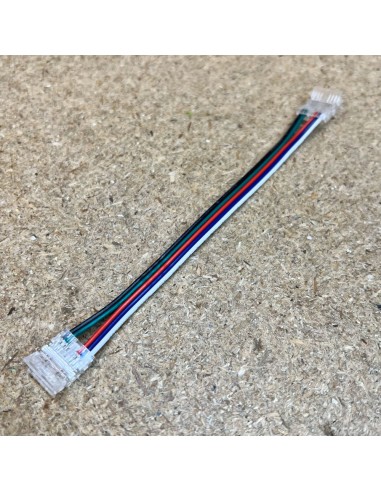

RGBW_COB_LED_Connector_With_Wire_Side

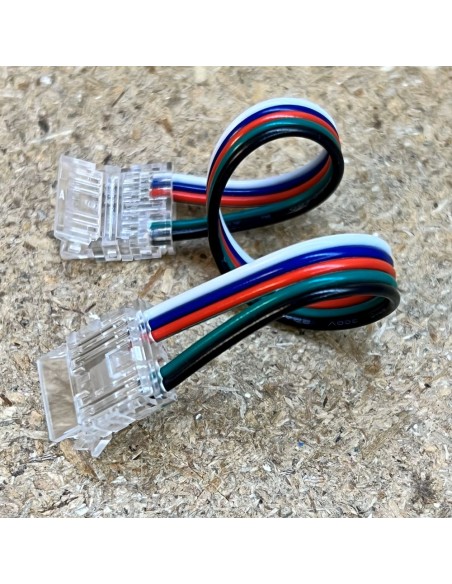

RGBW_COB_LED_Connector_With_Wire_Top

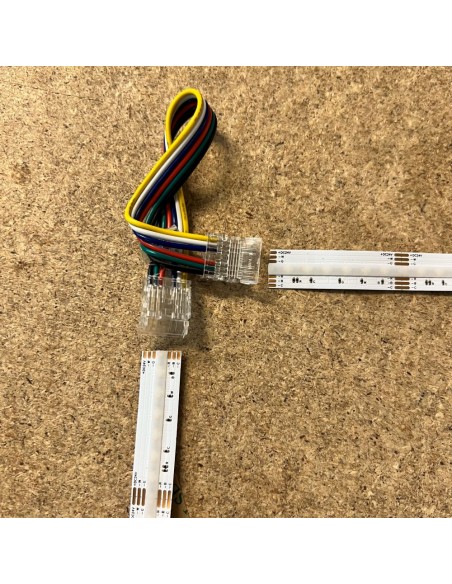

LED-Strip-Angle-Connection
RGBW COB LED Strip-to-Strip Connector - 5 Pin, 12mm, IP20, 15cm
RGBW_COB_LED_Connector_With_Wire_Front
RGBW_COB_LED_Connector_With_Wire_Side
RGBW_COB_LED_Connector_With_Wire_Top
LED-Strip-Angle-Connection
RGBW COB LED Strip-to-Strip Connector - 5 Pin,...

RGBW COB LED Strip-to-Strip Connector - 5 Pin, 12mm, IP20, 15cm

Seamlessly connect your 12mm RGBW COB LED strips with our 5-pin, 4-channel connector. Designed for efficient and reliable indoor lighting connections, this 15cm, IP20-rated connector is ideal for extending your Hi-Line LED strip installations.

Important Product Details

  • optional 250 char. max
HL-RGBWCOB5-EXT-IP00
65 Items In stock
Next working day delivery
£1.90
2.28
with VAT)

(£1.90 each)

VAT excluded

Quantity Unit price You Save
100 £1.81 £9.50
250 £1.71 £47.50
500 £1.62 £142.50
1000 £1.52 £380.00

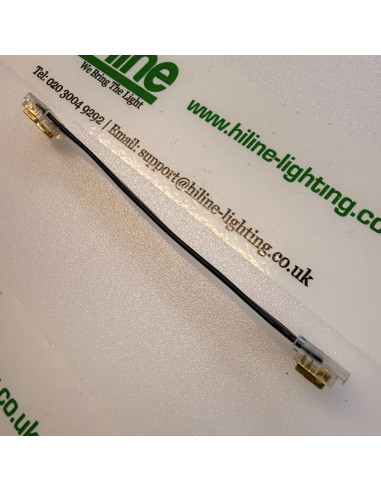

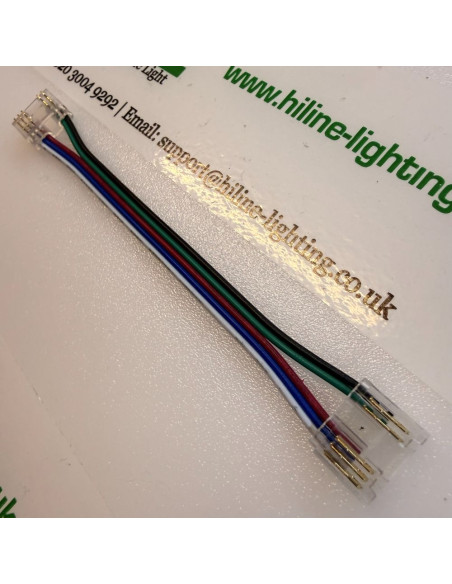

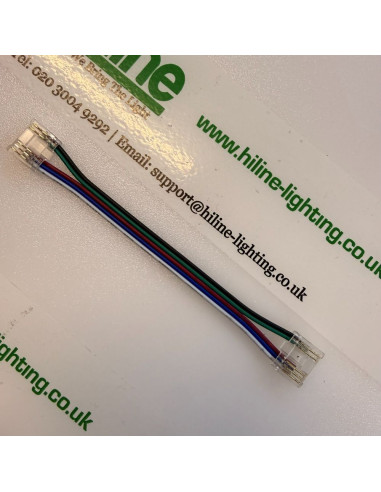

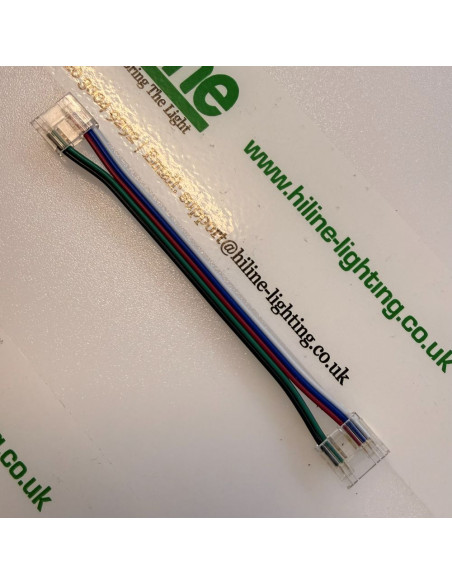

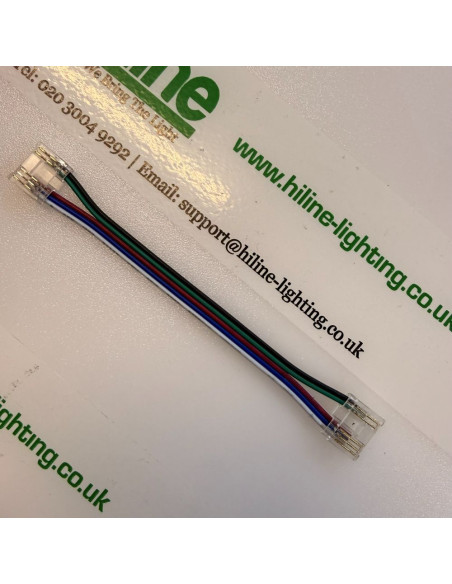

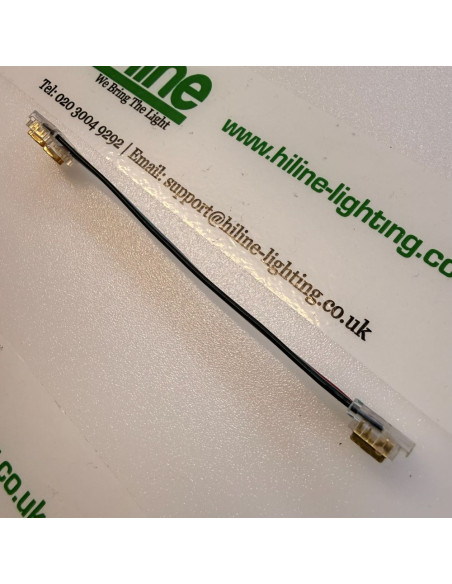

Introducing the RGBW COB LED Strip-to-Strip Connector, perfect for extending your 12mm RGBW COB LED strips. This 15cm connector is designed with a 5-pin, 4-channel configuration to ensure a stable and efficient connection between two LED strips. The connector is easy to use and requires no soldering, making it suitable for both DIY enthusiasts and professional installers. Constructed with high-quality materials, including AWG22 wires, it guarantees durability and reliable performance. Its IP20 rating makes it suitable for indoor use, providing protection against dust and physical contact.

Important Usage Note: This connector can handle a maximum current of 3.5A per contact. Due to the common anode contact, the total current through the connector is limited to 3.5A, which equates to a maximum load of 84 watts at 24V. For example, with a 15W/m COB RGBW LED strip, this connector can be used to join up to 5 metres of the strip. It should be used at the end of a 5m strip to connect another 5m strip but is not suitable for use at the beginning of a 10m length to join the remaining 9m.

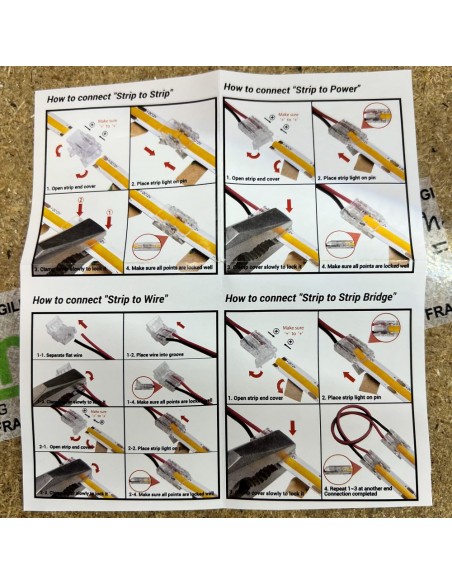

Caution for Installation: Inexperienced handling can damage the LED strip when using these connectors for COB strips. It is essential to test the connector beforehand to understand its proper use. Ensure the cut point copper of the section is correctly aligned with the clamping terminal. Incorrect insertion depth can cause a short circuit of some colours on the strip. Proper insertion depth is critical to avoid damaging the LED strip. Practice and testing will help achieve the correct technique.

Applications: This connector is ideal for various lighting projects, including residential, commercial, and retail environments where continuous and uninterrupted LED strip lighting is essential. It is perfect for creating dynamic and colourful lighting effects, enhancing the overall ambiance of any space.

Technical Specifications:

Connector Type: Strip-to-Strip

Compatible Strips: Hi-Line RGBW COB LED strips

Pin Configuration: 5 pins (4 channels)

Strip Width: 12mm

Connector Length: 15cm

IP Rating: IP20 (for indoor use)

Wire Gauge: AWG22

Current: 3.5A maximum per contact

Voltage: 3V to 24V

Enhance your lighting projects with the RGBW COB LED Strip-to-Strip Connector and enjoy the convenience and reliability of a superior connection solution.

Looking for Related Products or Accessories? Discover compatible products and accessories by clicking the 'Related Products' tab at the top of this product description on desktop, or just after this section on mobile devices. For detailed specifications, the 'Product Specification' tab is also available at the top of this description, offering immediate access to important product details. If you need technical data or installation guides, the 'Attachments' tab is located in the same area. To refine your search within any product category, the "REFINE BY" filter system is positioned on the left side of the screen on desktops and at the top of the page on mobiles, ensuring a seamless browsing experience.

Brand
Hi-Line
Connector type
strip to strip extension
Connector width
For 12mm COB Strips
Number of terminals
6 pin (RGB+Tunable White strips)
IP Rating
IP00 (Non-waterproof)
Voltage
3-24V DC
Width of strip
12mm
