  • 2 pin strip to strip 200mm extension for IP68 10mm LED tape
  • Supports high current LED strips
  • For 10mm IP68 single colour LED strips
  • This connector is also fully compatible with Hi-Line's 10mm IP68 COB LED Strips
HL-SC-C10-IP68-200C
68 Items In stock
Next working day delivery
£3.70
4.44
with VAT)
VAT excluded

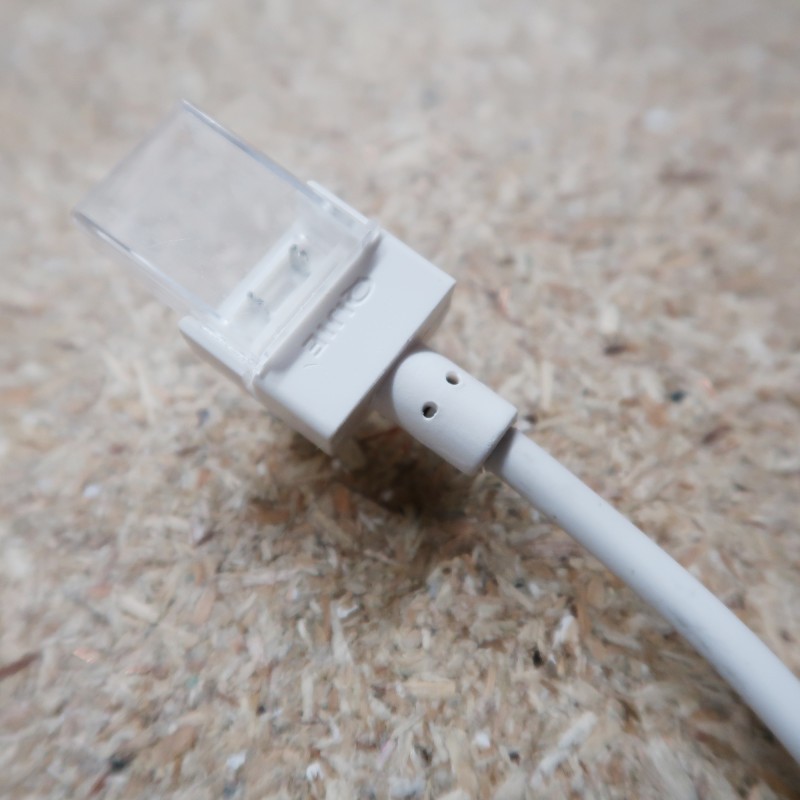

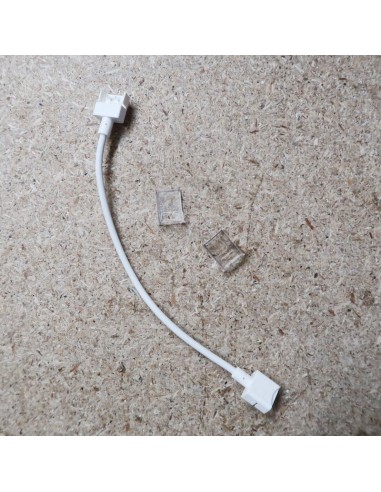

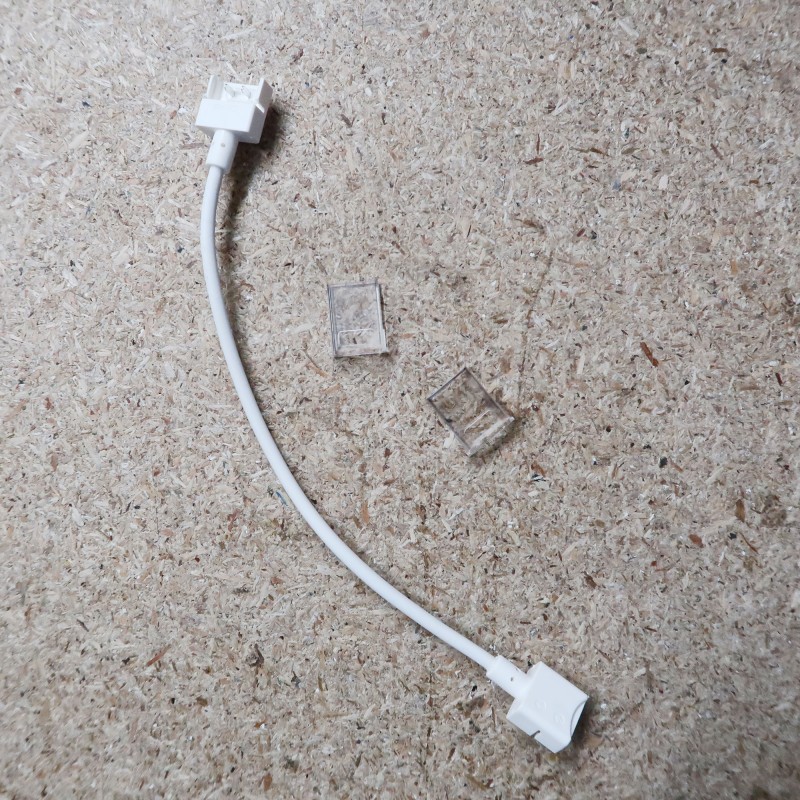

A strip to strip 200mm wire extension bridge designed for 10mm wide IP68 single colour LED strips

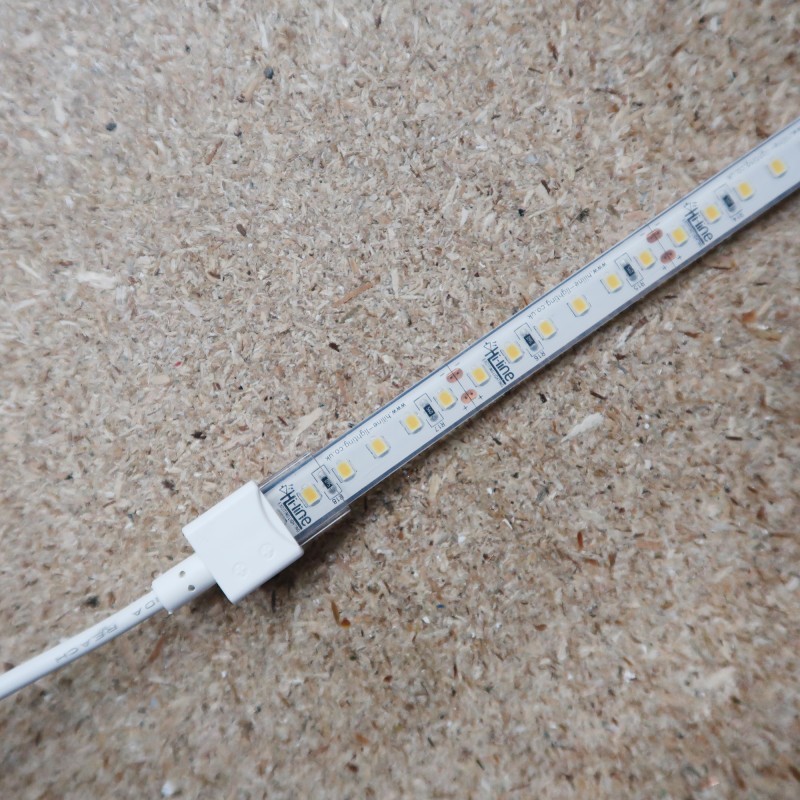

Cut and bridge IP68 waterproof LED strip without removing surface coating gel in seconds

This is a very high quality strip to strip 200mm wire bridge suitable only for IP68 single colour 10mm LED strips.

This connector is also fully compatible with Hi-Line's 10mm IP68 COB LED Strips (8mm pcb strip width / 10mm total width).

Connectors made of flame retardant material and supports high current LED strips!

The IP68 connectors are suitable for use with the gel coated (PU) 10mm IP68 LED strips (please note that this connector is not compatible with the IP00/20, nano PU LED strips, IP54/65 or IP67).


Attention: Although easy to use, IP68 connectors, specifically designed for IP68 LED strips, should still be applied carefully. We recommend leaving additional copper when cutting to ensure the connection is fully established. When installing, it is essential to use 'Specialized Silicone Sealant' designed for sealing electric and electronic components, to maintain the IP68 waterproof rating of your LED strip. Improper installation could result in the LED strip failing to power on or illuminate correctly, impacting its performance. For more information, please see the video on this page.

To find out more, please refer to the video included on this page.


Note: Please DO NOT close caps of the connector before strip to be in place, as it is not possible to re-use!


Technical Data

Size: L16mm X W18mm X H6mm

Extension wire lead length: 200mm bridge (2*20AWG/0.52mm2)

Colour: Transparent with white base

Number of Pin: 2

Suitable for Hi-Line's IP68 10mm single colour strips

Connection hardware: High precision brass(Cu)

Voltage range: 12-24V

Maximum current: 5A

Normal working temperature: ≦60°C

Working Temperature: -20°~+40°C

Rated Standard: IEC/EN 60664-1

Shell material: Polycarbonate

Flame Retardant: UL94v-0

Pin Surface Treatment: Tin-plating

Package: 1pcs

Brand
Hi-Line
Connector type
strip to strip extension
Connector width
For 10mm COB Strips
For 10mm SMD strips
Number of terminals
2 pin (single colour strips)
IP Rating
IP68 (Underwater waterproof)
Voltage
3-24V DC
Width of PCB
8mm
Width of strip
10mm
