This listing is for the White version of the wall-mounted rotary dimmer panel, specifically designed for tunable white (CCT) LED strips. It provides smooth and precise control over both warm and cool white channels. With its built-in controller, there’s no need for extra hardware—simply connect your 3-wire CCT LED strips directly to the unit for an easy and streamlined installation.
Key Features:
2-Channel Control: Supports two independent channels—one for warm white and one for cool white—allowing you to fine-tune the colour temperature by mixing these channels.
High Power Output: Each channel supports up to 5A, meaning the controller can handle a total load of 10A. For 24V strips, this equates to a maximum output of 240W. It's recommended to stay at least 20% below the maximum rating to ensure long-term reliability and efficiency.
Wide Voltage Range: Operates with a 12-48V DC input, compatible with non-dimmable LED drivers. The required input voltage depends on the operating voltage of your LED strips (12V or 24V).
Precise Control: The rotary knob offers smooth adjustments with 256 levels of dimming from 0 to 100%, without flickering.
PWM Frequency Options: The controller features selectable PWM frequencies (2KHz or 8KHz), making it suitable for various installations, including those that require flicker-free lighting for video recording.

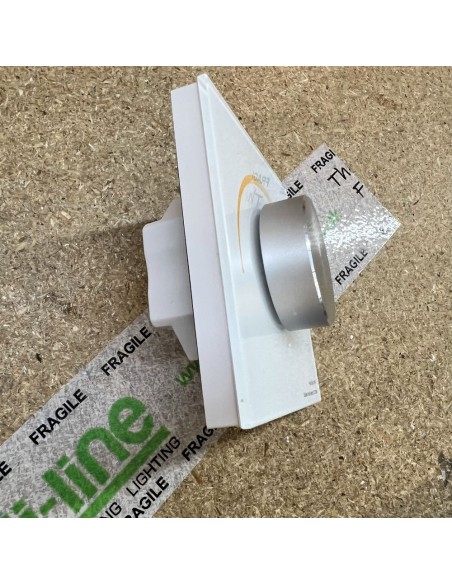

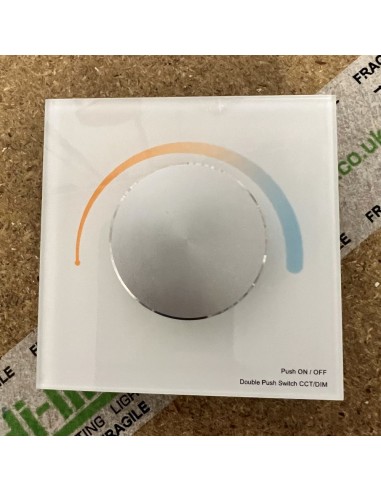

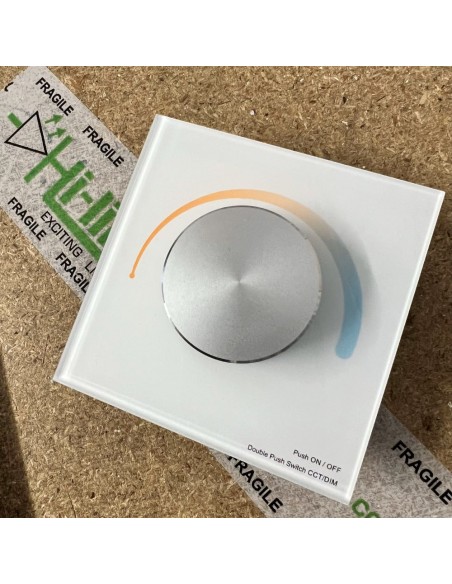

Compact & Elegant Design: The sleek glass panel in White blends seamlessly into modern interiors, providing a stylish look that complements any décor.
Safety Features: Built-in over-heat, over-load, and short-circuit protection ensures the controller recovers automatically, providing peace of mind during operation.
Installation Tips:
Ensure the total power consumption of your LED strips does not exceed the controller's maximum capacity (240W for 24V systems). It’s advisable to design installations with at least 20% headroom to accommodate voltage drops, ventilation, and other potential losses.
Use a non-dimmable LED driver matched to the voltage requirements of your LED strips (12V or 24V).

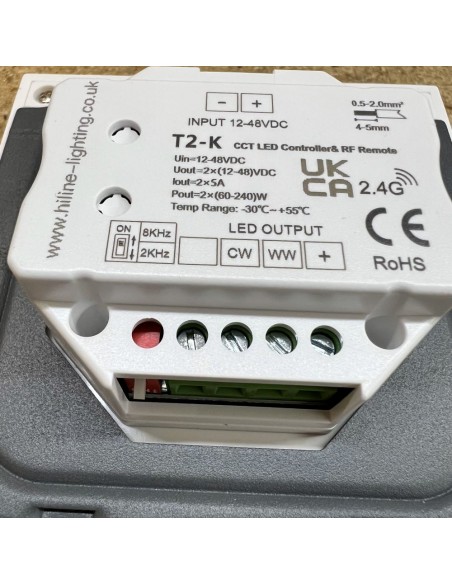

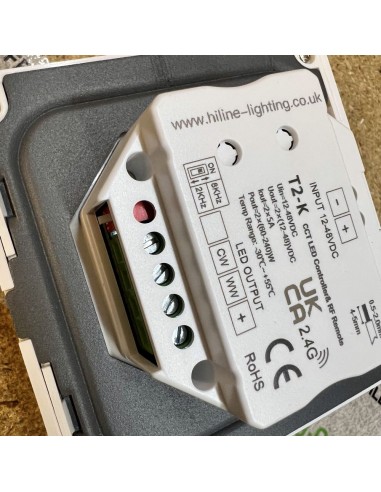

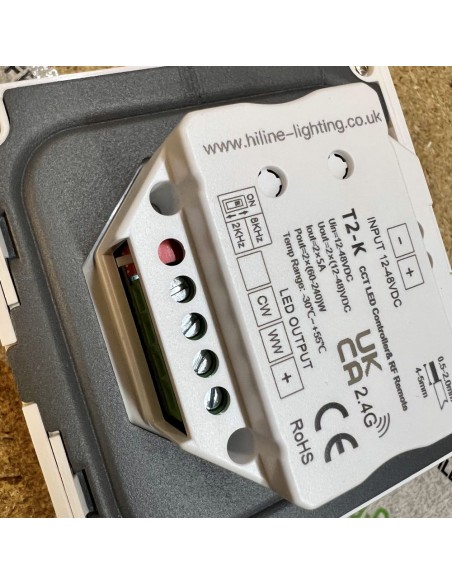

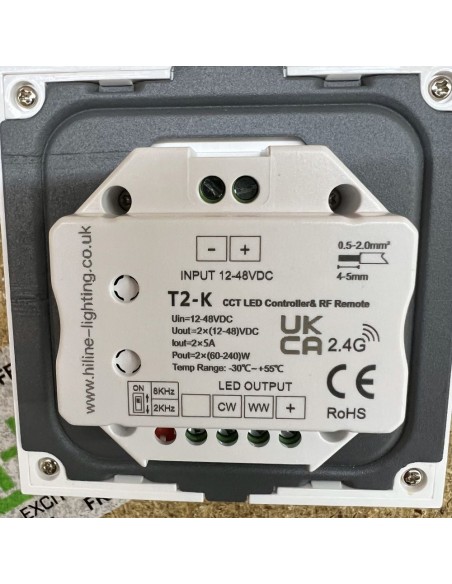

Technical Specifications:
Input Voltage: 12-48V DC
Output Channels: 2CH, 5A per channel
Maximum Load: 240W for 24V CCT LED strips
PWM Frequency: 2KHz or 8KHz (selectable)
Dimensions: L112mm x W112mm x H60mm
Operating Temperature: -30°C to +55°C
Safety Certifications: UKCA, CE, EMC, RED (Radio Equipment Directive), EN 62368-1:2020 + A11:2020
Warranty: 3 years standard, extendable to 5 years with our extended warranty option.

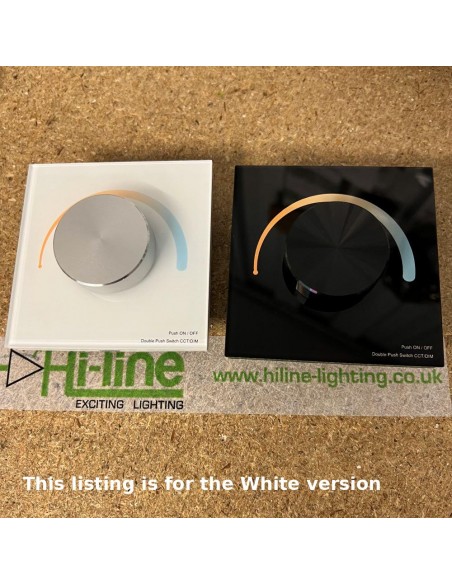

Looking for the Black version?
A separate listing is available for the Black version of this product. You can find it under the related products section or by searching in the tunable white LED strip controllers category.
