Linkable - Modular Design - No Soldering - No cutting - No DIY wiring - Ready to use Mini LED Aluminium profile modules without spotting
Power connector lead should be purchased separately

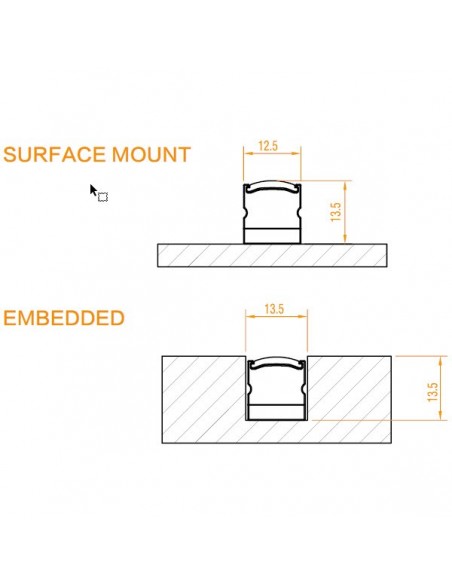

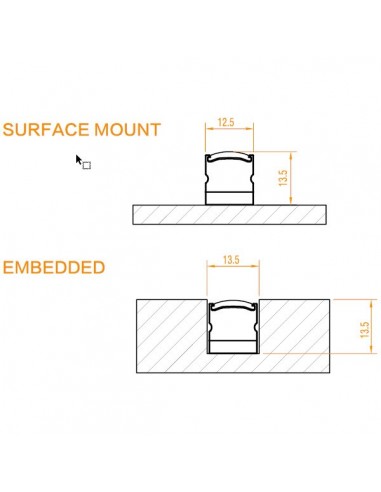

A neat and simple linkable plug and play surface or recessed mount under cabinet LED light which comes ready with a warm 3000K or cool white 6500K solid pcb powered by Epistar LEDs, slim aluminium profile and diffuser.

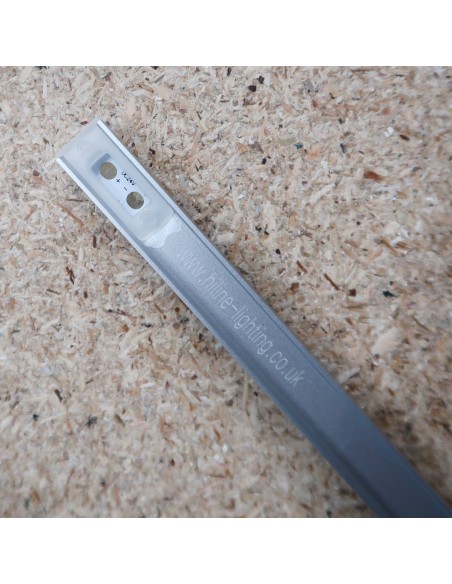

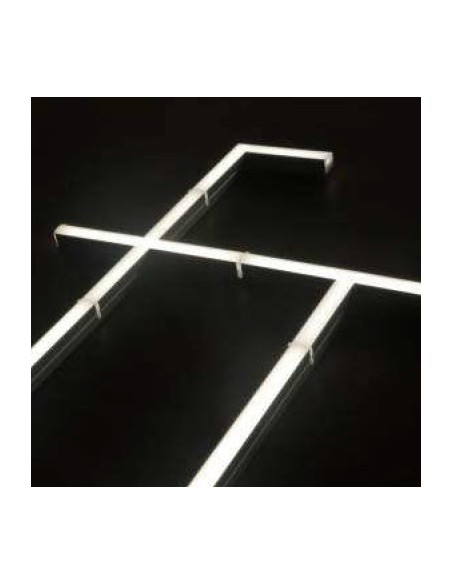

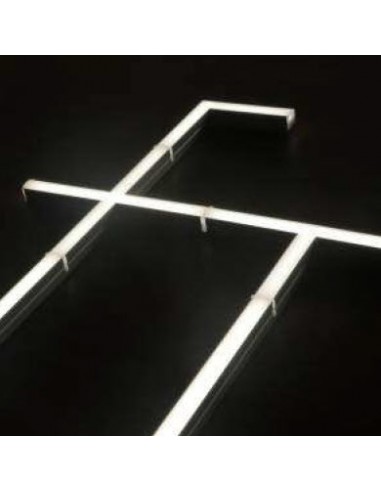

Every LED profile fitting is supplied ready with built-in plug and play socket (Power connector lead should be purchased separately), optional power connectors can be purchased together with many other plug and play accessories such us extension cable connectors seamless straight connector joints, T-Shape / L-shape or cross shape cabinet LED light connectors. Same product is available in six lengths starting from 100mm up to 1123mm.
These modules can be installed via metal clips. You can purchase these in packs of TWO and THREE.

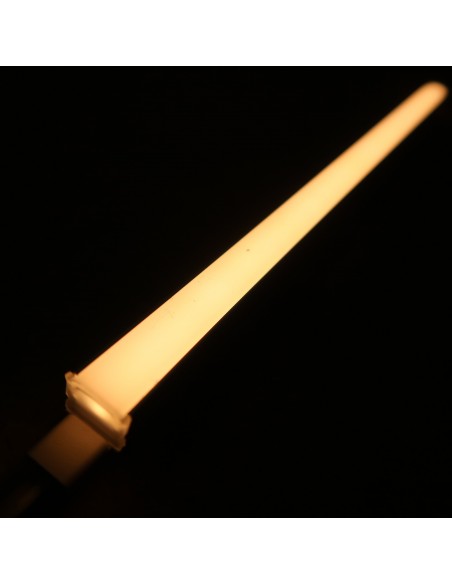

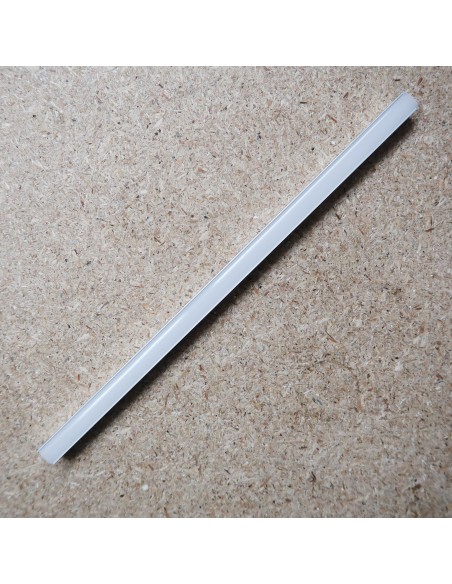

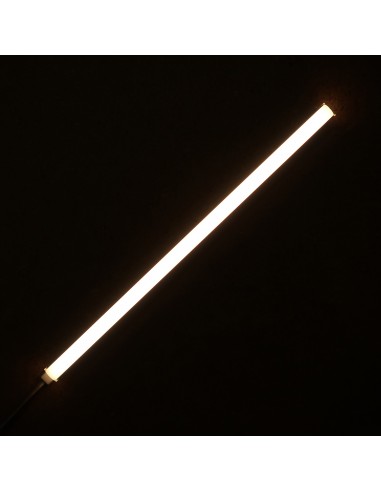

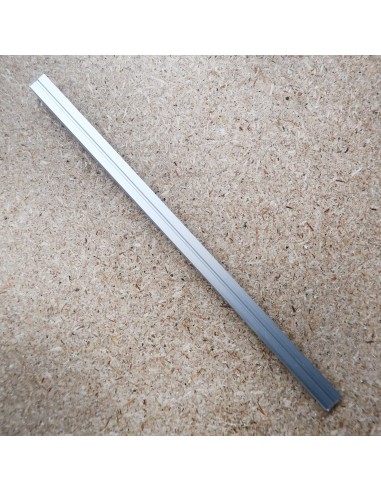

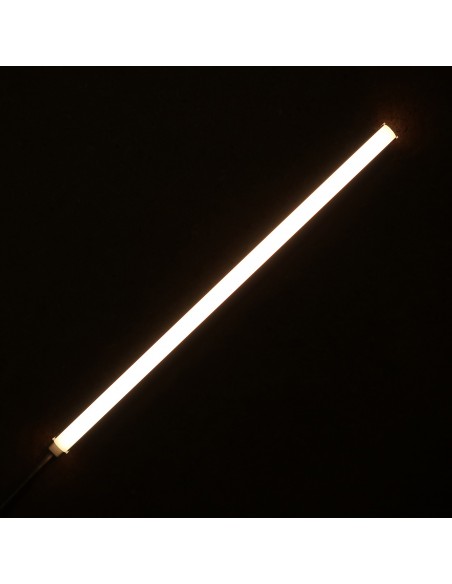

This listing is for 285mm - warm white:

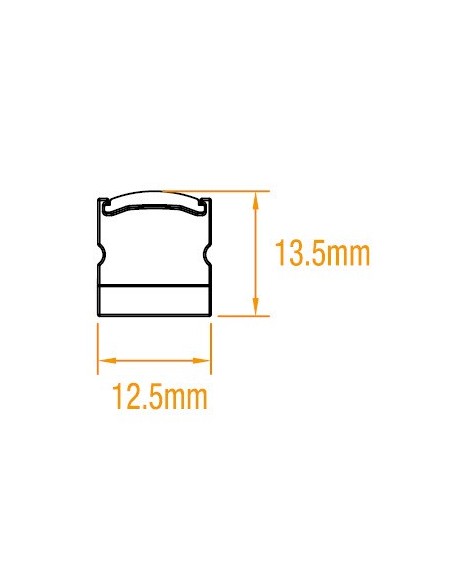

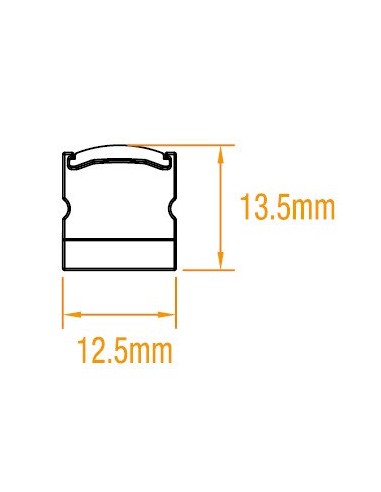

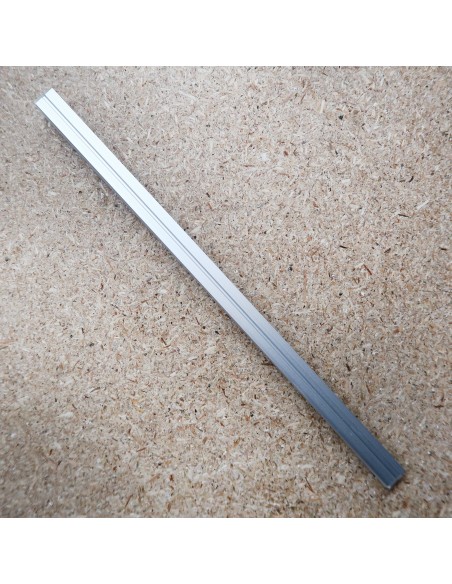

285mm 3000K slim linear profile batten 24V/3W/195lm W12.5 x H13.5mm - 66 Epistar LEDs CRI>90 - IP20
Note: This product is rated at 24V DC, additional power supply is required. You can power up to 10 linear meters in series connection (one power lead to be installed at any of the 2 ends of the circuit). Power connector lead should be purchased separately.
Optional lengths 3000 or 6500K (available to buy separately):
100mm slim linear profile batten 24V/1W/65lm W12.5 x H13.5mm - 24 Epistar LEDs CRI>90 - IP20
192mm slim linear profile batten 24V/2W/130lm W12.5 x H13.5mm - 42 Epistar LEDs CRI>90 - IP20
565mm slim linear profile batten 24V/6W/390lm W12.5 x H13.5mm - 132 Epistar LEDs CRI>90 - IP20
845mm slim linear profile batten 24V/9W/580lm W12.5 x H13.5mm - 198 Epistar LEDs CRI>90 - IP20
1123mm slim linear profile batten 24V/12W/750lm W12.5 x H13.5mm - 264 Epistar LEDs CRI>90 - IP20
Optional LED modules 3000 or 6500K (available to buy separately):
L-Shape plug and play LED module 12.5 x 13 x 71mm
X-Shape plug and play LED module 12.5 x 13 x 65mm
T-Shape plug and play LED module 12.5 x 13 x 65mm
Plug and Play connectors (available to buy separately):
Seamless 180 degrees connector joint 41 x 7.5mm
Power connector with cable 26.5 x 7.5mm
Extension cable connector 26.5 x 7.5mm
Ideal for kitchen units, pelmets furniture, open plan offices, classrooms, corridors and retail premises
3 years Warranty
