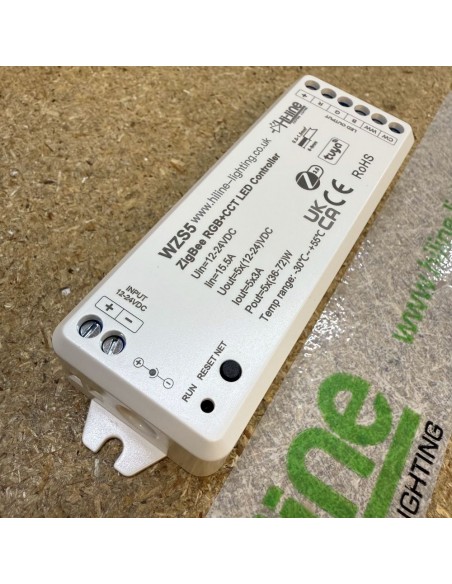

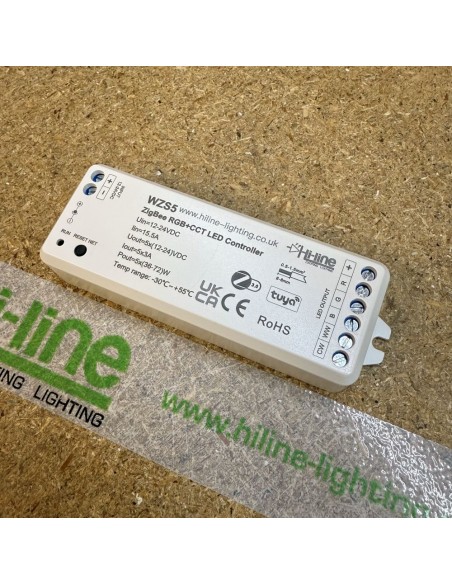

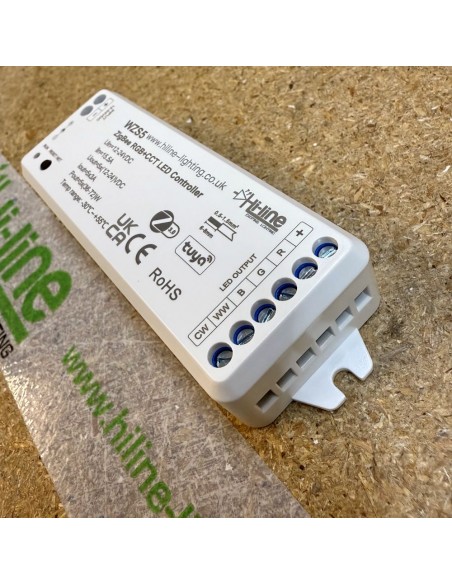

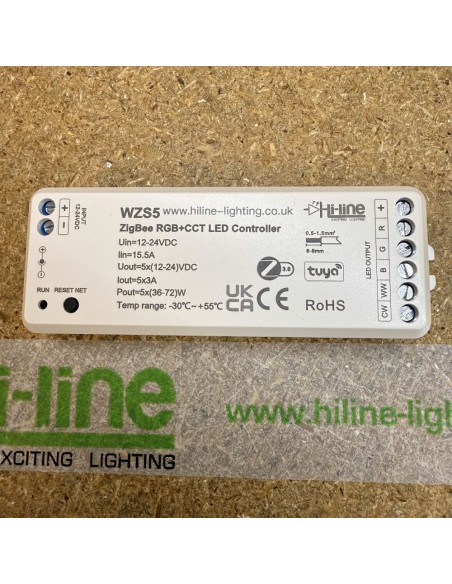

Advanced Zigbee 3.0 RGB+CCT LED Controller (WZS5)

The WZS5 Advanced Zigbee 3.0 RGB+CCT LED Controller is a cutting-edge solution designed specifically for 5-channel RGB+CCT LED strips. This controller is tailored for professional installers with a solid understanding of Zigbee 3.0 ecosystems. If you're unfamiliar with Zigbee technology, this controller may not be the right choice for you. For simpler, user-friendly configurations, we recommend exploring our Wi-Fi controller range, which offers straightforward setup and broader compatibility with various strip types.

Key Features:

• Pure Zigbee 3.0 Compatibility: Designed exclusively for Zigbee networks, ensuring seamless communication and precise control.
• Exclusive for RGB+CCT Strips: Fully compatible only with 5-channel RGB+CCT LED strips. Not suitable for single colour, RGB-only, RGBW, or CCT (dual white) configurations.
• Advanced Lighting Control: Offers smooth dimming with 65,536 grey levels, enabling precise brightness adjustments and colour mixing.
• Professional Grade: Built for advanced users and skilled installers; not recommended for beginners.

Technical Specifications:

• Input Voltage: DC 12V-36V
• Output Channels: 5 (RGB + Warm White + Cool White)
• Output Current: 3A per channel, 15A total
• Output Power:
  • 12V: 36W per channel, 180W total
  • 24V: 72W per channel, 360W total
• PWM Frequency: 2kHz
• Operating Temperature: -30°C to +55°C
• IP Rating: IP20 (indoor use only)
• Dimensions: 120mm x 43mm x 27mm
• Certifications: UKCA, CE, EMC, RED

Important Notes:

• This controller cannot be paired directly with any 2.4GHz RF product, such as remote controls or wall panels. However, it can integrate with broader systems when used with the HL-WG-Z Zigbee-to-Wi-Fi Gateway, enabling connectivity between Zigbee and Wi-Fi networks.
• Compatible only with 5-channel RGB+CCT LED strips. Not suitable for single colour, RGB-only, RGBW, or CCT (dual white) configurations.
• If you require a more versatile or hybrid solution, explore our Wi-Fi controller range, which provides flexible and user-friendly options.
• The HL-WG-Z Gateway and this controller are intended for advanced users capable of configuring complex systems. Support for such setups is limited, and users may need to rely on their expertise.

Installation and Accessories:

For wiring diagrams and technical data, refer to the Attachments tab. Compatible accessories, including gateways and power supplies, are listed in the Related Products tab. Ensure proper power supply selection based on your LED strip’s voltage and current requirements.
